Residual current circuit breaker P 302 40 A 30 MA A 411560

local index:

ARB018LEGR

Catalog number:

411560

EAN code:

3414970352743

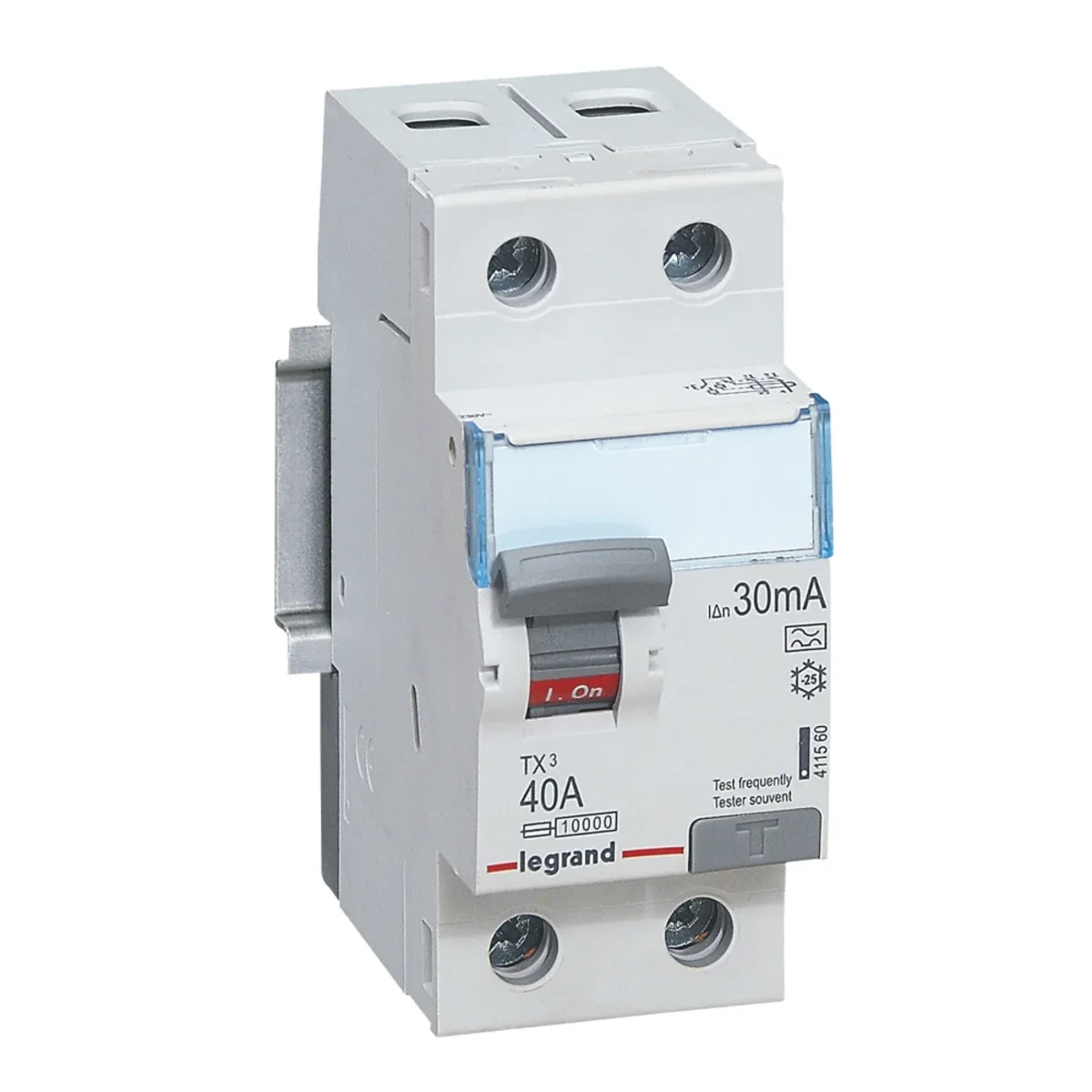

Residual current circuit breaker P 302 40 A 30 MA A

Click on the photo to enlarge

Manufacturer: LEGRAND

Trigger type: AND

See full description

Price:

238,13 zł

gross / pcs.

(including VAT 23%)

up to 2 weeks

On request

Quantity pcs.

(multiplicity:

)

Add to inquiry

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

Rated conventional short-circuit current Inc = 10000 A
According to IEC 61008 - 1
Types
- AC: detects alternating leakage currents
- A: detects alternating leakage currents, distorted alternating currents with DC component
- Hpi: detects alternating, distorted alternating currents with a DC component
and provides high resistance to unnecessary tripping during transients

Product parameters

Bipolar - 230V~< br>Type A
Rated residual current: 30 mA
Rated current: 40 A
Width in 17.5 mm modules: 2

Technical data

Trigger type

AND

PKWIU

27.12.23.0

Other technical data

Number of poles

2
Rated current

40 A
Rated insulation voltage Ui

250 V
Mounting method

DIN rail
Selective protection

No
Short-circuit breaking capacity (Icw)

10 kA
Voltage type

AC
Frequency

50 Hz
Degree of protection (IP)

IP20
Built-in depth

44 mm
Pollution degree

2
Connectable conductor cross section solid-core

0.75 ... 50 mm²
RAL-number (similar)

7035

Rated voltage

230 V
Rated fault current

0.03 A
Rated impulse withstand voltage Uimp

4 kV
Leakage current type

A
Short-time delayed tripping

No
Surge current capacity

0.25 kA
With interlocking device

Yes
Additional equipment possible

Yes
Width in number of modular spacings

2
Ambient temperature during operating

-25 ... 60 °C
Connectable conductor cross section multi-wired

0.75 ... 35 mm²
Colour

Grey
Explosion-proof

No

Manufacturer details

Manufacturer

Legrand Polska Sp. z o.o.
Address

57-200 Ząbkowice Śląskie Waryńskiego 20 Polska
E-mail

info@legrand.com.pl

Bulk packaging

A kind of package	Pudełko	Karton	Paleta
Quantity	1 pcs.	24 pcs.	432 pcs.
Weight (kg)	0,198	4,900	88,200
Volume (m3)	0,000	0,012	0,432
Width (m)	0,086	0,200	1,200
Length (m)	0,042	0,197	0,360
Depth (m)	0,108	0,296	1,000
