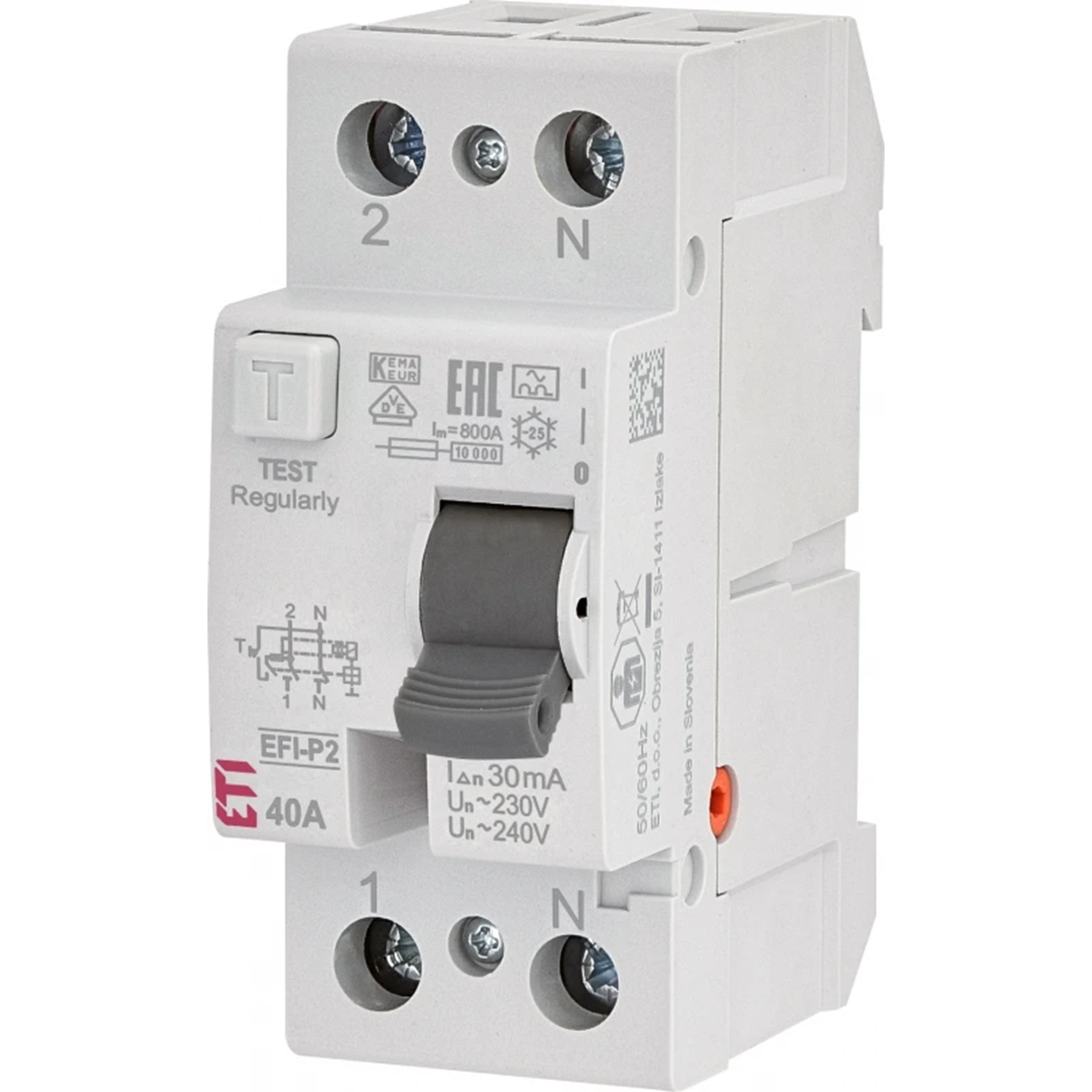

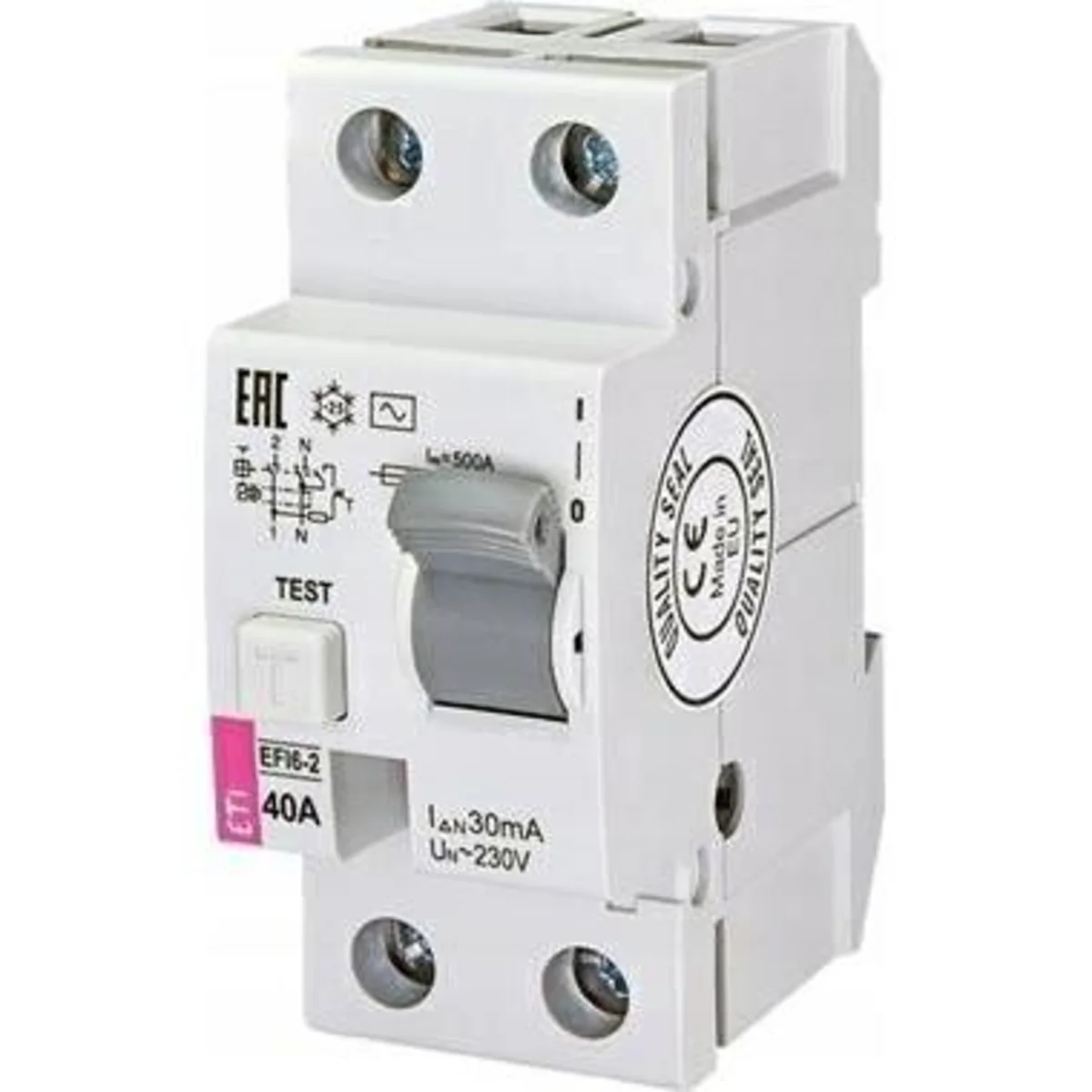

Residual current circuit breaker EFI6-P2 AC 40/0.03 6kA 2-pole 002061252

Name: Residual current circuit breaker EFI6-P2 AC 40/0.03 6kA 2-pole
Brand: ETI POLAM
SKU: ARP045ETIP
Price: 32.04 PLN
Availability: InStock

local index:

ARP045ETIP

Catalog No:

002061252

EAN code:

3838895866305

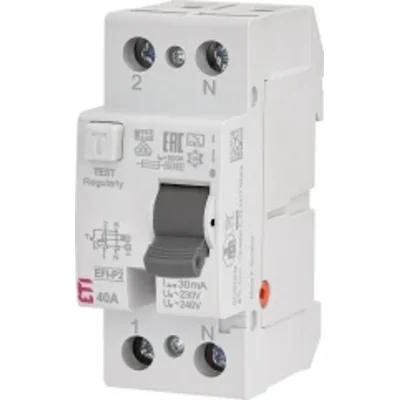

Residual current circuit breaker EFI6-P2 AC 40/0.03 6kA 2-pole

Click on the photo to enlarge

Manufacturer: ETI POLAM

Rated frequency [Hz]: 50/60

Installation: On the TH-35 rail

Rated voltage [V]: 230

See full description

Price:

32,04 €

gross / pcs.

(including VAT 23%)

Accessible 19 pcs.

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging Files to download

Product description

Residual current circuit breaker with rated breaking capacity 6kA.

Number of poles 1+N
Clamp capacity: 1 -25 mm2
Rated operating current: 0.03IDn (mA)
Impact current: 0.4kA

Technical data

Rated frequency [Hz]

50/60
Rated voltage [V]

230
Level of security

IP20

Installation

On the TH-35 rail
Rated current [A]

40
PKWIU

27.12.22.0

Other technical data

Number of poles

2
Rated fault current

30 A
Rated impulse withstand voltage Uimp

6 kV
Leakage current type

AC
Frequency

50/60 Hz
Width in number of modular spacings

2
Ambient temperature during operating

-25 ... 55 °C
Connectable conductor cross section solid-core

1 ... 25 mm²

Rated current

40 A
Rated insulation voltage Ui

440 V
Mounting method

DIN rail
Short-circuit breaking capacity (Icw)

6 kA
Degree of protection (IP)

IP20
Built-in depth

68 mm
Connectable conductor cross section multi-wired

1 ... 25 mm²

Bulk packaging

A kind of package	Pudełko	Pudełko
Quantity	1 pcs.	54 pcs.
Weight (kg)	0,187	11,204
Volume (m3)	0,000	0,017
Width (m)	0,039	0,233
Length (m)	0,078	0,253
Depth (m)	0,092	0,287
