Residual current block VigiC120-4-300-SI 4-pole 300mA type SI A9N18598

local index:
ARB006SCHN
Catalog No:
A9N18598
EAN code:
3606480376726
Price:
263,48 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

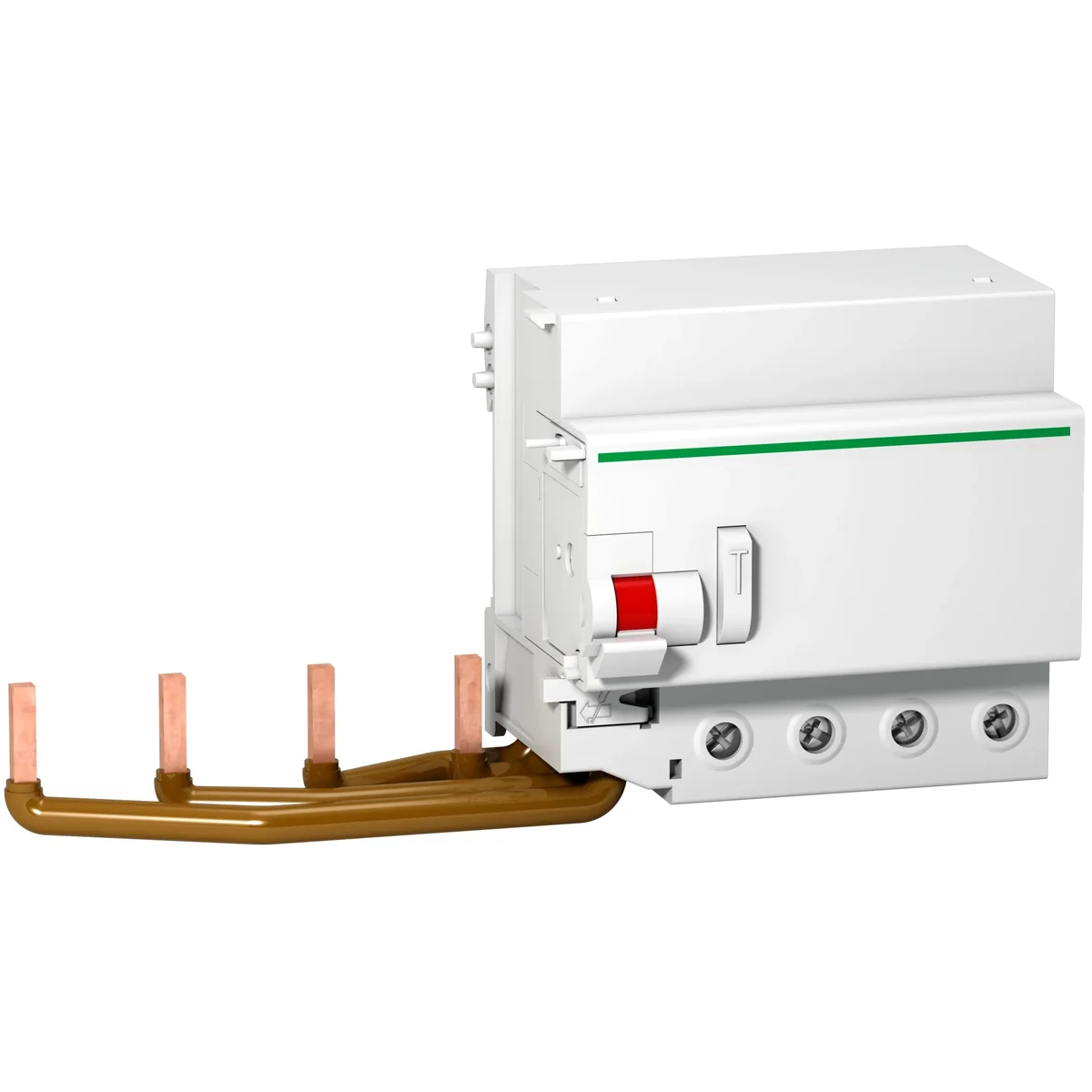

Residual current block VigiC120-4-300-SI 4-pole 300mA type SI

Technical data

  • Color
    White
  • PKWIU
    27.12.23.0

Other technical data

  • Nominal voltage
    230 ... 415 V
  • Rated fault current adjustable
    No
  • Max. delay time
    0 ms
  • Number of poles
    4
  • Surge current capacity
    3 kA
  • Rated insulation voltage Ui
    500 V
  • Connectable conductor cross section solid-core
    1 ... 50 mm²
  • Anti-nuisance tripping version
    Yes
  • Degree of protection (IP)
    IP20
  • Ambient temperature during operating
    -25 ... 60 °C
  • Nominal current
    125 A
  • Rated fault current
    0.3 ... 0.3 A
  • Delay adjustable
    No
  • Leakage current type
    A
  • Frequency
    50 Hz
  • Rated impulse withstand voltage Uimp
    6 kV
  • Connectable conductor cross section multi-wired
    1 ... 35 mm²
  • With interlocking device
    No
  • Pollution degree
    3
