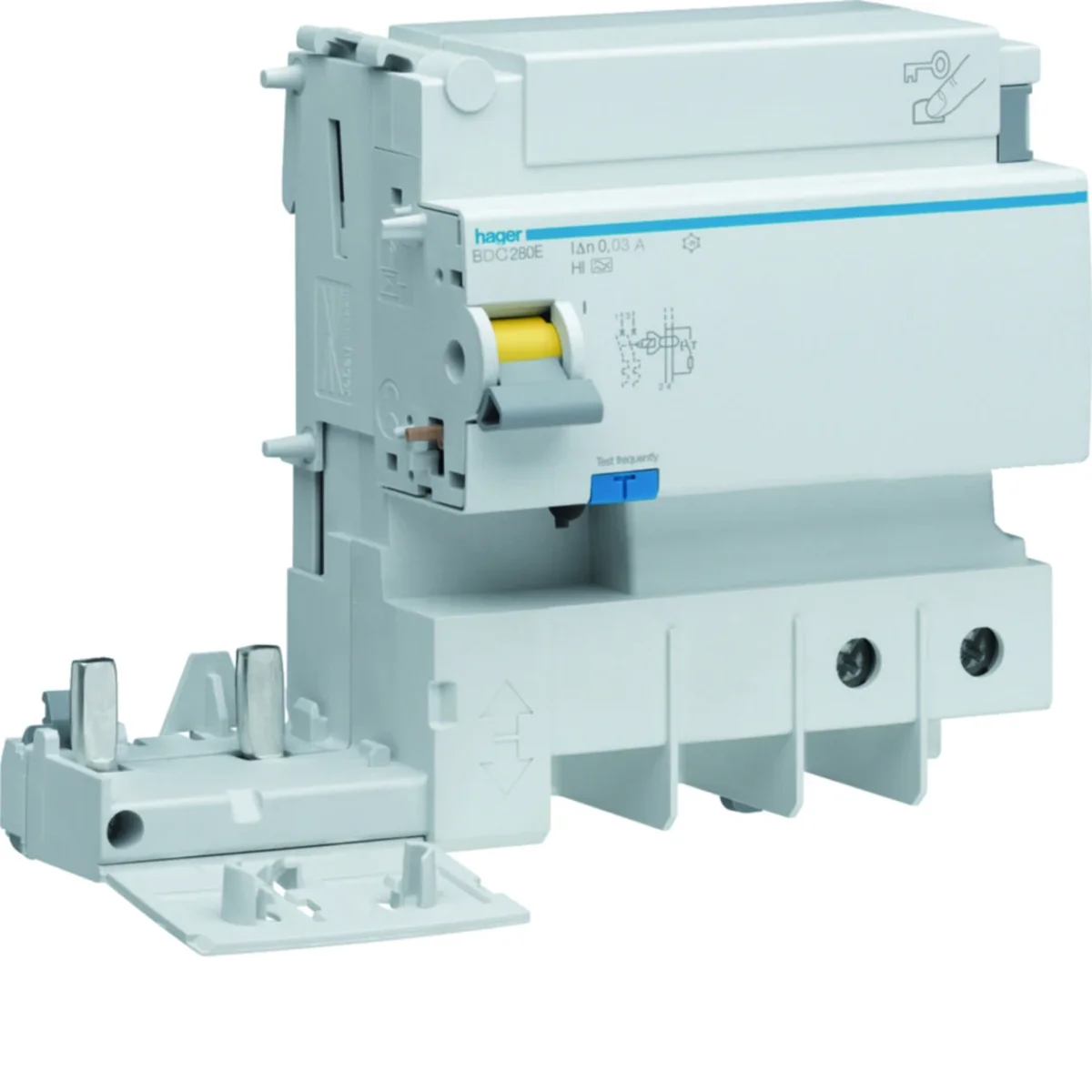

Residual current block for MCB series HMxxxx 1P+N 125A/30mA Type AC BDC280E
local index:
ARB084HAGE
Catalog No:
BDC280E
EAN code:
3250611340003
Price:
331,36 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Residual current block for HMxxxx series MCBs.
- 1P+N
- 125A/30mA
- type AC
Technical data
-
Rated frequency [Hz]50
-
Number of poles2
-
Rated insulation voltage [V]500
-
Rated current [A]125
-
Width [mm]160
-
Electrical endurance (number of cycles)1000
-
Operating temperature range [°C]from -25 to 60
-
Number of modules6
-
Rated current at 30°C [A]125
-
Rated current at 50°C [A]112.4
-
Rated current at 70°C [A]99.4
-
RCD typeAC
-
Wire cross-section (cord) [mm²]10 - 50
-
PKWIU27.12.23.0
-
Depth [mm]69
-
Tightening torque [Nm]3.5
-
Differential current [mA]thirty
-
power loss [W]7.5
-
Height [mm]103
-
Mechanical durability (number of cycles)7000
-
Rated switching voltage [V]230/400
-
Rated current at 20°C [A]125
-
Rated current at 40°C [A]118.9
-
Rated current at 60°C [A]105.6
-
storage temperature [°C]from -25 to 70
-
Rated surge voltage [V]6000
-
Conductor cross-section (wire) [mm²]10 - 70
Other technical data
-
Nominal voltage240 ... 240 V
-
Rated fault current adjustableNo
-
Max. delay time0 ms
-
Number of poles2
-
Frequency50 Hz
-
Rated impulse withstand voltage Uimp6 kV
-
Connectable conductor cross section multi-wired10 ... 50 mm²
-
Degree of protection (IP)IP20
-
Ambient temperature during operating-25 ... 60 °C
-
Nominal current125 A
-
Rated fault current0.03 ... 0.03 A
-
Delay adjustableNo
-
Leakage current typeAC
-
Rated insulation voltage Ui500 V
-
Connectable conductor cross section solid-core10 ... 70 mm²
-
Anti-nuisance tripping versionNo
-
Pollution degree3
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 8 pcs. | 192 pcs. |
| Weight (kg) | 0,585 | 0,678 | 5,786 | 161,864 |
| Width (m) | 0,160 | 0,138 | 0,323 | 0,800 |
| Length (m) | 0,103 | 0,087 | 0,252 | 1,158 |
| Depth (m) | 0,075 | 0,234 | 0,377 | 1,200 |
