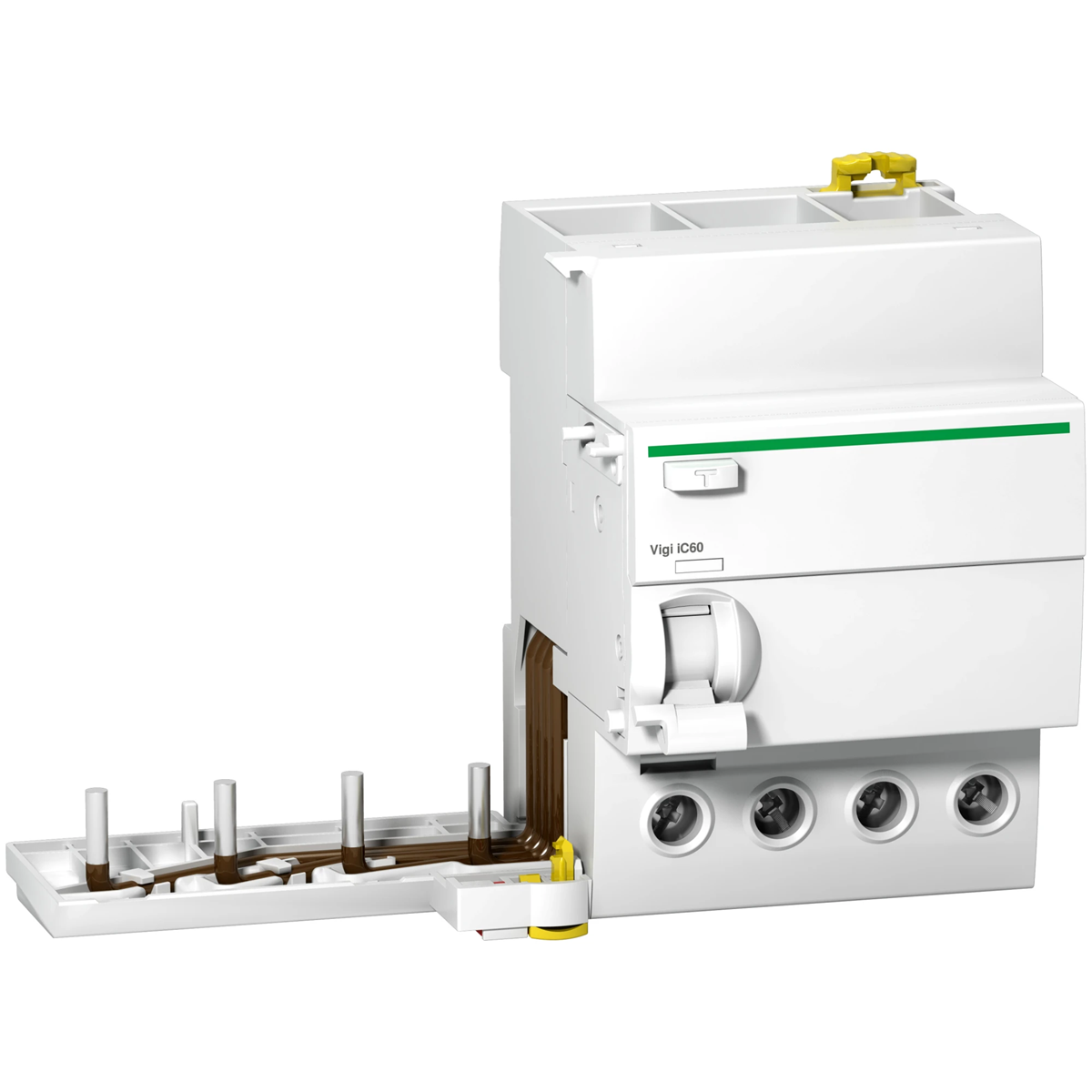

Residual current block 63A 4-pole 300mA type SI-S A9W35463
local index:
ARP087SCHN
Catalog No:
A9W35463
EAN code:
3606480443732
Manufacturer:
SCHNEIDER ELECTRIC
Height [mm]: 91
Price:
166,10 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Residual current block 63A 4-pole 300mA type SI-S
Technical data
-
Height [mm]91
-
PKWIU27.12.23.0
Other technical data
-
Nominal voltage400 ... 415 V
-
Rated fault current adjustableNo
-
Max. delay time130 ms
-
Number of poles4
-
Surge current capacity3 kA
-
Rated insulation voltage Ui500 V
-
Connectable conductor cross section solid-core1 ... 35 mm²
-
Anti-nuisance tripping versionYes
-
Degree of protection (IP)IP20
-
Ambient temperature during operating25 ... 60 °C
-
Nominal current63 A
-
Rated fault current0.3 ... 0.3 A
-
Delay adjustableNo
-
Leakage current typeA
-
Frequency50/60 Hz
-
Rated impulse withstand voltage Uimp6 kV
-
Connectable conductor cross section multi-wired1 ... 25 mm²
-
With interlocking deviceNo
-
Pollution degree3
