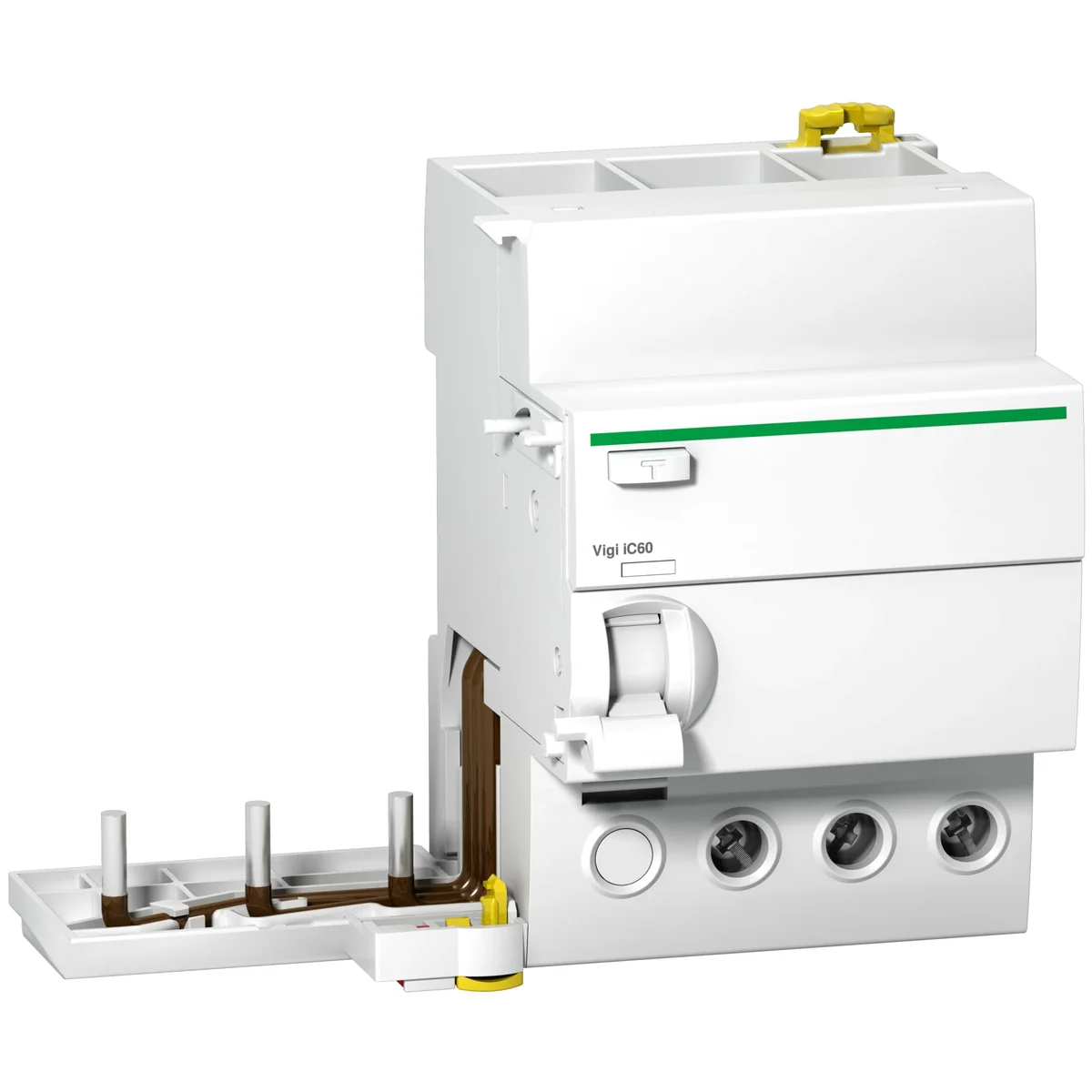

Residual current block 63A 3-pole 30mA type SI A9W31363

local index:
ARP078SCHN
Catalog No:
A9W31363
EAN code:
3606480443718
Manufacturer: SCHNEIDER ELECTRIC
Height [mm]: 91
Price:
260,76 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Residual current block 63A 3-pole 30mA type SI

Technical data

  • Height [mm]
    91
  • PKWIU
    27.12.23.0

Other technical data

  • Nominal voltage
    400 ... 415 V
  • Rated fault current adjustable
    No
  • Max. delay time
    0 ms
  • Number of poles
    3
  • Surge current capacity
    3 kA
  • Rated insulation voltage Ui
    500 V
  • Connectable conductor cross section solid-core
    1 ... 35 mm²
  • Anti-nuisance tripping version
    Yes
  • Degree of protection (IP)
    IP20
  • Ambient temperature during operating
    25 ... 60 °C
  • Nominal current
    63 A
  • Rated fault current
    0.03 ... 0.03 A
  • Delay adjustable
    No
  • Leakage current type
    A
  • Frequency
    50/60 Hz
  • Rated impulse withstand voltage Uimp
    6 kV
  • Connectable conductor cross section multi-wired
    1 ... 25 mm²
  • With interlocking device
    No
  • Pollution degree
    3
