Electrical apparatus
RCDs
Electric shock switches
Residual current block 63A 3-pole 300mA type A A9W24363
local index:
ARP074SCHN
Catalog No:
A9W24363
EAN code:
3606480443503
Click on the photo to enlarge
Manufacturer:
SCHNEIDER ELECTRIC
Height [mm]:
91
See full description
Price:
210,26 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Files to download
Product description

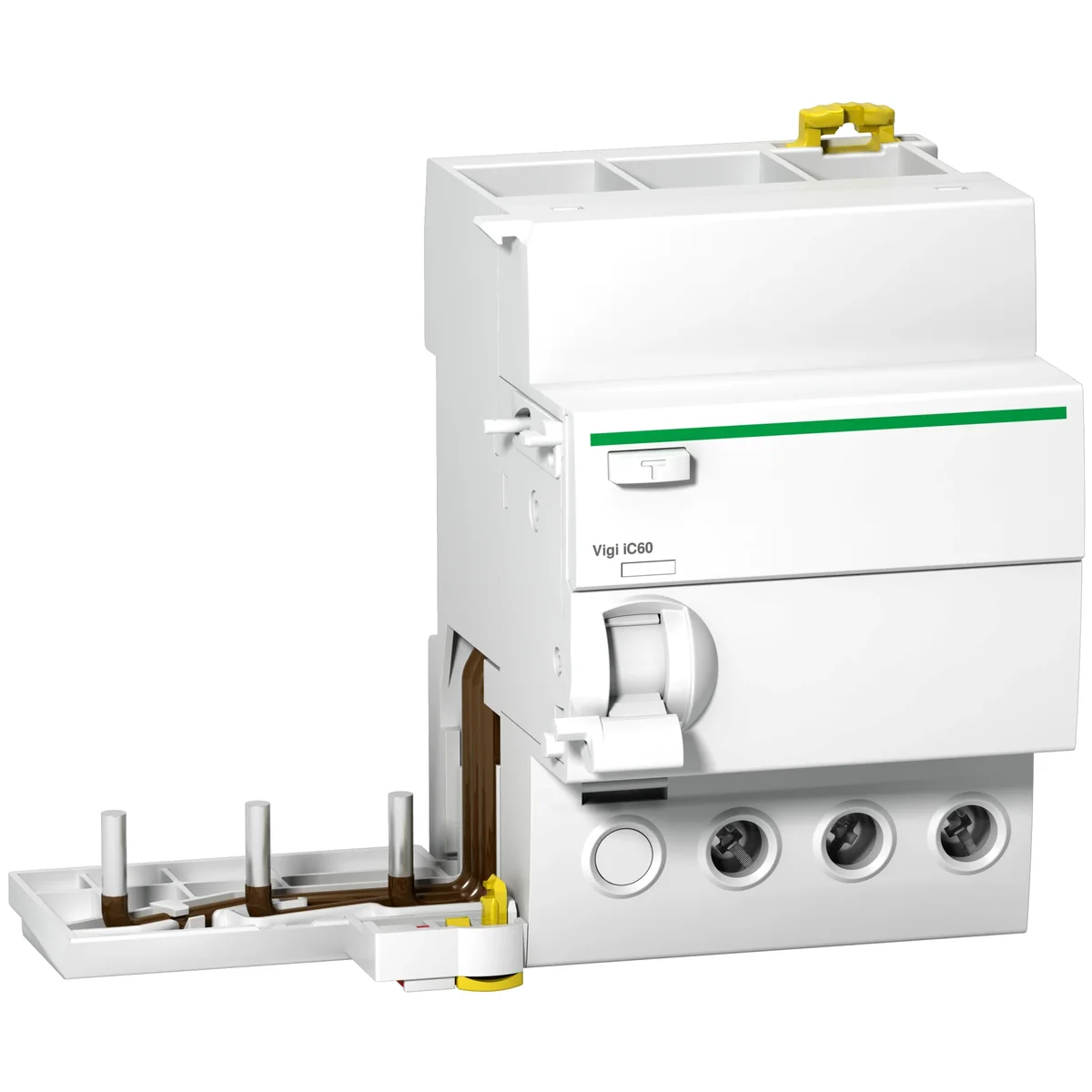

Residual current block 63A 3-pole 300mA type A
Technical data
Height [mm]
91
PKWIU
27.12.23.0
Other technical data
Nominal voltage
400 ... 415 V
Rated fault current adjustable
No
Max. delay time
0 ms
Number of poles
3
Surge current capacity
0.25 kA
Rated insulation voltage Ui
500 V
Connectable conductor cross section solid-core
1 ... 35 mm²
Anti-nuisance tripping version
No
Degree of protection (IP)
IP20
Ambient temperature during operating
25 ... 60 °C
Nominal current
63 A
Rated fault current
0.3 ... 0.3 A
Delay adjustable
No
Leakage current type
A
Frequency
50/60 Hz
Rated impulse withstand voltage Uimp
6 kV
Connectable conductor cross section multi-wired
1 ... 25 mm²
With interlocking device
No
Pollution degree
3
Files to download
ENVPEP1409017_V2.pdf
EU decl - FD160225017A - RCD_Vigi iC60 Surya Biconnect.pdf
See more >>
