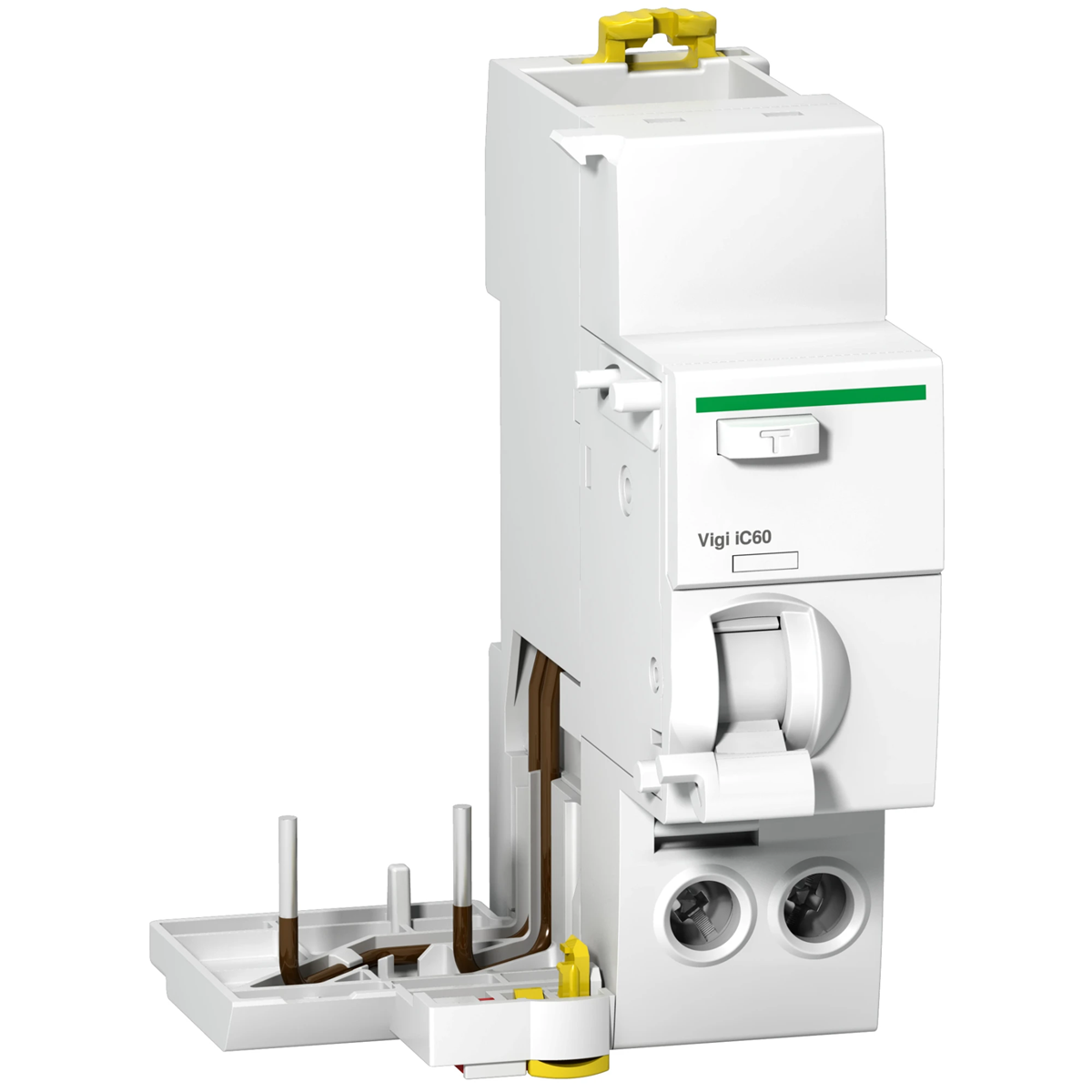

Residual current block 25A 2-pole 30mA type A A9W21225

local index:
ARP050SCHN
Catalog No:
A9W21225
EAN code:
3606480443404
Manufacturer: SCHNEIDER ELECTRIC
Height [mm]: 91
Price:
166,04 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

Residual current block 25A 2-pole 30mA type A

Technical data

  • Height [mm]
    91
  • PKWIU
    27.12.23.0

Other technical data

  • Nominal voltage
    230 ... 415 V
  • Rated fault current adjustable
    no
  • Max. delay time
    0 ms
  • Number of poles
    2
  • Surge current capacity
    0.25 kA
  • Rated insulation voltage Ui
    500 V
  • Connectable conductor cross section solid-core
    1 ... 25 mm²
  • Anti-nuisance tripping version
    no
  • Degree of protection (IP)
    IP20
  • Ambient temperature during operating
    25 ... 60 °C
  • Nominal current
    25 A
  • Rated fault current
    0.03 ... 0.03 A
  • Delay adjustable
    no
  • Leakage current type
    A
  • Frequency
    50/60 Hz
  • Rated impulse withstand voltage Uimp
    6 kV
  • Connectable conductor cross section multi-wired
    1 ... 16 mm²
  • With interlocking device
    no
  • Pollution degree
    3
