Residual current block 25A 2-pole 100mA type A A9W22225
local index:
ARP051SCHN
Catalog No:
A9W22225
EAN code:
3606480443619
Manufacturer:
SCHNEIDER ELECTRIC
Height [mm]: 91
Price:
159,81 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

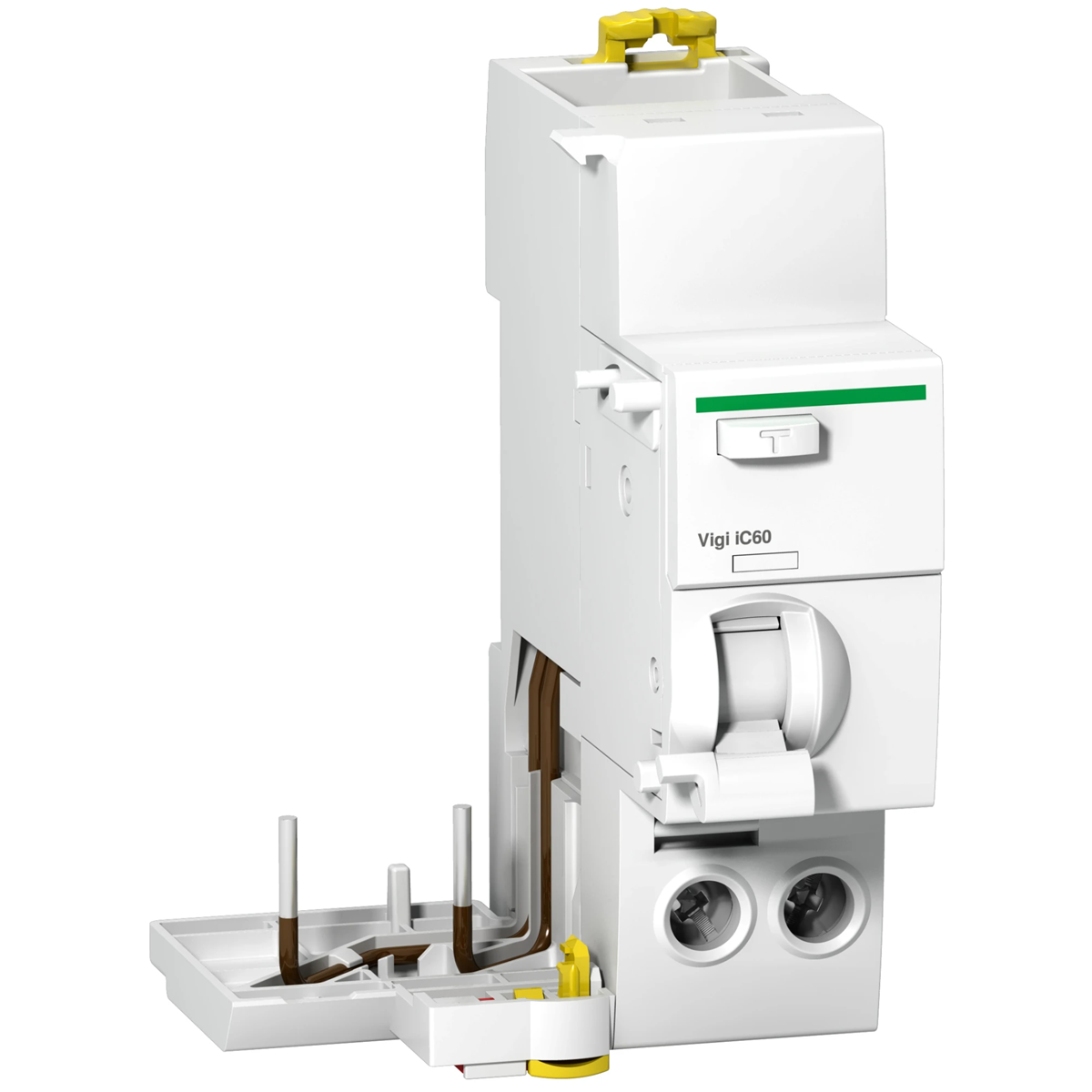

Residual current block 25A 2-pole 100mA type A
Technical data
-
Height [mm]91
-
PKWIU27.12.23.0
Other technical data
-
Nominal voltage230 ... 415 V
-
Rated fault current adjustableNo
-
Max. delay time0 ms
-
Number of poles2
-
Surge current capacity0.25 kA
-
Rated insulation voltage Ui500 V
-
Connectable conductor cross section solid-core1 ... 25 mm²
-
Anti-nuisance tripping versionNo
-
Degree of protection (IP)IP20
-
Ambient temperature during operating25 ... 60 °C
-
Nominal current25 A
-
Rated fault current0.1 ... 0.1 A
-
Delay adjustableNo
-
Leakage current typeA
-
Frequency50/60 Hz
-
Rated impulse withstand voltage Uimp6 kV
-
Connectable conductor cross section multi-wired1 ... 16 mm²
-
With interlocking deviceNo
-
Pollution degree3
