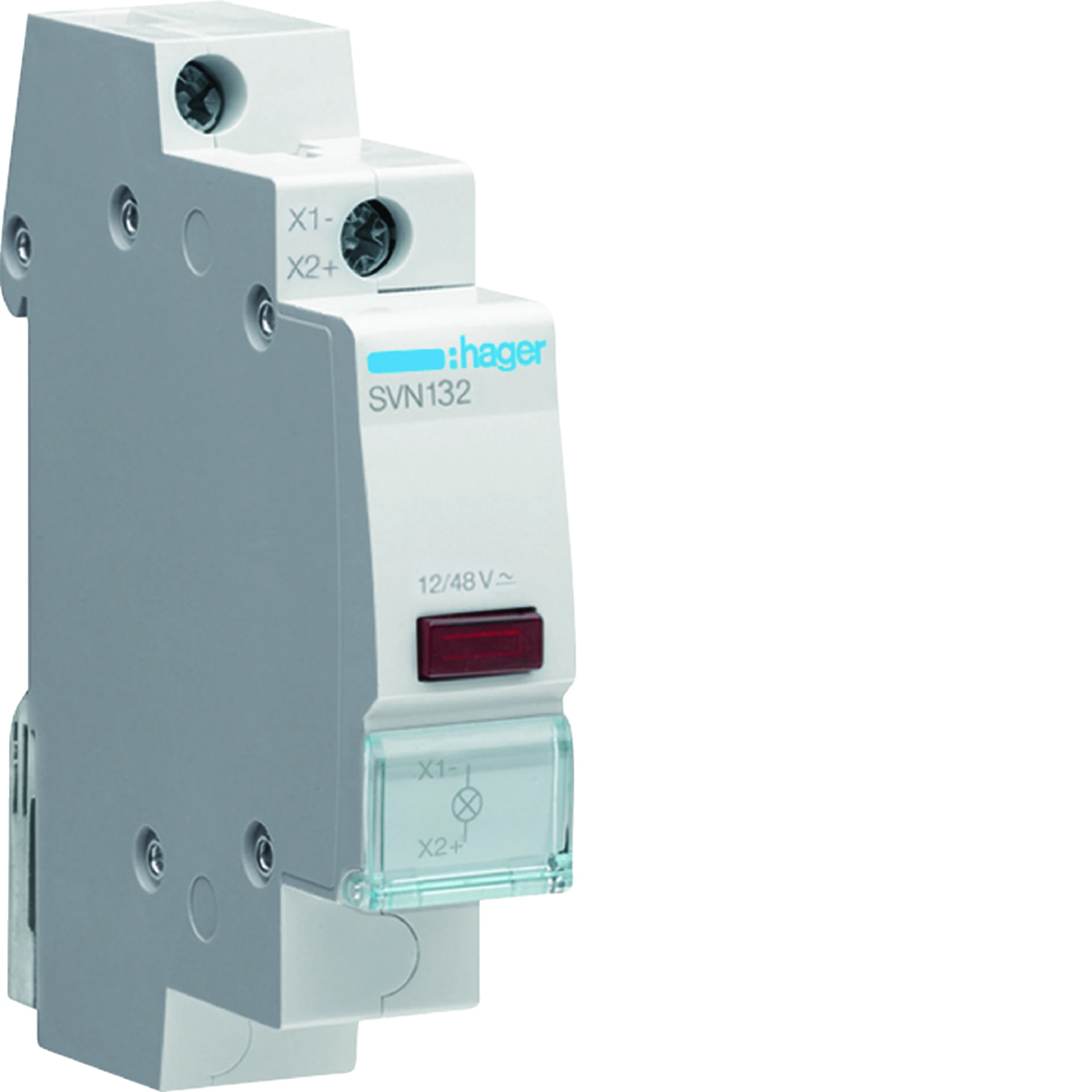

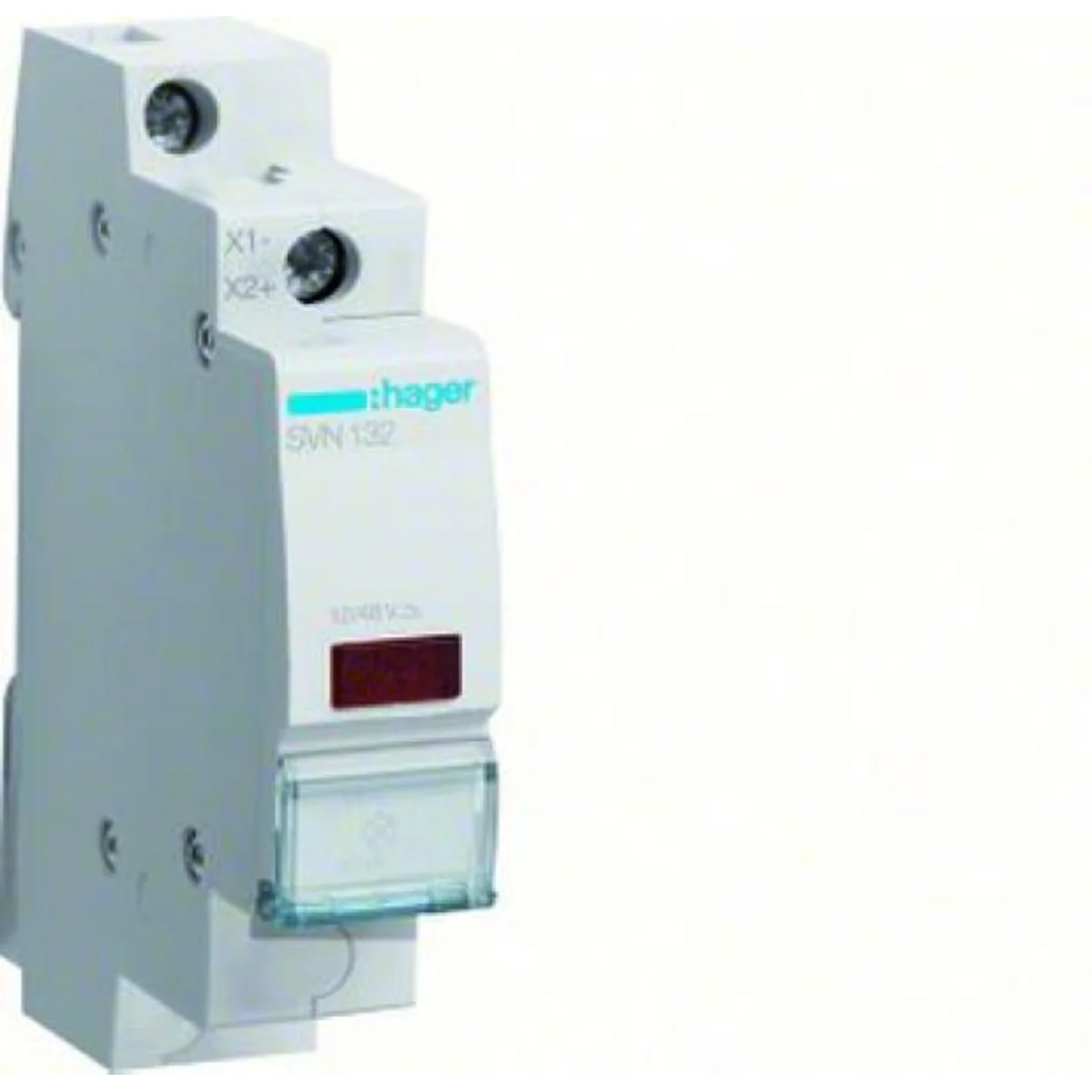

Red indicator lamp 12/48V AC SVN132

local index:
AKS143HAGE
Catalog No:
SVN132
EAN code:
3250615721747
Manufacturer: HAGER
Depth [mm]: 62
Number of modules: 1
Rated insulation voltage [V]: 250
Price:
15,42 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Signal lamp, red 12/48V AC.

Technical data

  • Depth [mm]
    62
  • Rated insulation voltage [V]
    250
  • Width [mm]
    17.5
  • Rated impulse voltage [kV]
    2000
  • PKWIU
    27.90.20.0
  • Number of modules
    1
  • Power dissipation [W]
    0.33
  • Height [mm]
    83
  • Number of modules
    1

Other technical data

  • Colour calotte
    Red
  • Lamp socket
    Other
  • Rated voltage
    48 V
  • Width in number of modular spacings
    1
  • Degree of protection (IP)
    IP20
  • Lamp type
    LED
  • Max. lamp power
    0.33 W
  • Voltage type
    AC/DC
  • Built-in depth
    62 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 12 pcs. 144 pcs. 3456 pcs.
Weight (kg) 0,044 0,628 7,975 214,400
Width (m) 0,018 0,095 0,310 0,800
Length (m) 0,083 0,080 0,230 1,090
Depth (m) 0,067 0,225 0,370 1,200
