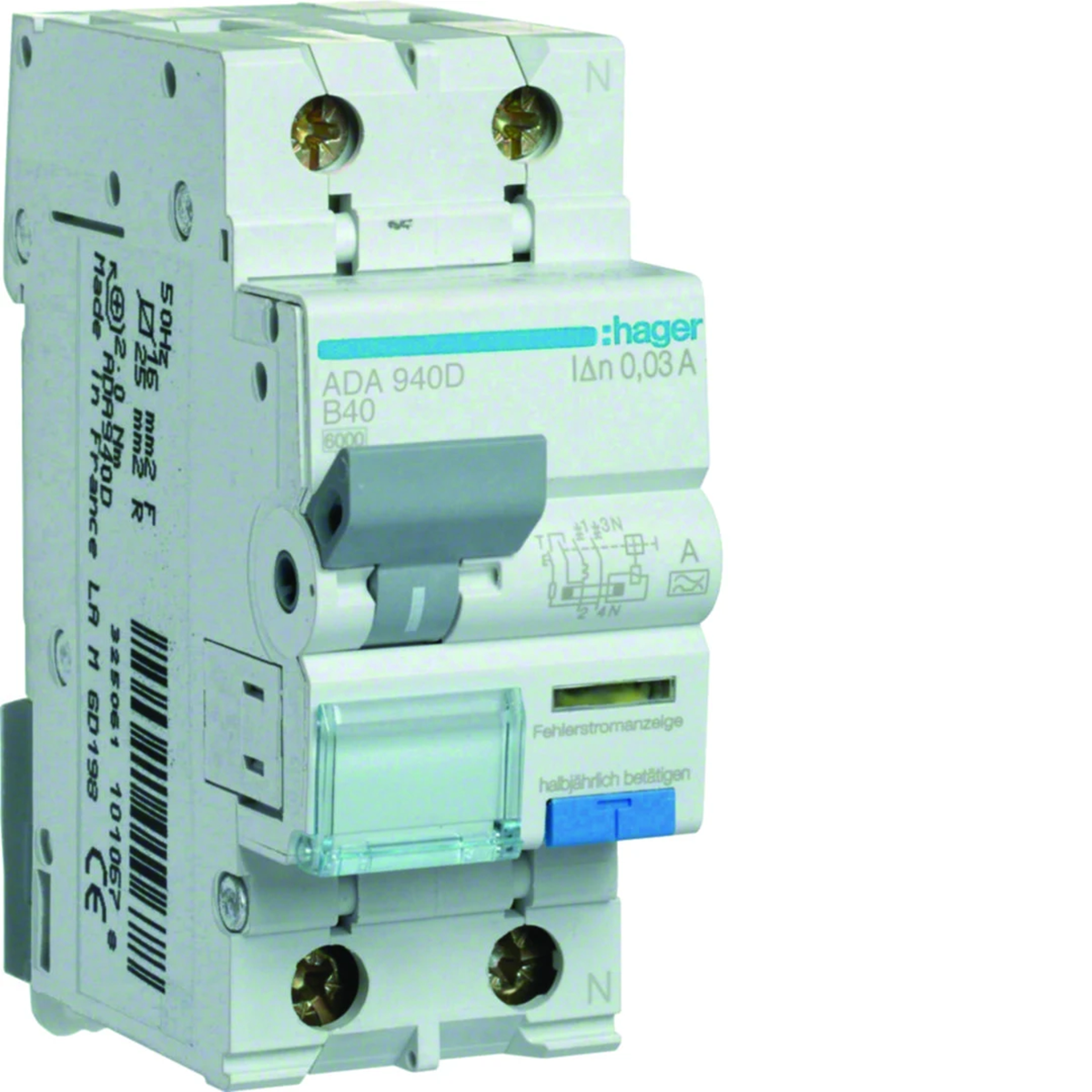

Residual current circuit breakers with overcurrent element

Residual current circuit breakers with overcurrent element (RCBO) of high and medium sensitivity, 2-pole (1P+N),
sensitive to sinusoidal alternating (AC) or sinusoidal alternating and pulsating currents with a DC component (A),
rated operational voltage: 230 V AC,
rated operating differential current: 10, 30 or 300 mA,
short-circuit capacity Icn = 6000 A, in accordance with PN-EN61009-1,
tripping characteristic for the overcurrent element: B or C,
optical residual current trip indicator,
optical indicator of the position of the main contacts,
descriptive field with a safety flap,
wide range of accessories
possibility of connection using horizontal comb busbars,
cage terminals: (wire up to 25 mm2, strand up to 16 mm2),
degree of protection: IP2X for terminals, IP40 for the device built into the switchgear.

Characteristic

b
Depth [mm]

68
Number of poles

2
Rated voltage [V]

230
Differential current [mA]

thirty
Power dissipation [W]

11.1
Working temperature [°C]

-25 to 40
Height

83
Electrical endurance (number of cycles)

2000
Rated short-circuit breaking capacity [kA]

6
Connection type

With a screw
AC rated voltage [V]

240

Rated frequency [Hz]

50
Number of modules

2
Tightening torque [Nm]

2.1
Rated insulation voltage [V]

500
Rated current [A]

40
Width [mm]

35
Trigger type

b
Height [mm]

83
Mechanical durability (number of cycles)

2000
Rated impulse voltage [kV]

4
Number of modules

2
PKWIU

27.12.23.0

Other technical data

Number of poles (total)

2
Rated voltage

240 V
Rated impulse withstand voltage Uimp

4 kV
Rated fault current

0.03 A
Current limiting class

3
Rated short-circuit breaking capacity Icn according to EN 61009-1

6 kA
Surge current capacity

0.25 kA
Frequency

50 Hz
Concurrently switching neutral conductor

Yes
Over voltage category

3
Ambient temperature during operating

-25 ... 40 °C
Built-in depth

68 mm
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

1 ... 16 mm²

Number of protected poles

1
Rated insulation voltage Ui

500 V
Rated current

40 A
Leakage current type

A
Rated short-circuit breaking capacity according to IEC 60947-2

6 kA
Disconnection characteristic

Undelayed
Voltage type

AC
Release characteristic

B
With interlocking device

Yes
Pollution degree

2
Width in number of modular spacings

2
Anti-nuisance tripping version

No
Connectable conductor cross section solid-core

1 ... 25 mm²

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	1 pcs.	60 pcs.	1440 pcs.
Weight (kg)	0,235	0,241	15,000	369,600
Width (m)	0,035	0,080	0,308	0,800
Length (m)	0,094	0,041	0,210	0,990
Depth (m)	0,070	0,097	0,357	1,200
