Electrical apparatus
RCDs
Electric shock switches

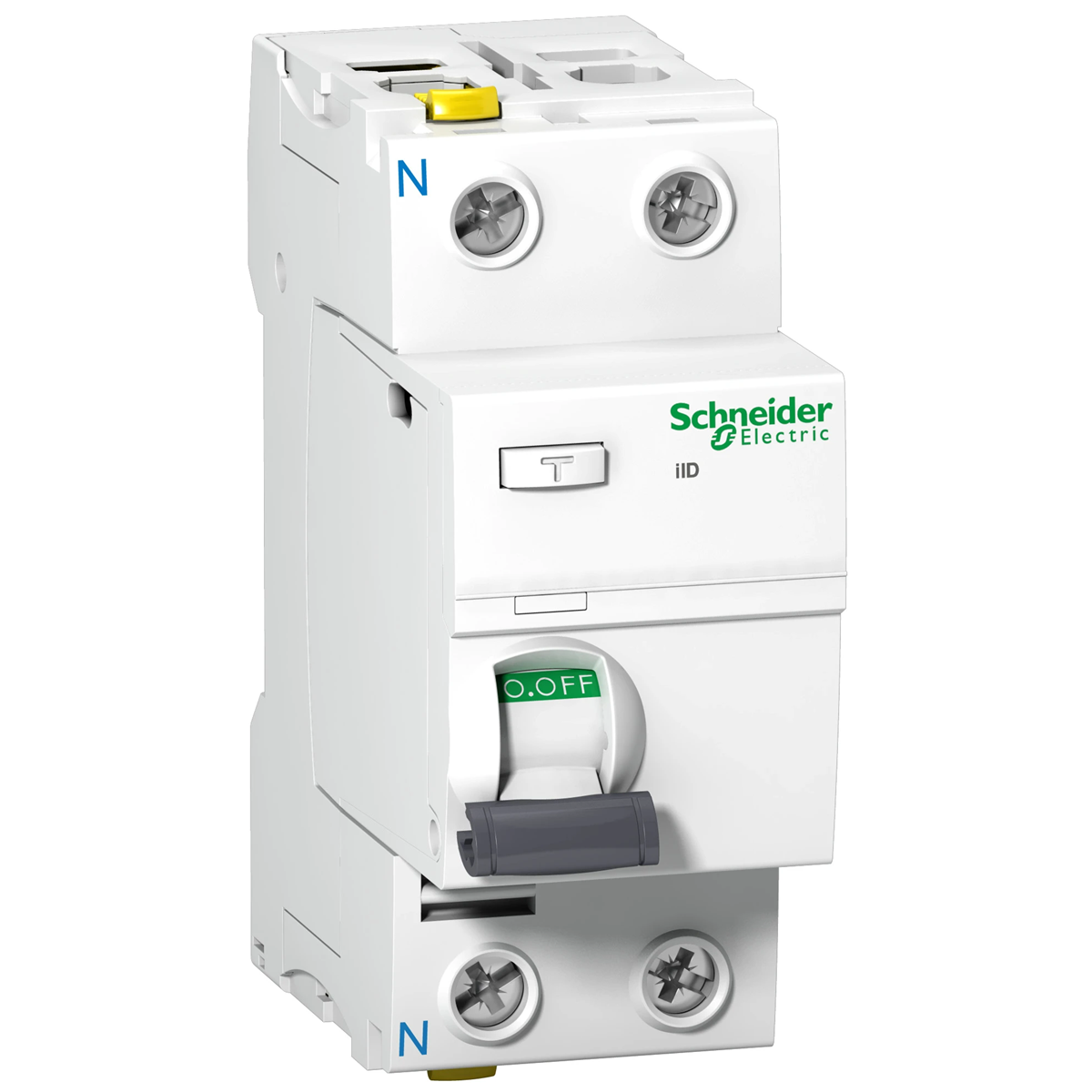

RCD iID-25-2-30-Si 25A 2-pole 30mA type Si A9Z31225
local index:
ARP030SCHN
Catalog No:
A9Z31225
EAN code:
3606480442599
Click on the photo to enlarge
Manufacturer:
SCHNEIDER ELECTRIC
Color:
White
See full description
Price:
89,18 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Files to download
Product description
RCD iID-25-2-30-Si 25A 2-pole 30mA type Si
Technical data
Color
White
PKWIU
27.12.23.0
Other technical data
Number of poles
2
Rated current
25 A
Rated insulation voltage Ui
500 V
Mounting method
DIN rail
Selective protection
No
Short-circuit breaking capacity (Icw)
1.5 kA
Frequency
50/60 Hz
With interlocking device
Yes
Width in number of modular spacings
2
Ambient temperature during operating
-25 ... 60 °C
Connectable conductor cross section multi-wired
1 ... 25 mm²
Rated voltage
230 V
Rated fault current
0.03 mA
Rated impulse withstand voltage Uimp
6 kV
Leakage current type
A
Short-time delayed tripping
Yes
Surge current capacity
3 kA
Additional equipment possible
Yes
Degree of protection (IP)
IP20
Built-in depth
44 mm
Pollution degree
3
Connectable conductor cross section solid-core
1 ... 35 mm²
Files to download
ENVPEP1409014_V2.pdf
EU decl - FD16041419D - RCCB_iID Bico.pdf
