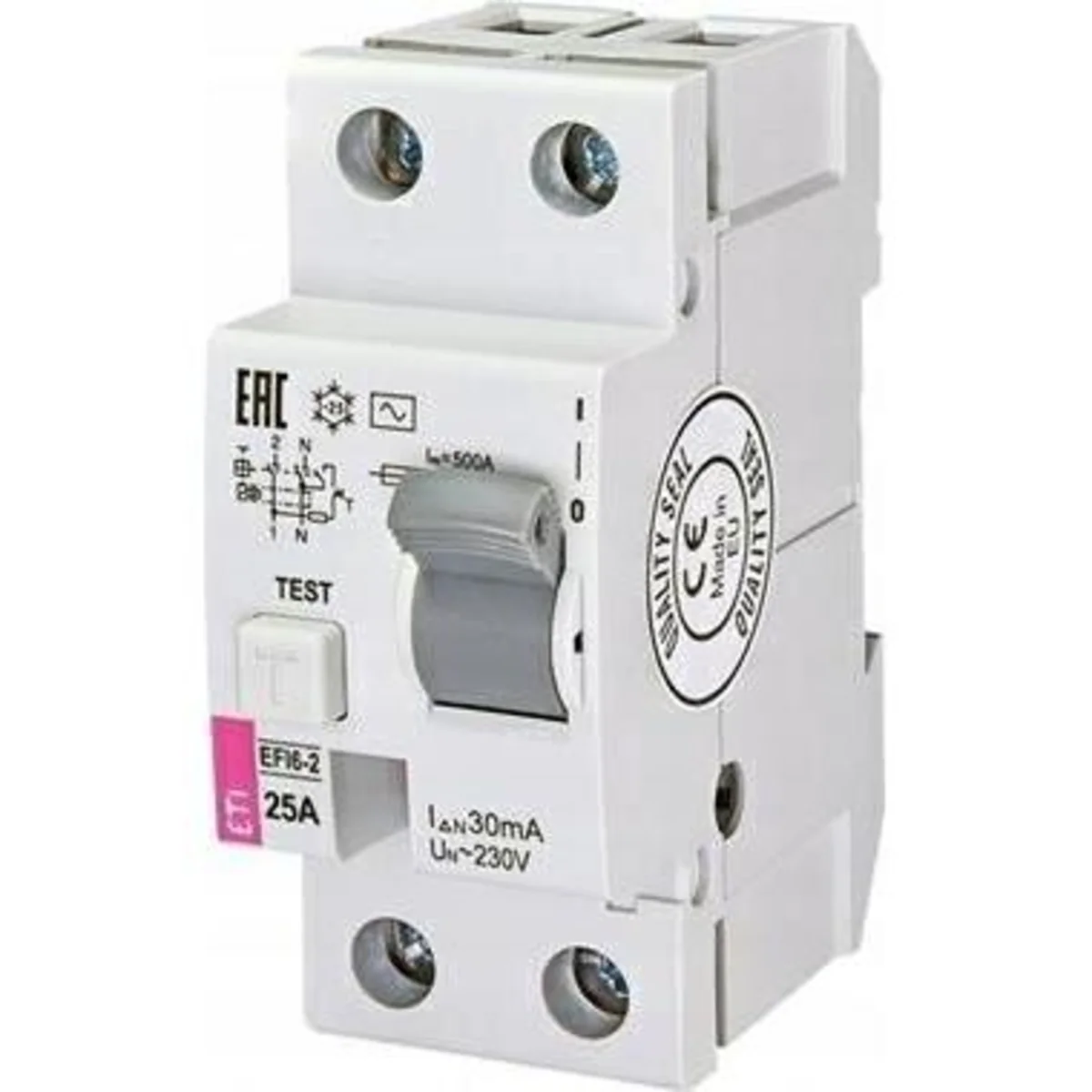

RCD EFI6-P2 AC 25/0.03 6kA 2-pole 002061251
local index:
ARP033ETIP
Catalog No:
002061251
EAN code:
3838895866282
Manufacturer:
ETI POLAM
Rated frequency [Hz]: 50/60
Installation: On the TH-35 rail
Rated voltage [V]: 230
Price:
31,75 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Residual current circuit breaker with rated breaking capacity 6kA.
- Number of poles 1+N
- Clamp capacity: 1 -25 mm2
- Rated operating current: 0.03IDn (mA)
- Impact current: 0.4kA
Technical data
-
Rated frequency [Hz]50/60
-
Rated voltage [V]230
-
Level of securityIP20
-
InstallationOn the TH-35 rail
-
Rated current [A]25
-
PKWIU27.12.22.0
Other technical data
-
Number of poles2
-
Rated fault current30 A
-
Rated impulse withstand voltage Uimp6 kV
-
Leakage current typeAC
-
Frequency50/60 Hz
-
Width in number of modular spacings2
-
Ambient temperature during operating-25 ... 55 °C
-
Connectable conductor cross section solid-core1 ... 25 mm²
-
Rated current25 A
-
Rated insulation voltage Ui440 V
-
Mounting methodDIN rail
-
Short-circuit breaking capacity (Icw)6 kA
-
Degree of protection (IP)IP20
-
Built-in depth68 mm
-
Connectable conductor cross section multi-wired1 ... 25 mm²
Bulk packaging
| A kind of package | Pudełko | Pudełko |
| Quantity | 1 pcs. | 54 pcs. |
| Weight (kg) | 0,187 | 11,204 |
| Volume (m3) | 0,000 | 0,017 |
| Width (m) | 0,039 | 0,233 |
| Length (m) | 0,078 | 0,253 |
| Depth (m) | 0,092 | 0,287 |
