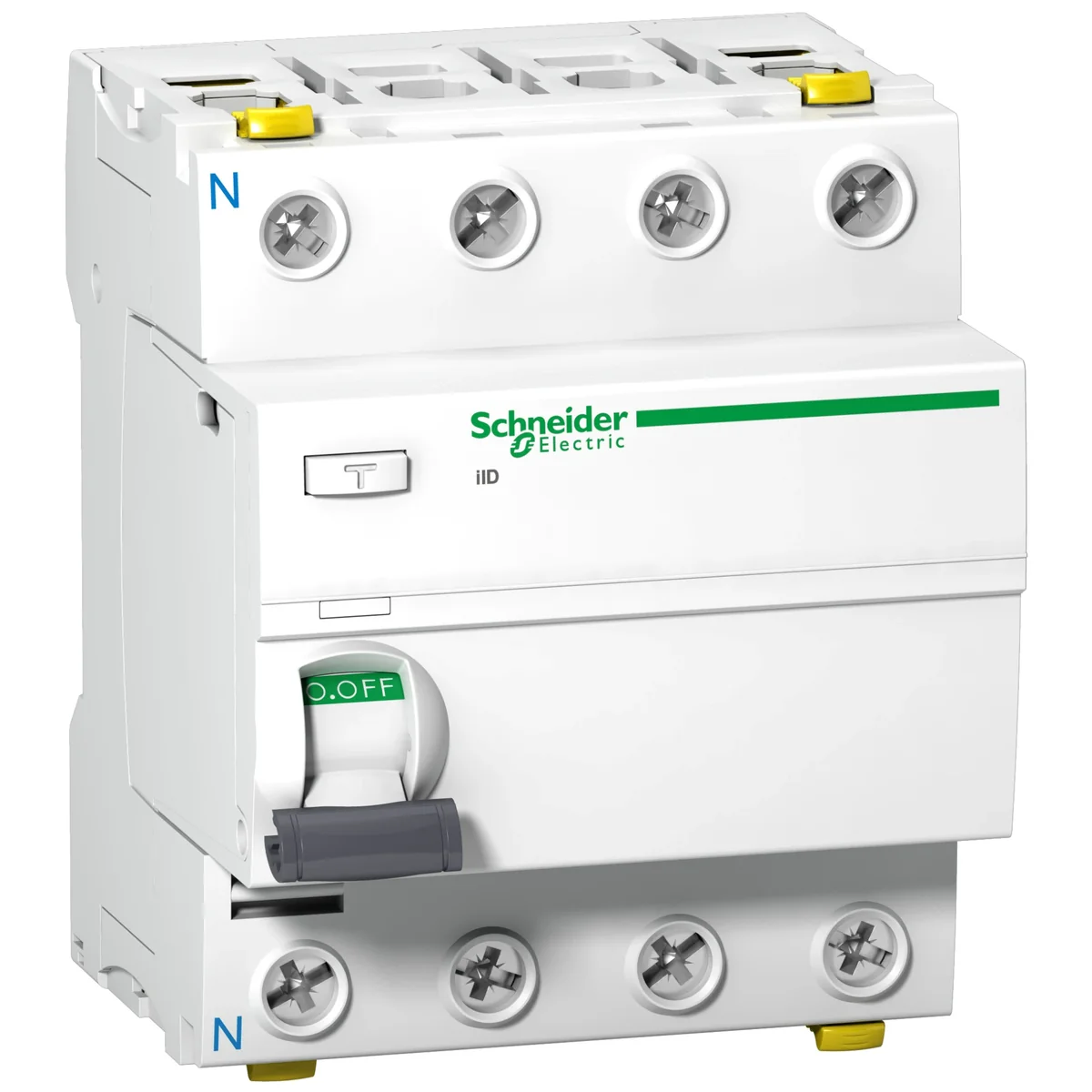

RCD 63A 4P 100mA type A-S-THV A9Z83463

local index:
ARP149SCHN
Catalog No:
A9Z83463
EAN code:
3606480442902
Manufacturer: SCHNEIDER ELECTRIC
Number of poles: 4
Price:
152,62 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

RCD 63A 4P 100mA type A-S-THV

Technical data

  • Number of poles
    4
  • PKWIU
    27.12.23.0

Other technical data

  • Number of poles
    4
  • Rated current
    63 A
  • Rated insulation voltage Ui
    500 V
  • Mounting method
    DIN rail
  • Selective protection
    Yes
  • Short-circuit breaking capacity (Icw)
    10 kA
  • Frequency
    50/60 Hz
  • With interlocking device
    No
  • Width in number of modular spacings
    4
  • Ambient temperature during operating
    -25 ... 60 °C
  • Connectable conductor cross section multi-wired
    1 ... 25 mm²
  • Rated voltage
    415 V
  • Rated fault current
    0.1 mA
  • Rated impulse withstand voltage Uimp
    6 kV
  • Leakage current type
    A
  • Short-time delayed tripping
    No
  • Surge current capacity
    3 kA
  • Additional equipment possible
    Yes
  • Degree of protection (IP)
    IP20
  • Built-in depth
    44 mm
  • Pollution degree
    3
  • Connectable conductor cross section solid-core
    1 ... 35 mm²

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,382
Volume (m3) 0,001
Width (m) 0,083
Length (m) 0,100
Depth (m) 0,075
