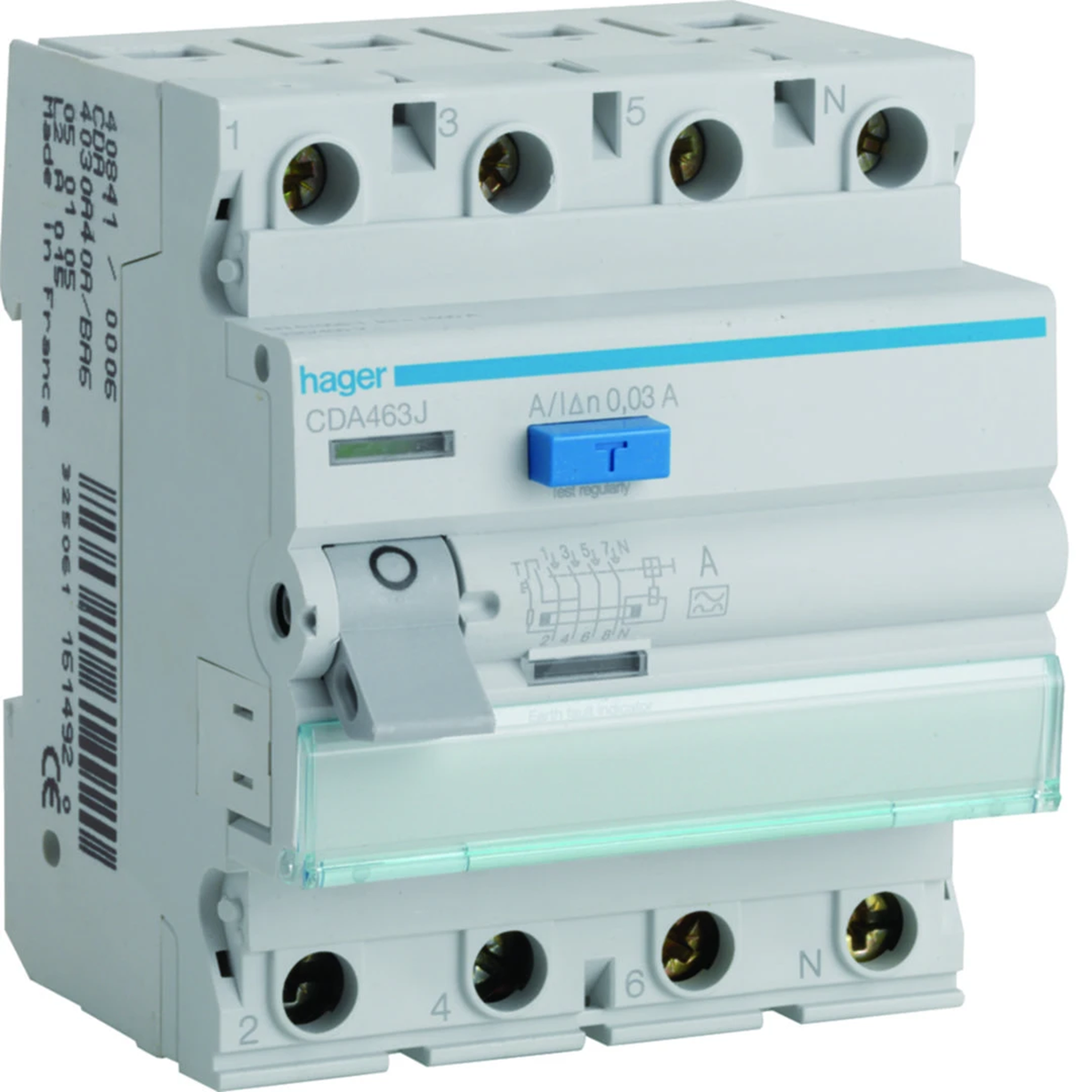

RCD 63A 30mA 4pole type A CDA463J

Name: RCD 63A 30mA 4pole type A
Brand: HAGER
SKU: ARP519HAGE
Price: 301.47 PLN
Availability: InStock

local index:

ARP519HAGE

Catalog No:

CDA463J

EAN code:

3250611619536

Click on the photo to enlarge

Manufacturer: HAGER

Rated frequency [Hz]: 50

Depth [mm]: 70

Number of poles: 4

See full description

Price:

301,47 zł

gross / pcs.

(including VAT 23%)

Accessible 32 pcs.

Quantity pcs.

(multiplicity:

)

Add to inquiry

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

Residual Current Circuit Breakers Type A
• residual current circuit breakers with high and medium sensitivity, residual currents A (sinusoidal alternating and pulsating current with a DC component),
• rated operational voltage: 230/400 V AC - two-pole circuit breaker, 400 V AC - four-pole circuit breaker,
• rated operating differential current in the range from 10 mA to 500 mA,
• rated making and breaking capacity (Im): 1500 A,
• rated short-circuit current conventional (Inc): the value depends on the rated current of the short-circuit protection protecting the residual current device,
• optical actuation indicator (circuit breaker opening/closing and circuit breaker tripping due to differential current),
• wide range of accessories,
• possibility of connection using vertical and horizontal comb busbars,
• cage terminals:
- circuit breakers with a rated current of 16 ÷ 63 A: wire up to 25 mm2, stranded wire up to 16 mm2
- circuit breakers with a rated current of 125 A: wire up to 50 mm2, stranded wire up to 35 mm2,
• degree of protection: IP2X for terminals, IP40 for the device built into the switchgear.

Technical data

Rated frequency [Hz]

50
Number of poles

4
Rated insulation voltage [V]

500
Rated current [A]

63
power loss [W]

18.5
Width [mm]

70
Trigger type

AND
Electrical endurance (number of cycles)

2000
Operating temperature range [°C]

from -25 to 40
Rated impulse voltage [kV]

4
Rated current at 20°C [A]

63
Rated current at 40°C [A]

63
Rated current at 50°C [A]

58
Rated current at 60°C [A]

51
Rated current at 70°C [A]

45
RCD type

AND
Conductor cross-section (wire) [mm²]

25

Depth [mm]

70
Tightening torque [Nm]

2.8
Differential current [mA]

thirty
Level of security

IP20
Power loss per pole [W]

7.9
Connection type

With a screw
Height [mm]

83
Mechanical durability (number of cycles)

4000
Rated switching voltage [V]

230/400
Number of modules

4
Rated current at 30°C [A]

63
Rated current at 45°C [A]

60
Rated current at 55°C [A]

55
Rated current at 65°C [A]

48
storage temperature [°C]

from -55 to 70
Wire cross-section (cord) [mm²]

16
PKWIU

27.12.23.0

Other technical data

Number of poles

4
Rated current

63 A
Rated insulation voltage Ui

500 V
Mounting method

DIN rail
Selective protection

No
Short-circuit breaking capacity (Icw)

6 kA
With interlocking device

No
Additional equipment possible

Yes
Width in number of modular spacings

4
Ambient temperature during operating

-25 ... 40 °C
Connectable conductor cross section multi-wired

1 ... 16 mm²

Rated voltage

400 V
Rated fault current

30 A
Rated impulse withstand voltage Uimp

4 kV
Leakage current type

A
Short-time delayed tripping

No
Surge current capacity

0.25 kA
Frequency

50 Hz
Degree of protection (IP)

IP20
Built-in depth

70 mm
Pollution degree

2
Connectable conductor cross section solid-core

1 ... 25 mm²

Manufacturer details

Manufacturer

Hager Electro S.A.S.
Address

FR 67215 Obernai 123 boulevard d’Europe Francja
E-mail

wsparcie.klienta@hager.com

Bulk packaging

A kind of package	Karton	Pakiet	Paleta	Karton	Pakiet	Paleta
Quantity	1 pcs.	36 pcs.	864 pcs.	1 pcs.	36 pcs.	864 pcs.
Weight (kg)	0,380	13,750	330,040	0,380	13,750	330,040
Width (m)	0,080	0,320	0,800	0,080	0,320	0,800
Length (m)	0,070	0,230	1,080	0,070	0,230	1,080
Depth (m)	0,090	0,360	1,200	0,090	0,360	1,200
