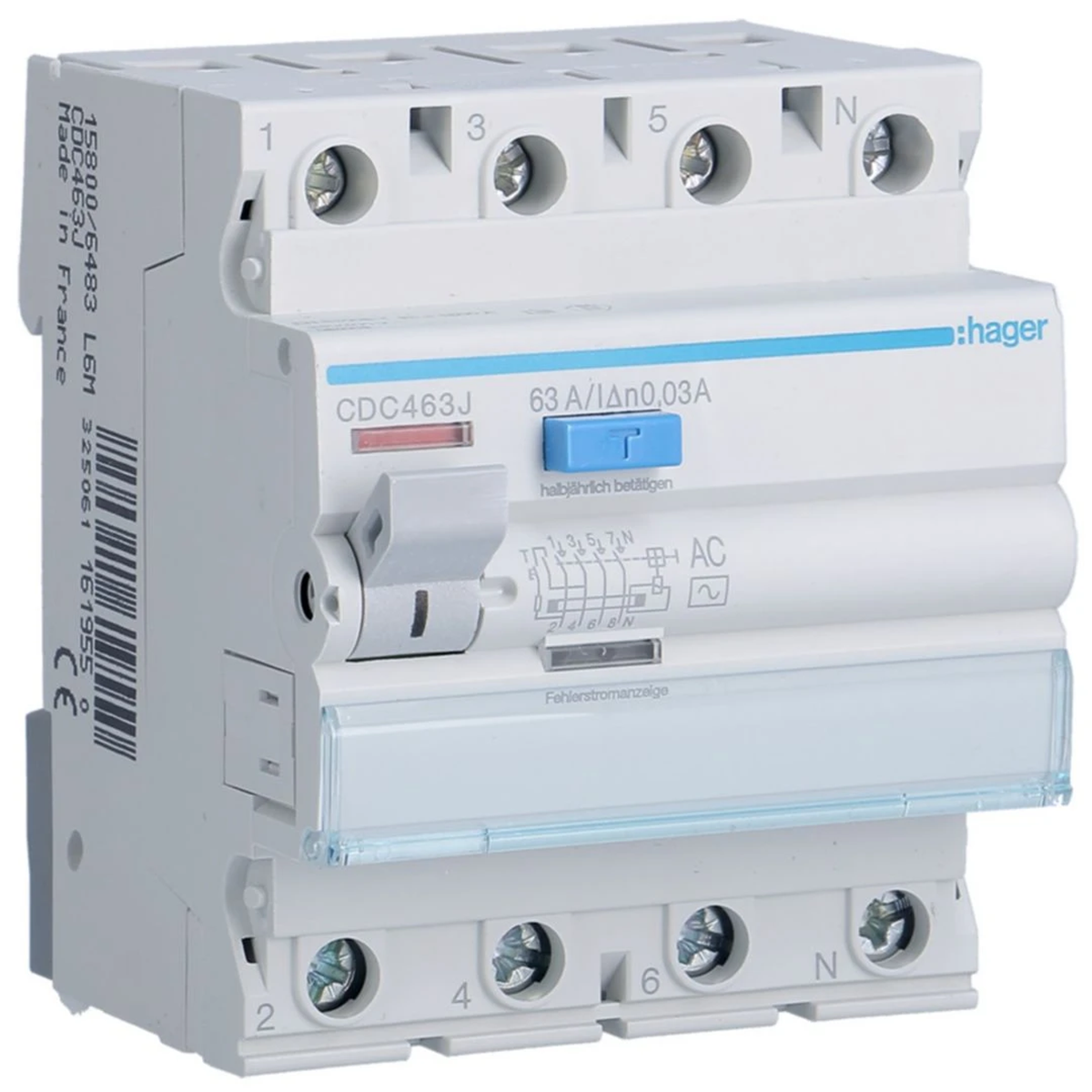

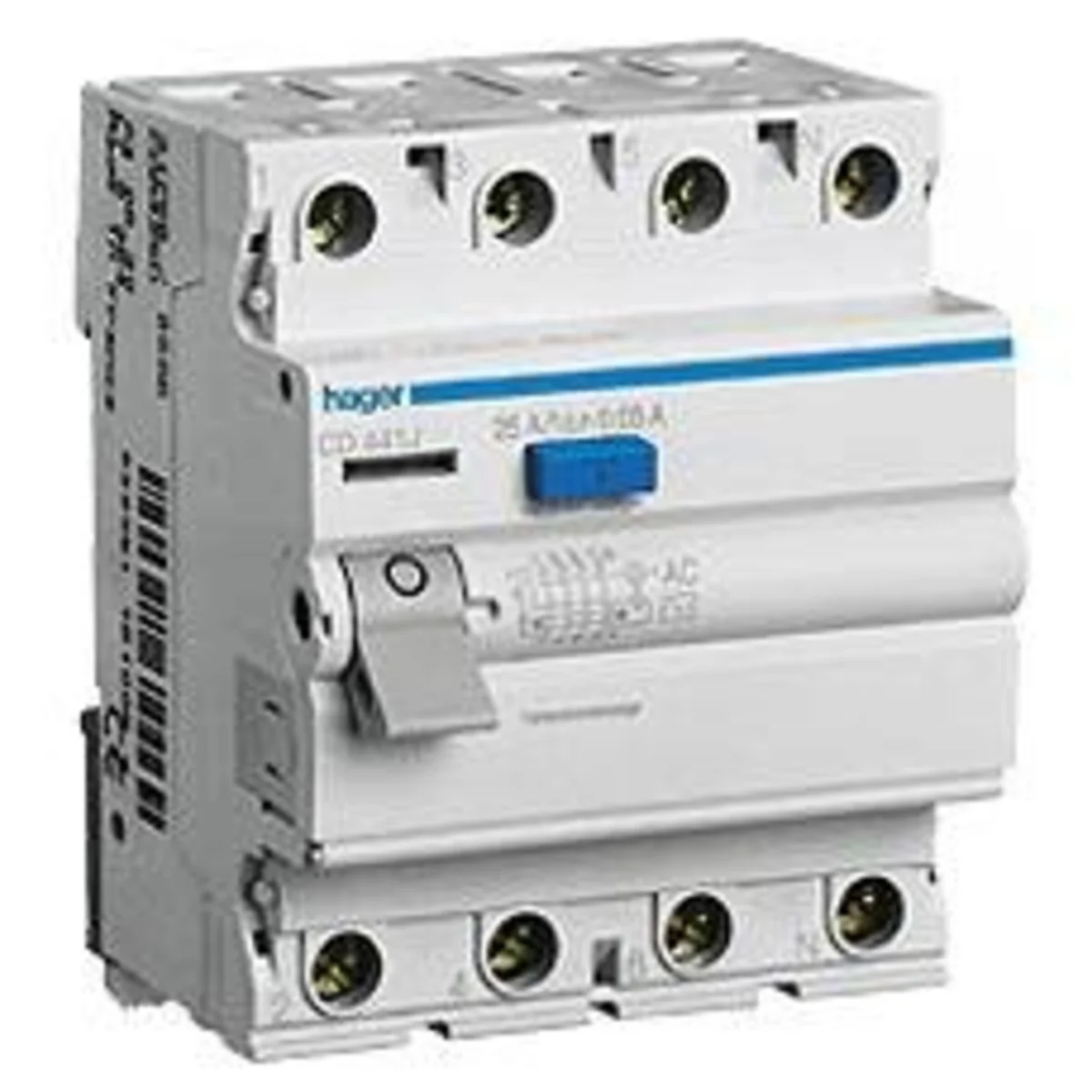

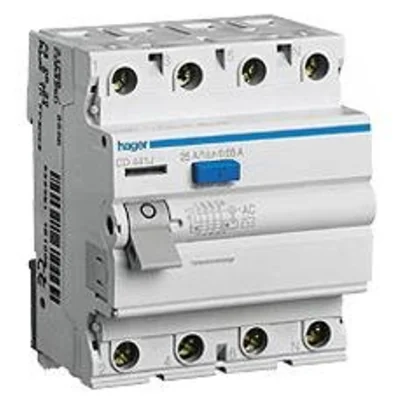

RCD 63A 30mA 4pole AC type CDC463J

local index:
ARP070HAGE
Catalog No:
CDC463J
EAN code:
3250611619550
Manufacturer: HAGER
Depth [mm]: 70
Number of modules: 4
Number of poles: 4
Price:
58,93 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 36 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

RCD 63A 30mA 4pole AC type

Technical data

  • Depth [mm]
    70
  • Number of poles
    4
  • Rated insulation voltage [V]
    900
  • Rated current [A]
    63
  • Trigger type
    AC
  • Number of modules
    4
  • Number of modules
    4
  • Rated voltage [V]
    230
  • Differential current [mA]
    thirty
  • Width [mm]
    70
  • Height [mm]
    83
  • PKWIU
    27.12.23.0

Other technical data

  • Number of poles
    4
  • Rated current
    63 A
  • Rated insulation voltage Ui
    500 V
  • Mounting method
    DIN rail
  • Selective protection
    No
  • Short-circuit breaking capacity (Icw)
    6 kA
  • With interlocking device
    No
  • Additional equipment possible
    Yes
  • Width in number of modular spacings
    4
  • Ambient temperature during operating
    -25 ... 40 °C
  • Connectable conductor cross section multi-wired
    1 ... 16 mm²
  • Rated voltage
    400 V
  • Rated fault current
    30 A
  • Rated impulse withstand voltage Uimp
    4 kV
  • Leakage current type
    AC
  • Short-time delayed tripping
    No
  • Surge current capacity
    0.25 kA
  • Frequency
    50 Hz
  • Degree of protection (IP)
    IP20
  • Built-in depth
    70 mm
  • Pollution degree
    2
  • Connectable conductor cross section solid-core
    1 ... 25 mm²

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 36 pcs. 864 pcs.
Weight (kg) 0,371 0,380 14,165 362,960
Width (m) 0,070 0,080 0,310 0,800
Length (m) 0,085 0,075 0,235 1,086
Depth (m) 0,073 0,095 0,360 1,200
