RCD 40A 300mA 4pole AC type CFC440J
local index:
ARP034HAGE
Catalog No:
CFC440J
EAN code:
3250611619741
Price:
76,31 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

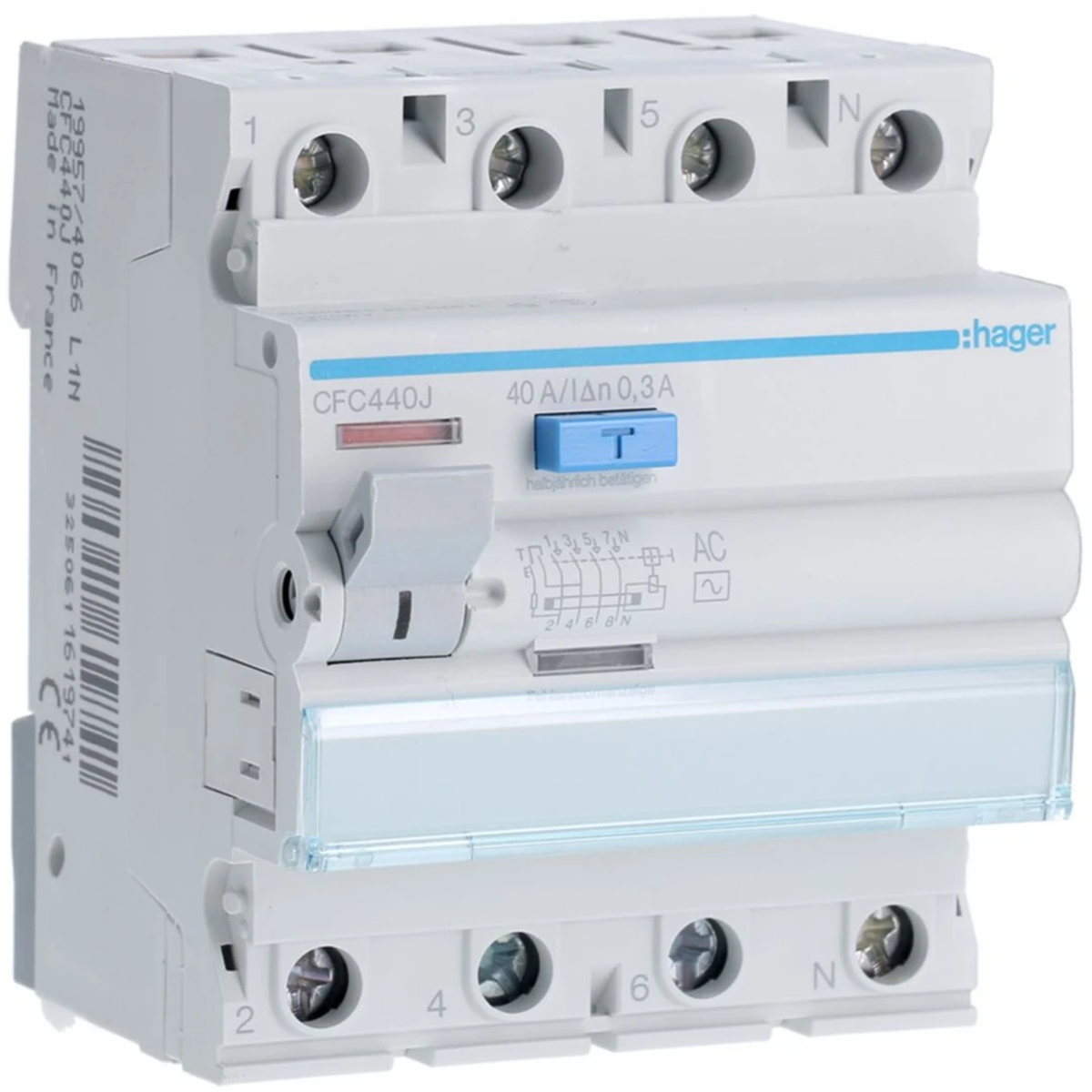

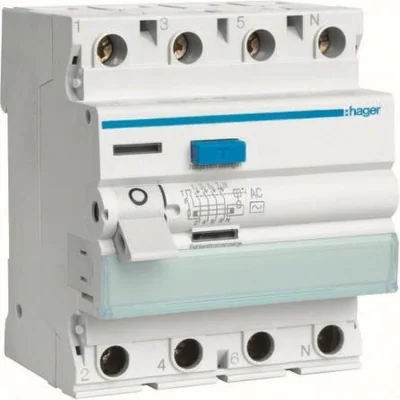

RCD 40A 300mA 4pole AC type
Technical data
-
Depth [mm]70
-
Number of poles4
-
Rated insulation voltage [V]900
-
Rated current [A]40
-
Width [mm]70
-
Height [mm]83
-
PKWIU27.12.23.0
-
Number of modules4
-
Rated voltage [V]230
-
Differential current [mA]300
-
Power dissipation [W]5
-
Trigger typeAC
-
Number of modules4
Other technical data
-
Number of poles4
-
Rated current40 A
-
Rated insulation voltage Ui500 V
-
Mounting methodDIN rail
-
Selective protectionNo
-
Short-circuit breaking capacity (Icw)6 kA
-
With interlocking deviceNo
-
Additional equipment possibleYes
-
Width in number of modular spacings4
-
Ambient temperature during operating-25 ... 40 °C
-
Connectable conductor cross section multi-wired1 ... 16 mm²
-
Rated voltage400 V
-
Rated fault current300 A
-
Rated impulse withstand voltage Uimp4 kV
-
Leakage current typeAC
-
Short-time delayed trippingNo
-
Surge current capacity0.25 kA
-
Frequency50 Hz
-
Degree of protection (IP)IP20
-
Built-in depth70 mm
-
Pollution degree2
-
Connectable conductor cross section solid-core1 ... 25 mm²
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 36 pcs. | 864 pcs. |
| Weight (kg) | 0,318 | 0,333 | 12,428 | 323,272 |
| Width (m) | 0,070 | 0,075 | 0,315 | 0,800 |
| Length (m) | 0,085 | 0,080 | 0,237 | 1,098 |
| Depth (m) | 0,073 | 0,094 | 0,370 | 1,200 |
