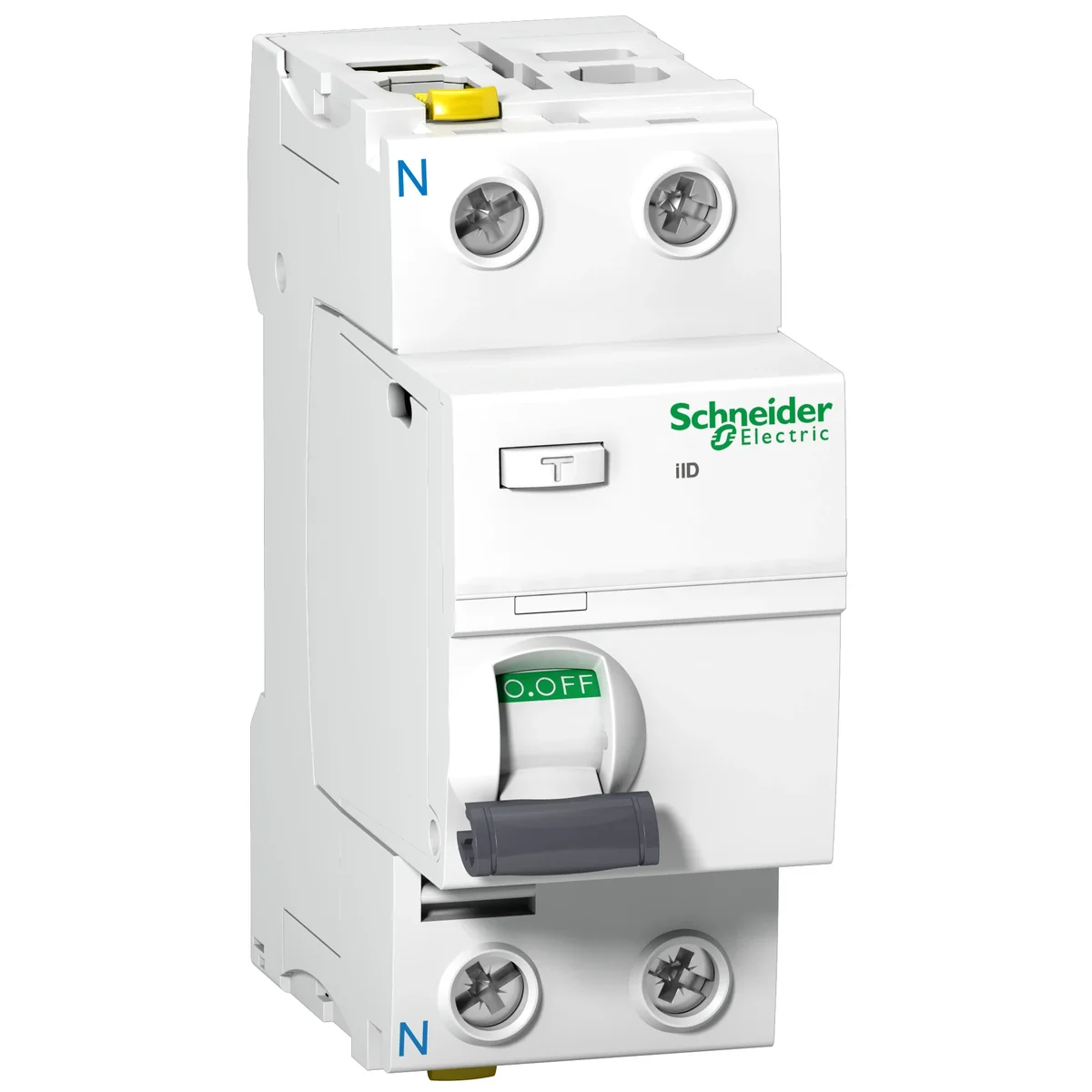

RCD 40A 2-pole 300mA type AC-S A9Z15240

local index:
ARP129SCHN
Catalog No:
A9Z15240
EAN code:
3606480442230
Price:
109,56 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

RCD 40A 2-pole 300mA type AC-S

Technical data

  • Color
    White
  • PKWIU
    27.12.23.0

Other technical data

  • Number of poles
    2
  • Rated current
    40 A
  • Rated insulation voltage Ui
    500 V
  • Mounting method
    DIN rail
  • Selective protection
    Yes
  • Short-circuit breaking capacity (Icw)
    10 kA
  • Frequency
    50/60 Hz
  • With interlocking device
    Yes
  • Width in number of modular spacings
    2
  • Ambient temperature during operating
    -5 ... 60 °C
  • Connectable conductor cross section multi-wired
    1 ... 25 mm²
  • Rated voltage
    230 V
  • Rated fault current
    0.3 mA
  • Rated impulse withstand voltage Uimp
    6 kV
  • Leakage current type
    AC
  • Short-time delayed tripping
    No
  • Surge current capacity
    3 kA
  • Additional equipment possible
    No
  • Degree of protection (IP)
    IP20
  • Built-in depth
    44 mm
  • Pollution degree
    3
  • Connectable conductor cross section solid-core
    1 ... 35 mm²
