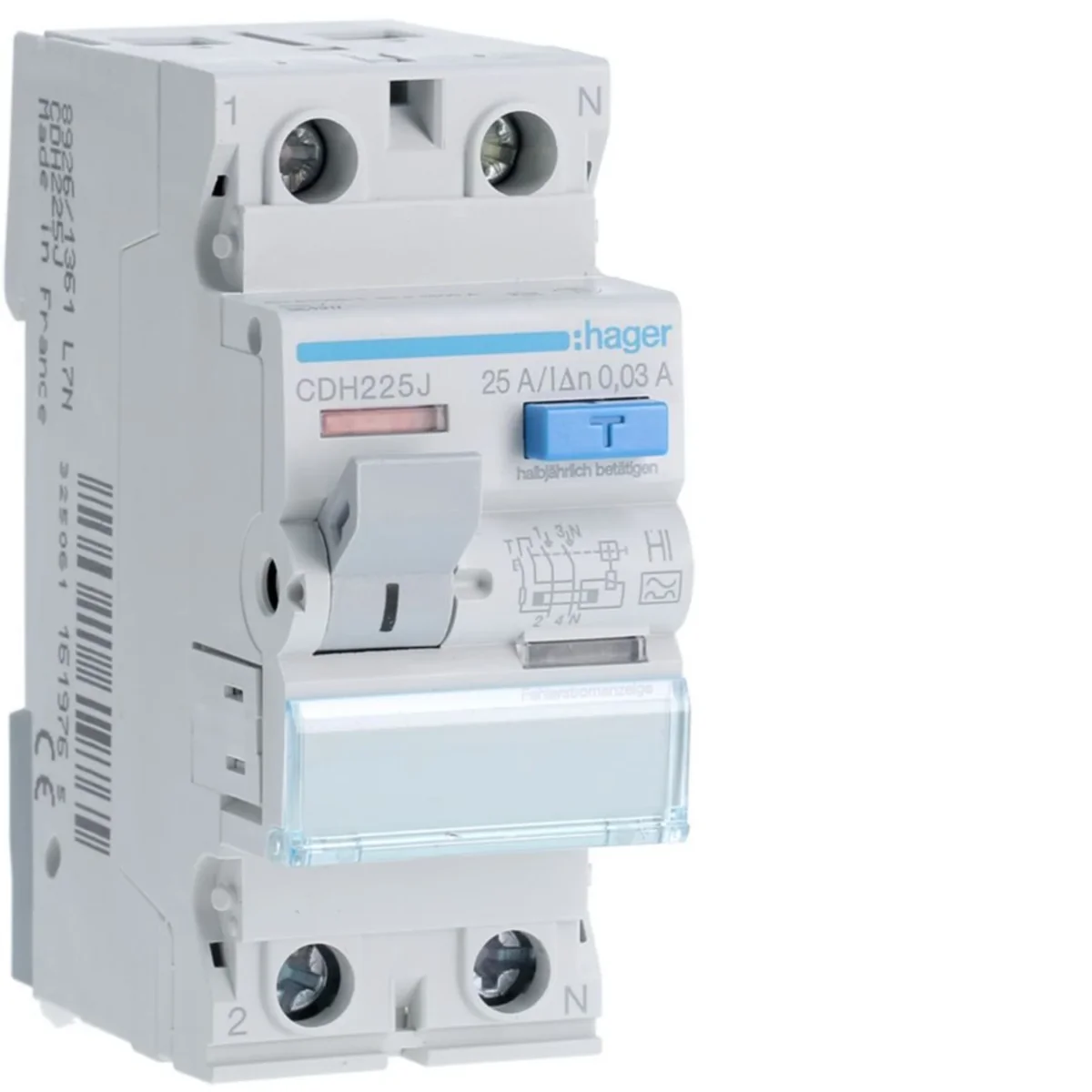

Residual Current Circuit Breakers Type A
• residual current devices with high and medium sensitivity, residual currents A (sinusoidal alternating and pulsating current with a DC component),
• rated operational voltage: 230/400 V AC - two-pole circuit breaker, 400 V AC - four-pole circuit breaker,
• rated operating differential current in the range from 10 mA to 500 mA,
• rated making and breaking capacity (Im): 1500 A,
• rated short-circuit current (Inc): the value depends on the rated current of the short-circuit protection protecting the residual current circuit breaker,
• optical actuation indicator (circuit breaker opening/closing and circuit breaker tripping due to differential current),
• wide range of accessoriesó
• possibility of connection using vertical and horizontal comb busbars,
• cage terminals:
- circuit breakers with a rated current of 16 ÷ 63 A: wire up to 25 mm2, stranded wire up to 16 mm2
- circuit breakers with a rated current of 125 A: wire up to 50 mm2, stranded wire up to 35 mm2,
• degree of protection: IP2X for terminals, IP40 for the device built into the switchgear.

Depth [mm]

70
Number of poles

2
Differential current [mA]

thirty
Power dissipation [W]

2.8
Trigger type

AND
Number of modules

2

Number of modules

2
Rated insulation voltage [V]

500
Rated current [A]

25
Width [mm]

35
Height [mm]

83
PKWIU

27.12.23.0

Other technical data

Number of poles

2
Rated current

25 A
Rated insulation voltage Ui

500 V
Mounting method

DIN rail
Selective protection

No
Short-circuit breaking capacity (Icw)

6 kA
With interlocking device

No
Additional equipment possible

Yes
Width in number of modular spacings

2
Ambient temperature during operating

-25 ... 40 °C
Connectable conductor cross section multi-wired

1 ... 16 mm²

Rated voltage

230 V
Rated fault current

30 A
Rated impulse withstand voltage Uimp

4 kV
Leakage current type

Other
Short-time delayed tripping

No
Surge current capacity

3 kA
Frequency

50 Hz
Degree of protection (IP)

IP20
Built-in depth

70 mm
Pollution degree

2
Connectable conductor cross section solid-core

1 ... 25 mm²

Manufacturer details

Manufacturer

HAGER POLO Sp. z o. o.
Address

43-100 Tychy Fabryczna 10
E-mail

zamowienia@hager.pl
WWW

https://www.hagergroup.pl
Tax identification number

6460015532
GLN

5900009931532

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	1 pcs.	60 pcs.	1440 pcs.
Weight (kg)	0,181	0,207	12,420	298,080
Width (m)	0,035	0,082	0,318	0,800
Length (m)	0,085	0,041	0,216	1,020
Depth (m)	0,073	0,102	0,370	1,200
