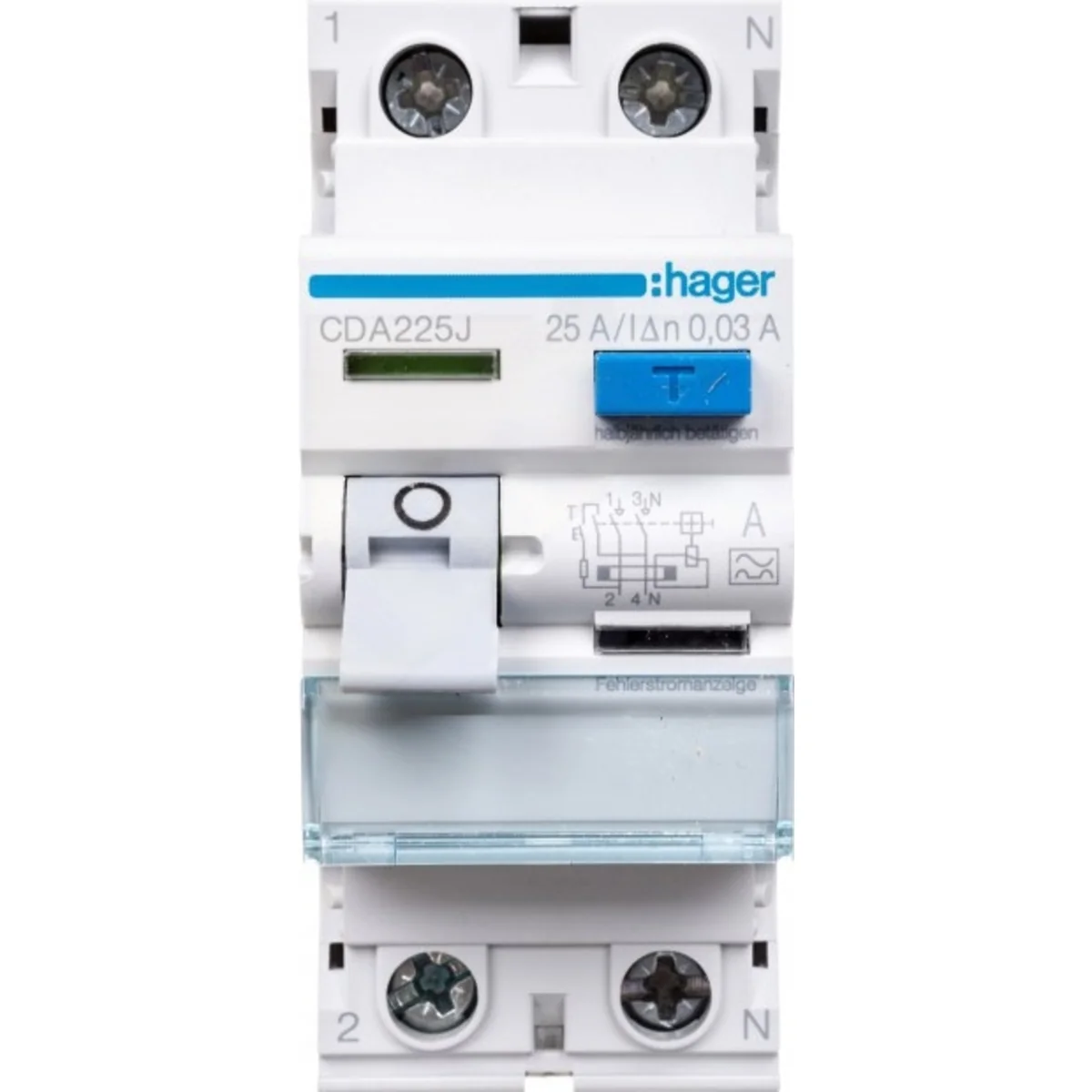

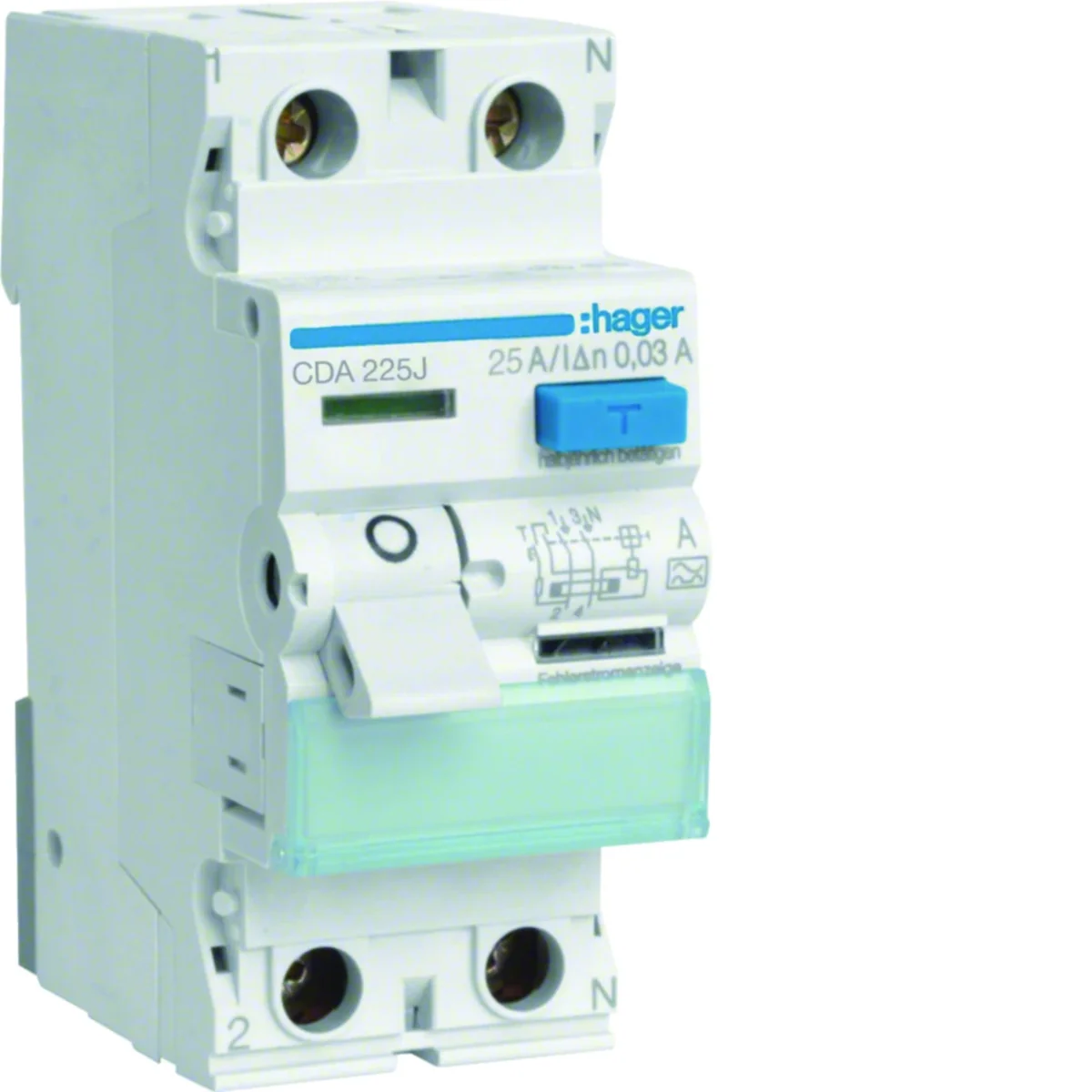

RCD 25A 30mA 2pole type A CDA225J
local index:
ARP060HAGE
Catalog No:
CDA225J
EAN code:
3250611619451
Price:
64,64 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
RCD 25A 30mA 2pole type A
Technical data
-
Depth [mm]70
-
Number of poles2
-
Differential current [mA]thirty
-
Power dissipation [W]2.5
-
Trigger typeAND
-
Number of modules2
-
Number of modules2
-
Operating voltage [V]127/230
-
Rated current [A]25
-
Width [mm]35
-
Height [mm]83
-
PKWIU27.12.23.0
Other technical data
-
Number of poles2
-
Rated current25 A
-
Rated insulation voltage Ui500 V
-
Mounting methodDIN rail
-
Selective protectionNo
-
Short-circuit breaking capacity (Icw)6 kA
-
With interlocking deviceNo
-
Additional equipment possibleYes
-
Width in number of modular spacings2
-
Ambient temperature during operating-25 ... 40 °C
-
Connectable conductor cross section multi-wired1 ... 16 mm²
-
Rated voltage230 V
-
Rated fault current30 A
-
Rated impulse withstand voltage Uimp4 kV
-
Leakage current typeA
-
Short-time delayed trippingNo
-
Surge current capacity0.25 kA
-
Frequency50 Hz
-
Degree of protection (IP)IP20
-
Built-in depth70 mm
-
Pollution degree2
-
Connectable conductor cross section solid-core1 ... 25 mm²
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 60 pcs. | 1440 pcs. |
| Weight (kg) | 0,181 | 0,195 | 12,035 | 311,840 |
| Width (m) | 0,035 | 0,080 | 0,315 | 0,800 |
| Length (m) | 0,085 | 0,040 | 0,210 | 0,986 |
| Depth (m) | 0,073 | 0,100 | 0,360 | 1,200 |
