386038
0

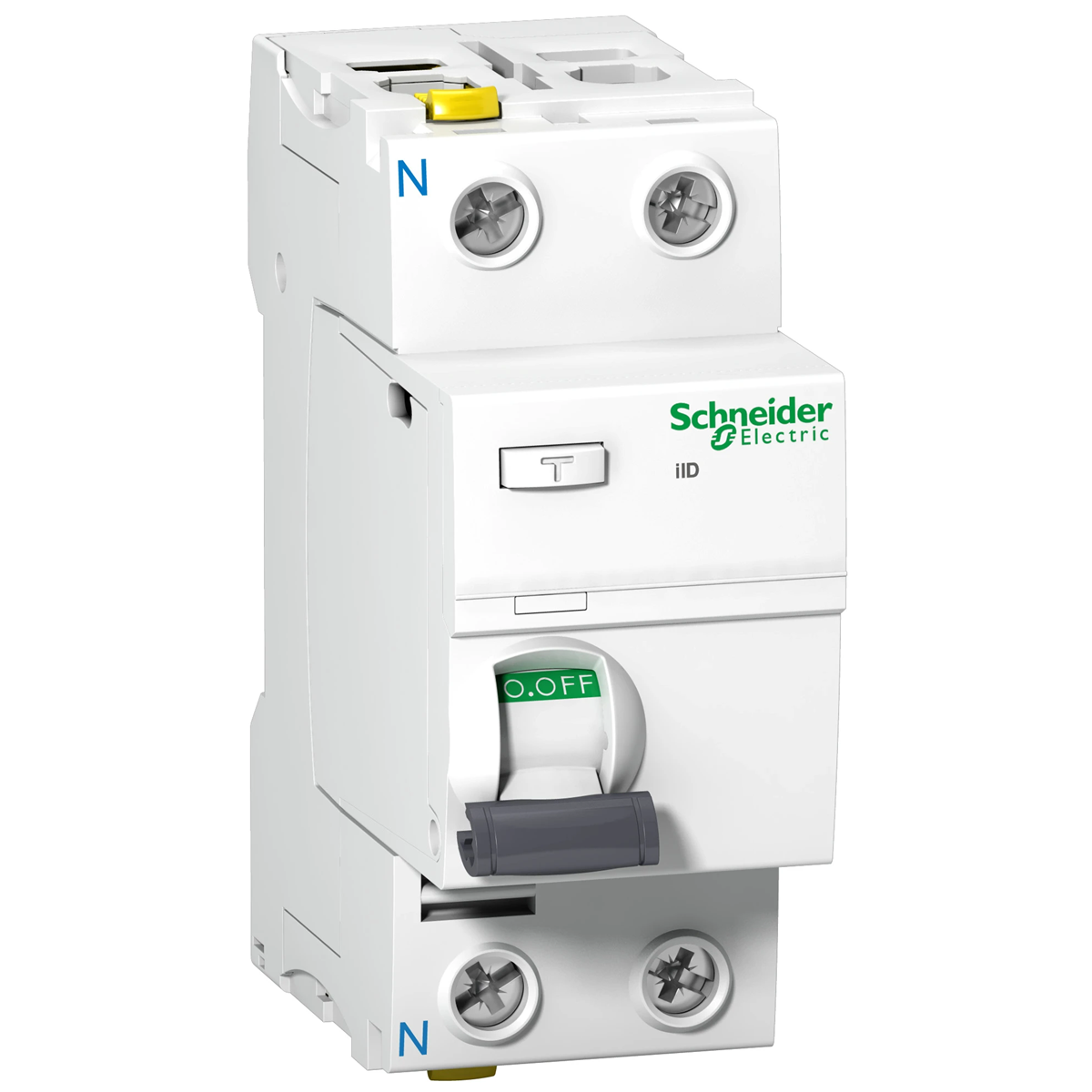

RCD 25A 2-pole 300mA type A A9Z24225
local index:
ARP119SCHN
Catalog No:
A9Z24225
EAN code:
3606480442995
Manufacturer:
SCHNEIDER ELECTRIC
Color: White
Price:
75,17 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
RCD 25A 2-pole 300mA type A
Technical data
-
ColorWhite
-
PKWIU27.12.23.0
Other technical data
-
Number of poles2
-
Rated current25 A
-
Rated insulation voltage Ui500 V
-
Mounting methodDIN rail
-
Selective protectionNo
-
Short-circuit breaking capacity (Icw)1.5 kA
-
Frequency50/60 Hz
-
With interlocking deviceYes
-
Width in number of modular spacings2
-
Ambient temperature during operating-25 ... 60 °C
-
Connectable conductor cross section multi-wired1 ... 25 mm²
-
Rated voltage230 V
-
Rated fault current0.3 mA
-
Rated impulse withstand voltage Uimp6 kV
-
Leakage current typeA
-
Short-time delayed trippingNo
-
Surge current capacity0.25 kA
-
Additional equipment possibleYes
-
Degree of protection (IP)IP20
-
Built-in depth44 mm
-
Pollution degree3
-
Connectable conductor cross section solid-core1 ... 35 mm²
