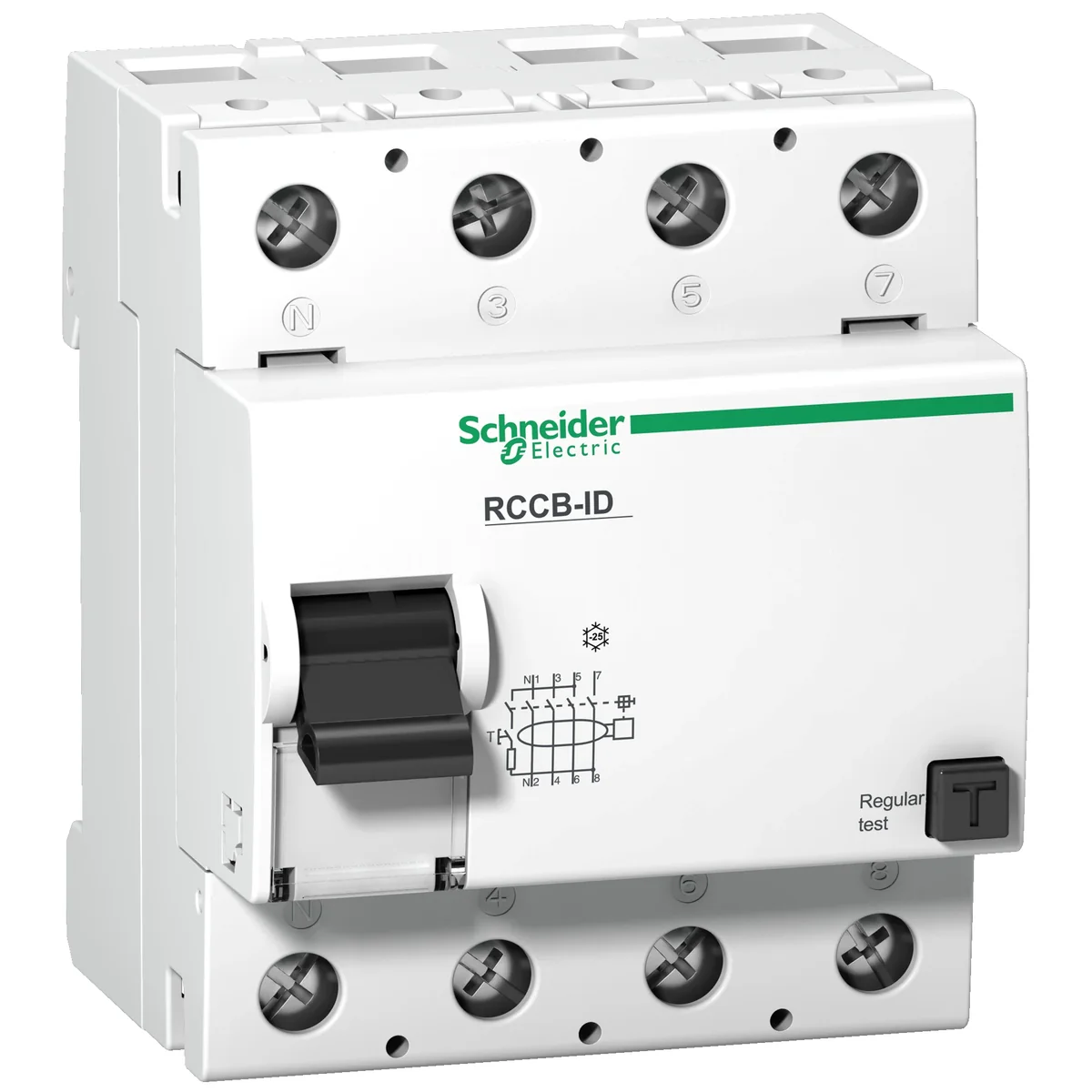

RCD 125A 4-pole 500mA type AC 16908

local index:
ARP116SCHN
Catalog No:
16908
EAN code:
3303430169086
Price:
440,65 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

RCD 125A 4-pole 500mA type AC

Technical data

  • Color
    Gray
  • PKWIU
    27.12.23.0

Other technical data

  • Number of poles
    4
  • Rated current
    125 A
  • Rated insulation voltage Ui
    440 V
  • Mounting method
    DIN rail
  • Selective protection
    No
  • Short-circuit breaking capacity (Icw)
    10 kA
  • Frequency
    50/60 Hz
  • With interlocking device
    Yes
  • Width in number of modular spacings
    4
  • Ambient temperature during operating
    -25 ... 40 °C
  • Connectable conductor cross section multi-wired
    1.5 ... 35 mm²
  • Rated voltage
    400 V
  • Rated fault current
    0.5 mA
  • Rated impulse withstand voltage Uimp
    4 kV
  • Leakage current type
    AC
  • Short-time delayed tripping
    No
  • Surge current capacity
    0.25 kA
  • Additional equipment possible
    Yes
  • Degree of protection (IP)
    IP20
  • Built-in depth
    44 mm
  • Pollution degree
    3
  • Connectable conductor cross section solid-core
    1.5 ... 50 mm²
