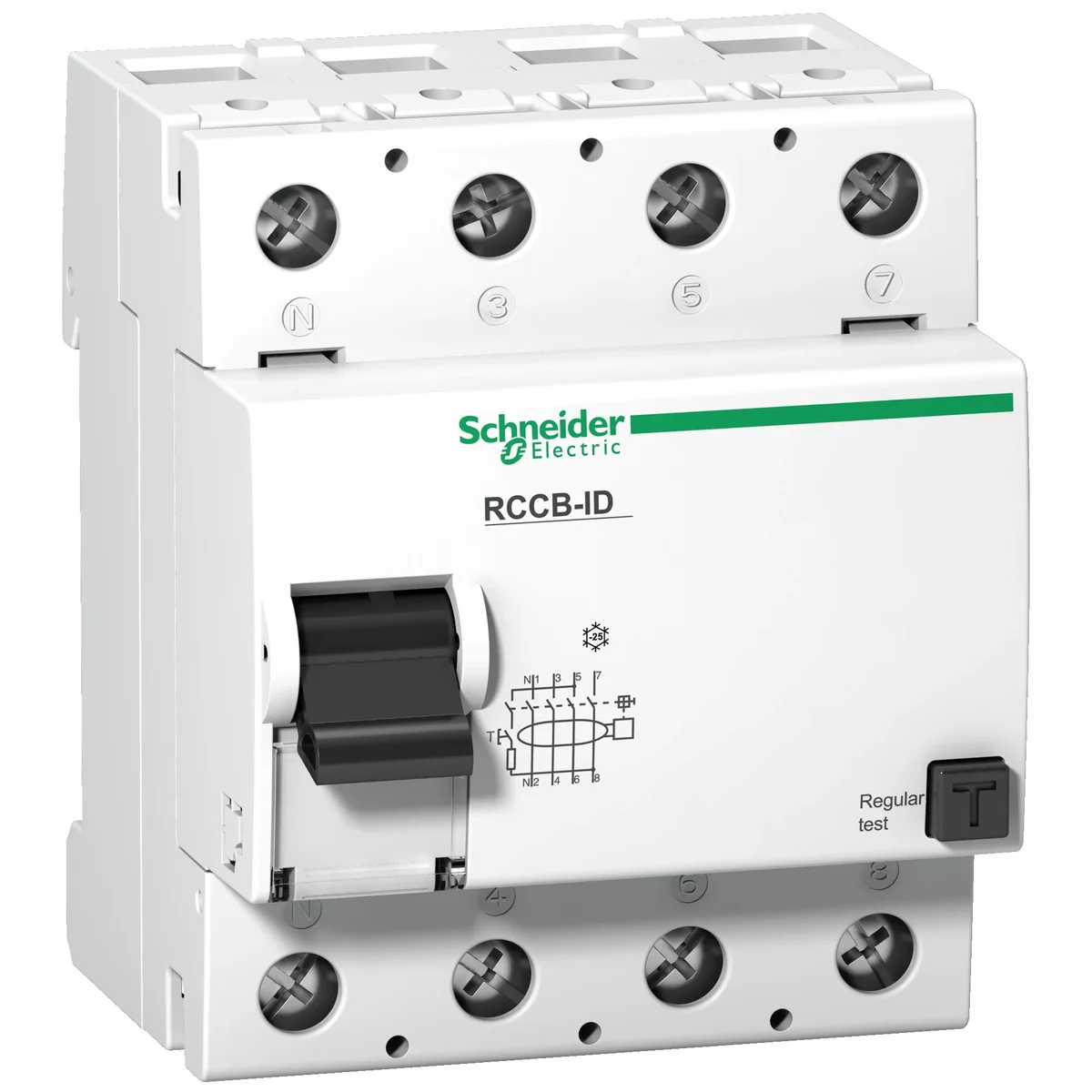

RCD 125A 4-pole 300mA type AC 16907
local index:
ARP109SCHN
Catalog No:
16907
EAN code:
3303430169079
Manufacturer:
SCHNEIDER ELECTRIC
Color: Gray
Price:
491,00 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
RCD 125A 4-pole 300mA type AC
Technical data
-
ColorGray
-
PKWIU27.12.23.0
Other technical data
-
Number of poles4
-
Rated current125 A
-
Rated insulation voltage Ui440 V
-
Mounting methodDIN rail
-
Selective protectionNo
-
Short-circuit breaking capacity (Icw)10 kA
-
Frequency50/60 Hz
-
With interlocking deviceYes
-
Width in number of modular spacings4
-
Ambient temperature during operating-25 ... 40 °C
-
Connectable conductor cross section multi-wired1.5 ... 35 mm²
-
Rated voltage400 V
-
Rated fault current0.3 mA
-
Rated impulse withstand voltage Uimp4 kV
-
Leakage current typeAC
-
Short-time delayed trippingNo
-
Surge current capacity0.25 kA
-
Additional equipment possibleYes
-
Degree of protection (IP)IP20
-
Built-in depth44 mm
-
Pollution degree3
-
Connectable conductor cross section solid-core1.5 ... 50 mm²
