Electrical apparatus
RCDs
Electric shock switches

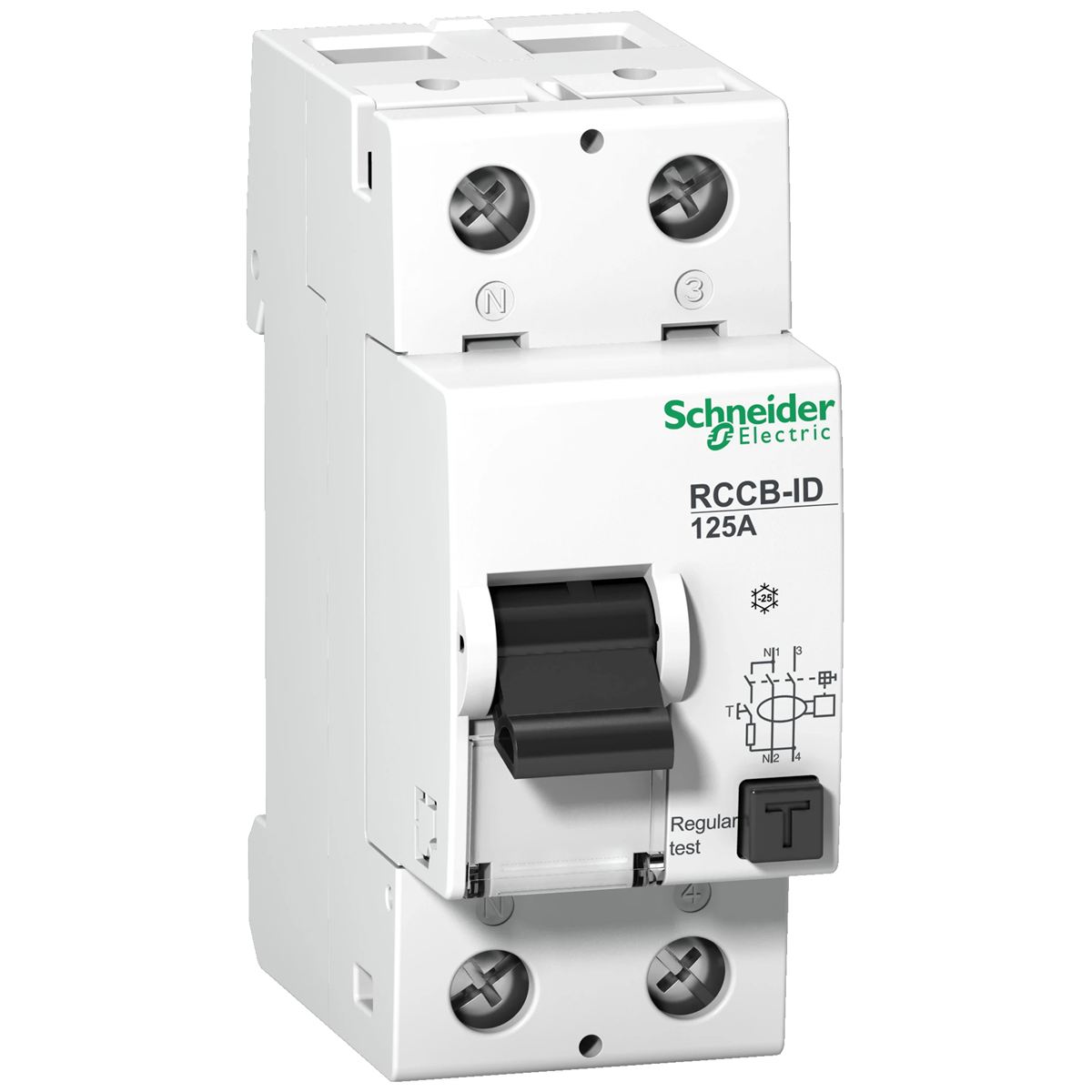

RCD 125A 2-pole 30mA type AC 16966
local index:
ARP107SCHN
Catalog No:
16966
EAN code:
3303430169666
Click on the photo to enlarge
Manufacturer:
SCHNEIDER ELECTRIC
Color:
Gray
See full description
Price:
311,12 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Product description
RCD 125A 2-pole 30mA type AC
Technical data
Color
Gray
PKWIU
27.12.23.0
Other technical data
Number of poles
2
Rated current
125 A
Rated insulation voltage Ui
440 V
Mounting method
DIN rail
Selective protection
No
Short-circuit breaking capacity (Icw)
10 kA
Frequency
50/60 Hz
With interlocking device
Yes
Width in number of modular spacings
2
Ambient temperature during operating
-25 ... 40 °C
Connectable conductor cross section multi-wired
1.5 ... 35 mm²
Rated voltage
230 V
Rated fault current
0.03 mA
Rated impulse withstand voltage Uimp
4 kV
Leakage current type
AC
Short-time delayed tripping
No
Surge current capacity
0.25 kA
Additional equipment possible
Yes
Degree of protection (IP)
IP20
Built-in depth
44 mm
Pollution degree
3
Connectable conductor cross section solid-core
1.5 ... 50 mm²
See more >>
