RCCO Residual current circuit breaker with overcurrent element 1P+N 6kA C 16A/30mA type A QC ADS966D

Name: RCCO Residual current circuit breaker with overcurrent element 1P+N 6kA C 16A/30mA type A QC
Brand: HAGER
SKU: ARB103HAGE
Price: 88.76 PLN

local index:

ARB103HAGE

Catalog No:

ADS966D

EAN code:

3250611068228

RCCO Residual current circuit breaker with overcurrent element 1P+N 6kA C 16A/30mA type A QC

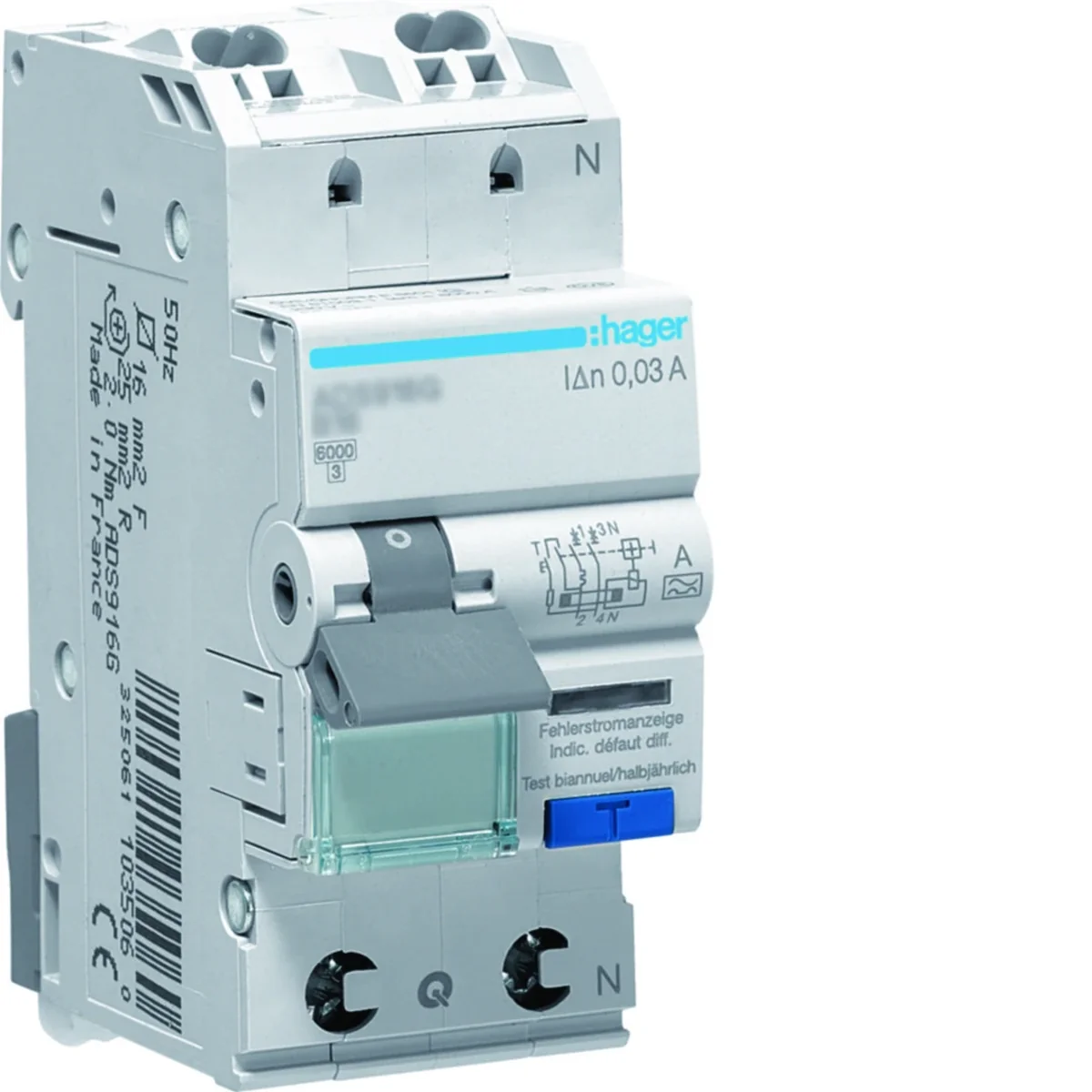

Click on the photo to enlarge

Manufacturer: HAGER

See full description

Price:

88,76 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 4 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

RCCO Residual current circuit breaker with overcurrent element 1P+N 6kA C 16A/30mA type A QC

Technical data

PKWIU

27.12.23.0

Other technical data

Number of poles (total)

2
Rated voltage

240 V
Rated impulse withstand voltage Uimp

4 kV
Rated fault current

0.03 A
Current limiting class

3
Rated short-circuit breaking capacity Icn according to EN 61009-1

6 kA
Surge current capacity

0.25 kA
Frequency

50 Hz
Concurrently switching neutral conductor

Yes
Over voltage category

3
Ambient temperature during operating

-25 ... 40 °C
Built-in depth

68 mm
Degree of protection (IP)

IP20

Number of protected poles

1
Rated insulation voltage Ui

500 V
Rated current

16 A
Leakage current type

A
Rated short-circuit breaking capacity according to IEC 60947-2

6 kA
Disconnection characteristic

Undelayed
Voltage type

AC
Release characteristic

C
With interlocking device

Yes
Pollution degree

2
Width in number of modular spacings

2
Anti-nuisance tripping version

No

Bulk packaging

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	1 pcs.	60 pcs.	1440 pcs.
Weight (kg)	0,214	0,215	13,350	343,400
Width (m)	0,035	0,080	0,320	0,800
Length (m)	0,096	0,040	0,210	1,046
Depth (m)	0,075	0,095	0,360	1,200
