RCCO Residual current circuit breaker with overcurrent element 1P+N 6kA C 10A/30mA type A QC ADS960D

Name: RCCO Residual current circuit breaker with overcurrent element 1P+N 6kA C 10A/30mA type A QC
Brand: HAGER
SKU: ARB120HAGE
Price: 87.28 PLN

local index:

ARB120HAGE

Catalog No:

ADS960D

EAN code:

3250611068204

RCCO Residual current circuit breaker with overcurrent element 1P+N 6kA C 10A/30mA type A QC

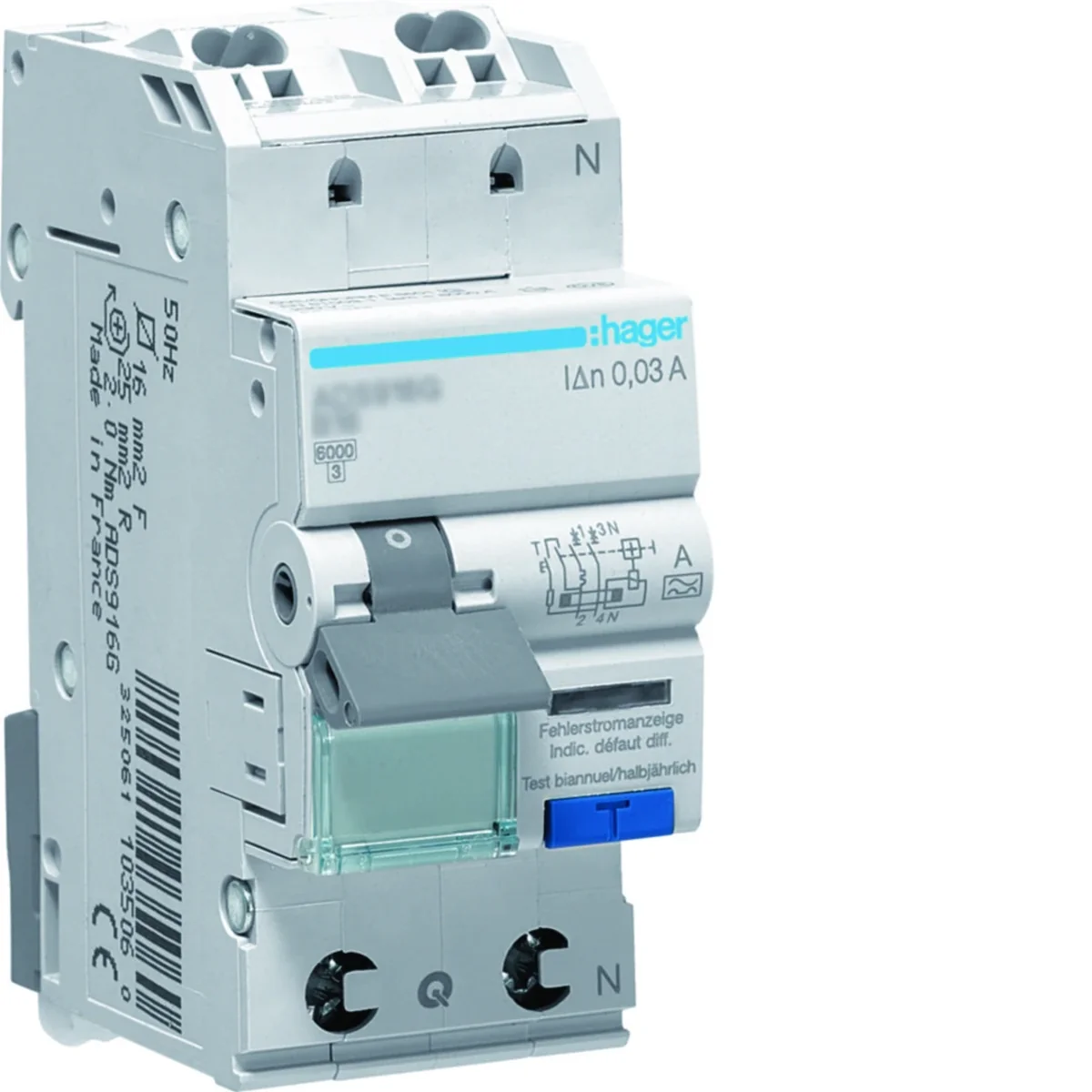

Click on the photo to enlarge

Manufacturer: HAGER

See full description

Price:

87,28 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 2 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging

Product description

RCCO Residual current circuit breaker with overcurrent element 1P+N 6kA C 10A/30mA type A QC

Technical data

Other technical data

Number of poles (total)

2
Rated voltage

240 V
Rated impulse withstand voltage Uimp

4 kV
Rated fault current

0.03 A
Current limiting class

3
Rated short-circuit breaking capacity Icn according to EN 61009-1

6 kA
Surge current capacity

0.25 kA
Frequency

50 Hz
Concurrently switching neutral conductor

Yes
Over voltage category

3
Ambient temperature during operating

-25 ... 40 °C
Built-in depth

68 mm
Anti-nuisance tripping version

No

Number of protected poles

1
Rated insulation voltage Ui

500 V
Rated current

10 A
Leakage current type

A
Rated short-circuit breaking capacity according to IEC 60947-2

6 kA
Disconnection characteristic

Undelayed
Voltage type

AC
Release characteristic

C
With interlocking device

Yes
Pollution degree

2
Width in number of modular spacings

2
Flush-mounted installation

Yes
Degree of protection (IP)

IP2X

Manufacturer details

Manufacturer

HAGER POLO Sp. z o. o.
Address

43-100 Tychy Fabryczna 10
E-mail

zamowienia@hager.pl
WWW

https://www.hagergroup.pl
Tax identification number

6460015532
GLN

5900009931532

Bulk packaging

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	1 pcs.	60 pcs.	1440 pcs.
Weight (kg)	0,209	0,215	13,320	342,680
Width (m)	0,035	0,080	0,315	0,800
Length (m)	0,096	0,040	0,215	1,026
Depth (m)	0,075	0,100	0,360	1,200
