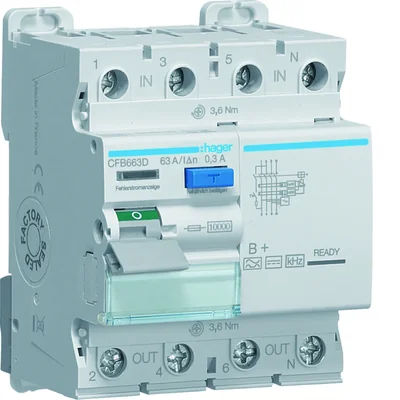

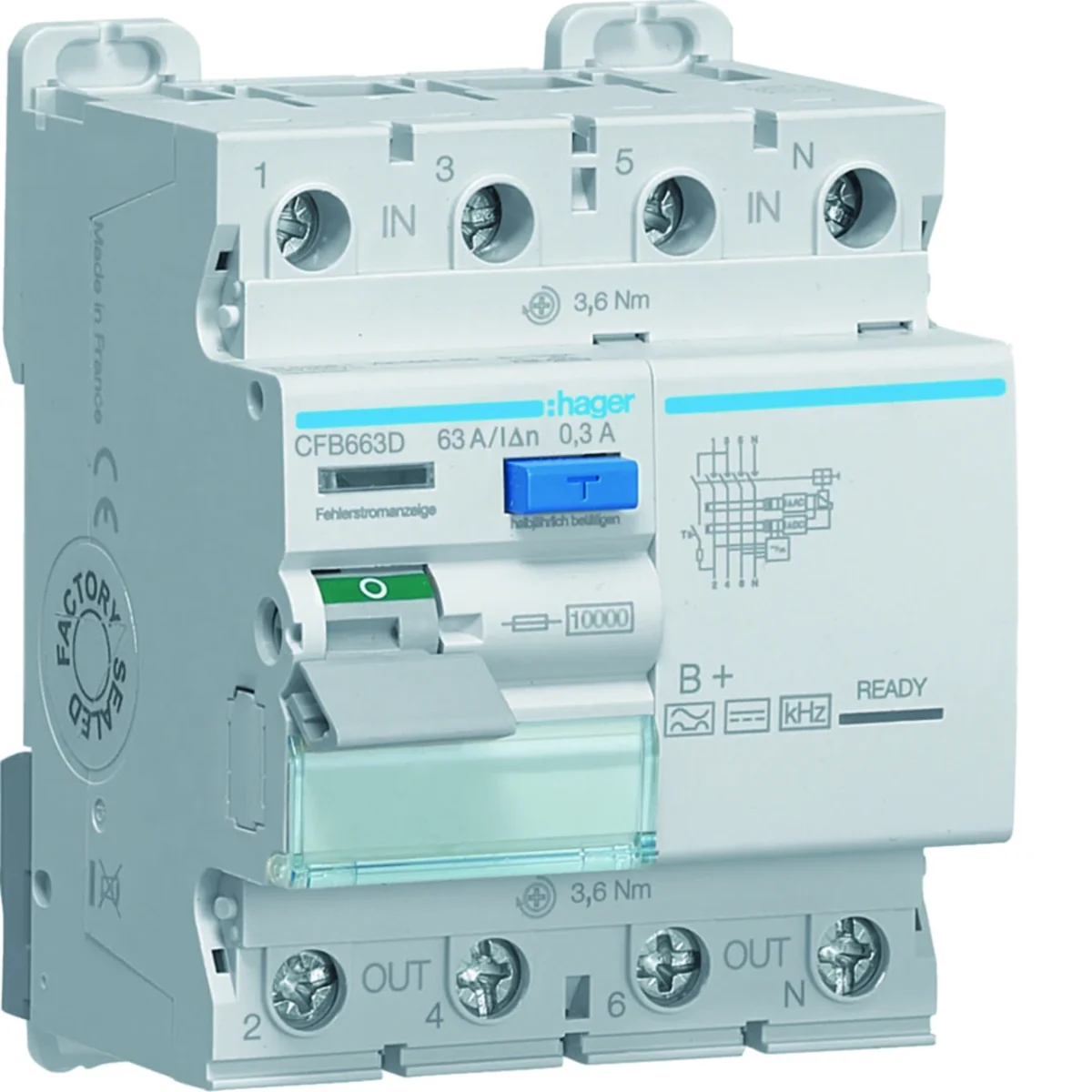

RCCB Residual current circuit breaker 3P+N 63A 300mA 10kA B+ CFB663D

local index:
ARP046HAGE
Catalog No:
CFB663D
EAN code:
3250611627746
Manufacturer: HAGER
Family: RCCB
Price:
914,82 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

RCCB Residual current circuit breaker 3P+N 63A 300mA 10kA B+

Technical data

  • Family
    RCCB
  • PKWIU
    27.12.23.0

Other technical data

  • Number of poles
    4
  • Rated current
    63 A
  • Rated insulation voltage Ui
    400 V
  • Mounting method
    DIN rail
  • Selective protection
    No
  • Short-circuit breaking capacity (Icw)
    10 kA
  • With interlocking device
    Yes
  • Additional equipment possible
    Yes
  • Width in number of modular spacings
    4
  • Ambient temperature during operating
    -25 ... 70 °C
  • Connectable conductor cross section multi-wired
    1 ... 16 mm²
  • Rated voltage
    400 V
  • Rated fault current
    300 A
  • Rated impulse withstand voltage Uimp
    4 kV
  • Leakage current type
    B+
  • Short-time delayed tripping
    No
  • Surge current capacity
    5 kA
  • Frequency
    50 Hz
  • Degree of protection (IP)
    IP20
  • Built-in depth
    70 mm
  • Pollution degree
    2
  • Connectable conductor cross section solid-core
    1 ... 25 mm²

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 33 pcs. 792 pcs.
Weight (kg) 0,399 0,420 14,275 365,600
Width (m) 0,072 0,080 0,315 0,800
Length (m) 0,095 0,080 0,215 1,110
Depth (m) 0,075 0,100 0,365 1,200
