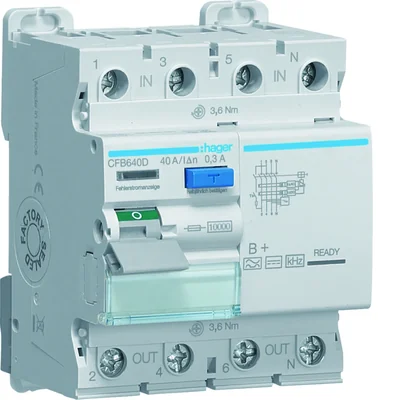

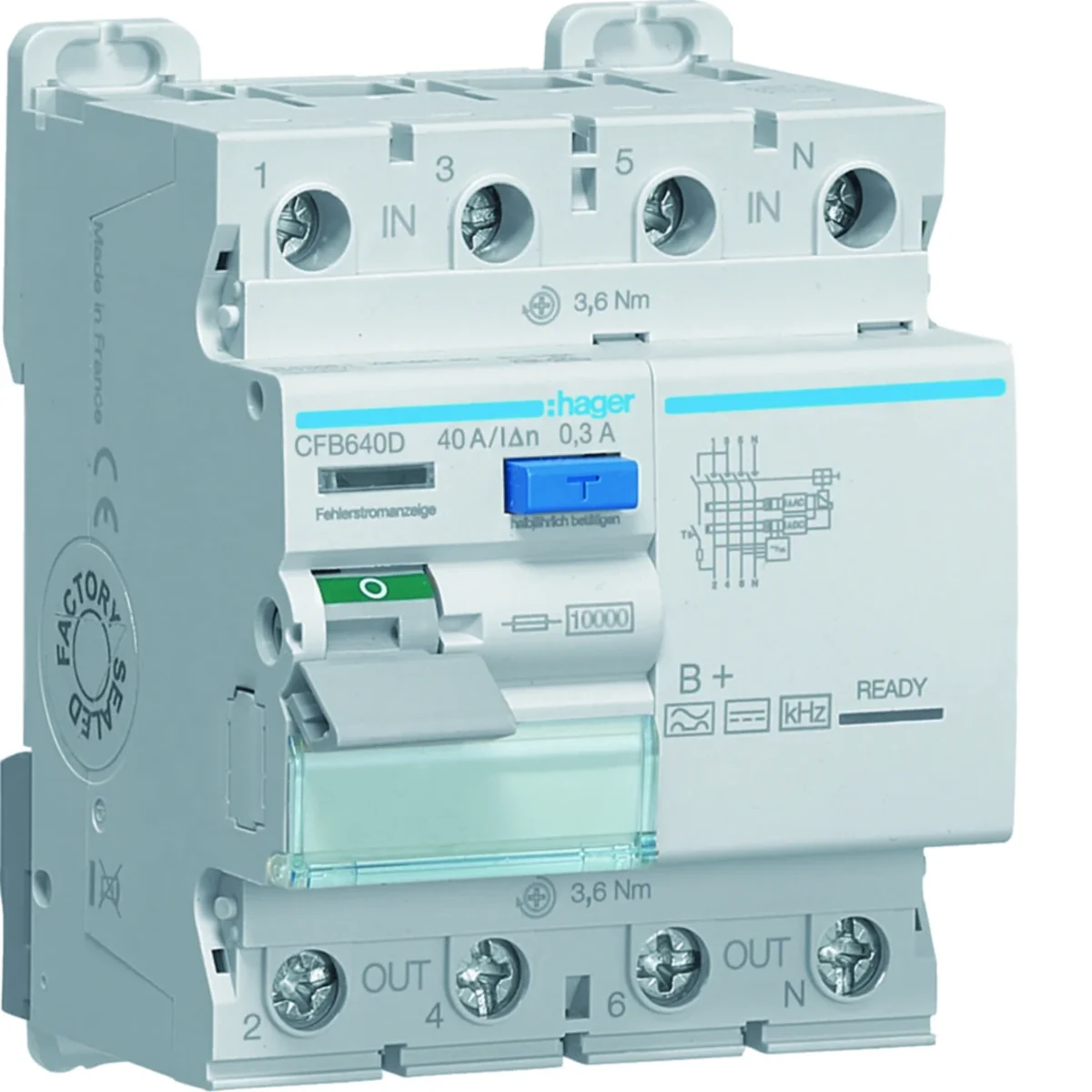

RCCB Residual current circuit breaker 3P+N 40A 300mA 10kA B+ CFB640D
local index:
ARB129HAGE
Catalog No:
CFB640D
EAN code:
3250611627739
Manufacturer:
HAGER
Family: RCCB
Price:
702,42 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
RCCB Residual current circuit breaker 3P+N 40A 300mA 10kA B+
Technical data
-
FamilyRCCB
Other technical data
-
Number of poles4
-
Rated current40 A
-
Rated insulation voltage Ui400 V
-
Mounting methodDIN rail
-
Selective protectionNo
-
Short-circuit breaking capacity (Icw)10 kA
-
Voltage typeAC
-
Frequency50 Hz
-
Degree of protection (IP)IP20
-
Built-in depth70 mm
-
Pollution degree2
-
Connectable conductor cross section solid-core1 ... 25 mm²
-
Rated voltage400 V
-
Rated fault current0.3 A
-
Rated impulse withstand voltage Uimp4 kV
-
Leakage current typeB+
-
Short-time delayed trippingNo
-
Surge current capacity5 kA
-
With interlocking deviceYes
-
Additional equipment possibleYes
-
Width in number of modular spacings4
-
Ambient temperature during operating-25 ... 70 °C
-
Connectable conductor cross section multi-wired1 ... 16 mm²
-
Explosion-proofNo
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 33 pcs. | 792 pcs. |
| Weight (kg) | 0,399 | 0,425 | 14,405 | 368,720 |
| Width (m) | 0,072 | 0,080 | 0,315 | 0,800 |
| Length (m) | 0,095 | 0,075 | 0,215 | 1,050 |
| Depth (m) | 0,075 | 0,105 | 0,360 | 1,200 |
