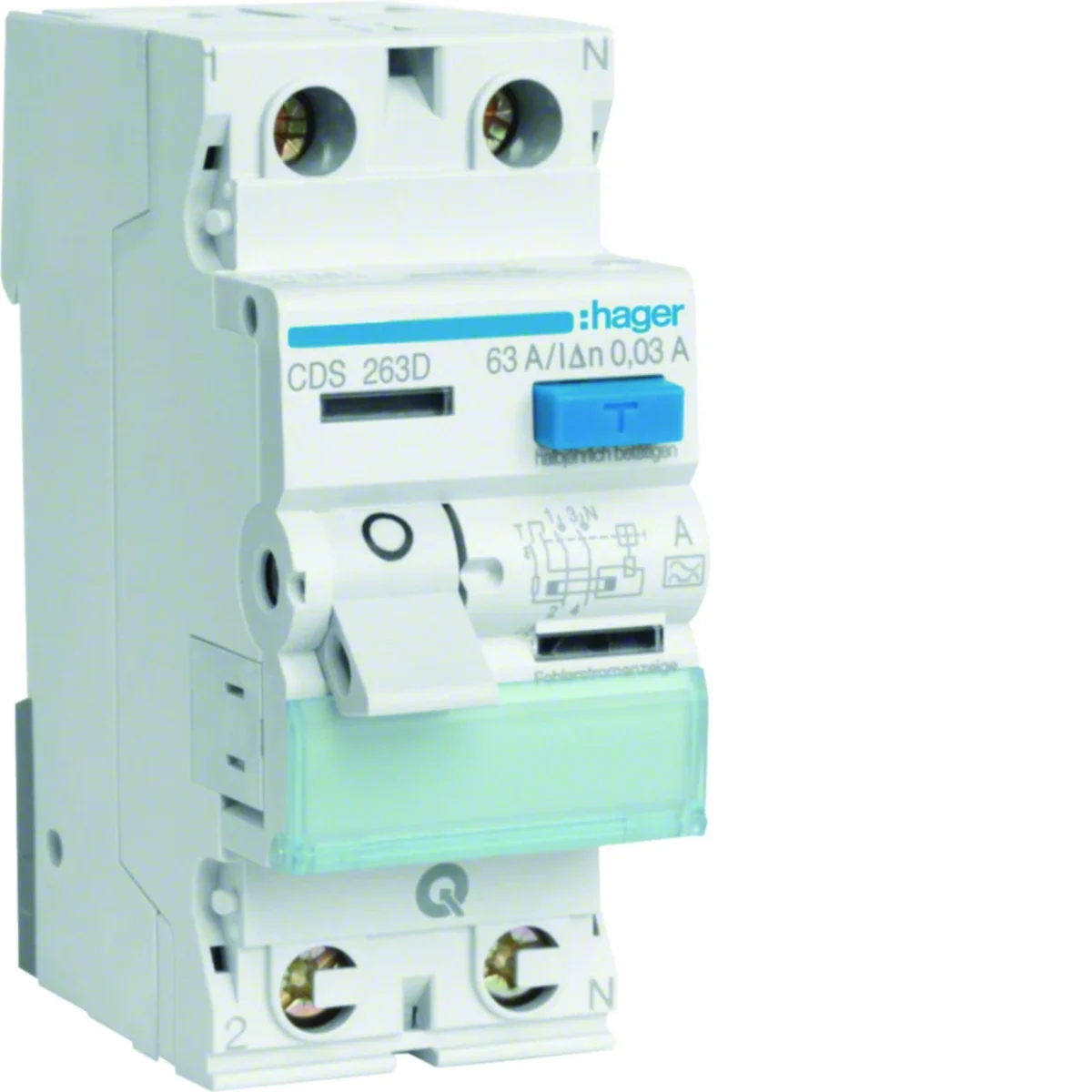

RCCB Residual current circuit breaker 1P+N 63A/30mA Type A QuickConnect CDS263D

local index:
ARB127HAGE
Catalog No:
CDS263D
EAN code:
3250611610847
Manufacturer: HAGER
Family: RCCB
Price:
72,15 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

RCCB Residual current circuit breaker 1P+N 63A/30mA Type A QuickConnect

Technical data

  • Family
    RCCB

Other technical data

  • Number of poles
    2
  • Rated current
    63 A
  • Rated insulation voltage Ui
    500 V
  • Mounting method
    DIN rail
  • Selective protection
    No
  • Short-circuit breaking capacity (Icw)
    6 kA
  • Voltage type
    AC
  • Frequency
    50 Hz
  • Degree of protection (IP)
    IP20
  • Built-in depth
    70 mm
  • Pollution degree
    2
  • Connectable conductor cross section solid-core
    1 ... 25 mm²
  • Rated voltage
    230 V
  • Rated fault current
    0.03 A
  • Rated impulse withstand voltage Uimp
    4 kV
  • Leakage current type
    A
  • Short-time delayed tripping
    No
  • Surge current capacity
    0.25 kA
  • With interlocking device
    Yes
  • Additional equipment possible
    Yes
  • Width in number of modular spacings
    2
  • Ambient temperature during operating
    -25 ... 40 °C
  • Connectable conductor cross section multi-wired
    1 ... 16 mm²
  • Explosion-proof
    No

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 60 pcs. 1440 pcs.
Weight (kg) 0,200 0,215 13,510 347,240
Width (m) 0,035 0,080 0,315 0,800
Length (m) 0,085 0,045 0,215 0,990
Depth (m) 0,073 0,100 0,360 1,200
