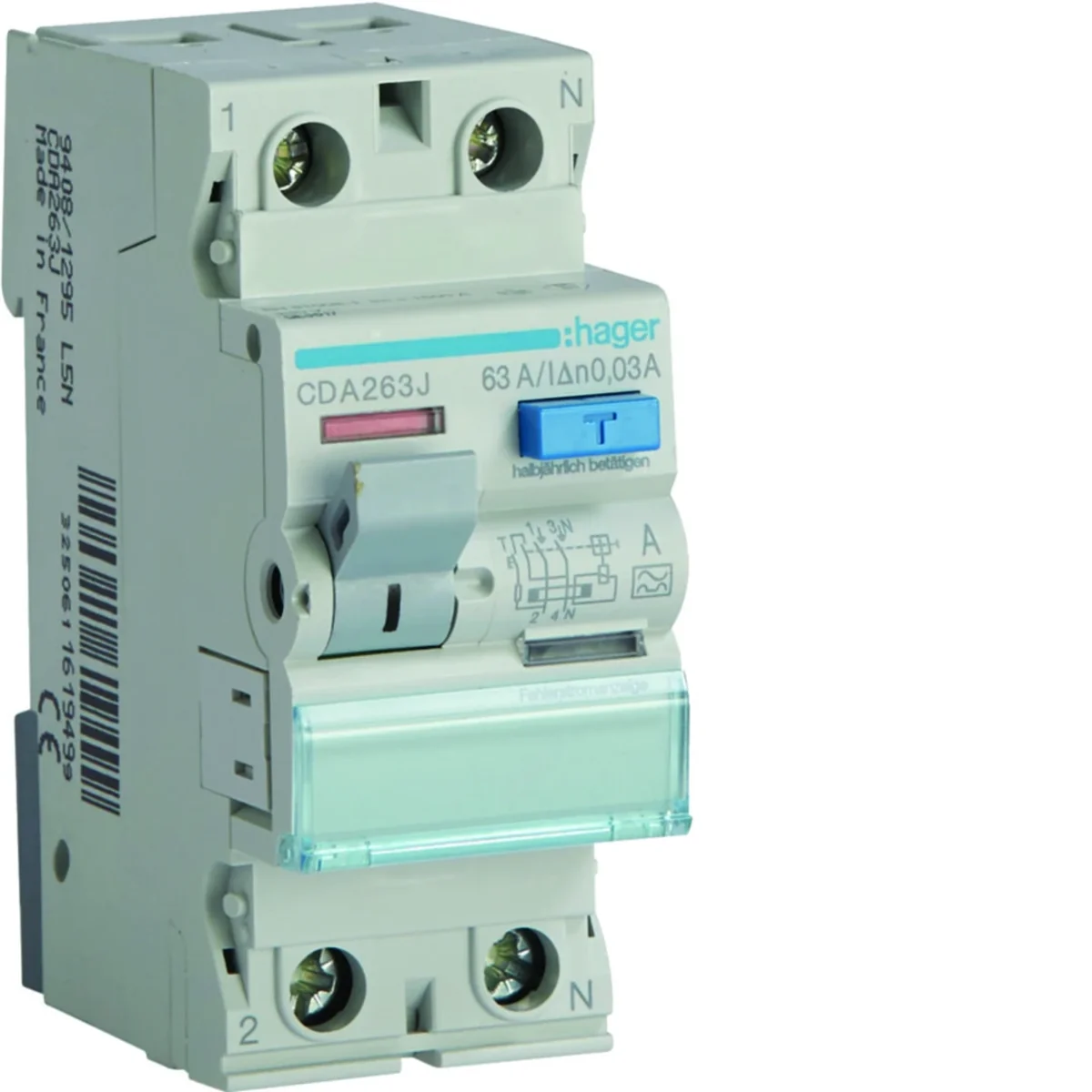

RCCB 2P 63A/30mA Type A Residual Current Circuit Breaker CDA263J

local index:
ARP028HAGE
Catalog No:
CDA263J
EAN code:
3250611619499
Manufacturer: HAGER
Rated frequency [Hz]: 50
Depth [mm]: 70
Number of poles: 2
Price:
72,55 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

RCCB 2P 63A/30mA Type A Residual Current Circuit Breaker

Technical data

  • Rated frequency [Hz]
    50
  • Number of poles
    2
  • Rated insulation voltage [V]
    500
  • Rated current [A]
    63
  • power loss [W]
    8.1
  • Width [mm]
    35
  • Height [mm]
    83
  • Mechanical durability (number of cycles)
    4000
  • Rated switching voltage [V]
    230
  • Number of modules
    2
  • Rated current at 30°C [A]
    63
  • Rated current at 45°C [A]
    63
  • Rated current at 55°C [A]
    63
  • Rated current at 65°C [A]
    49
  • storage temperature [°C]
    from -55 to 70
  • Wire cross-section (cord) [mm²]
    16
  • PKWIU
    27.12.23.0
  • Depth [mm]
    70
  • Tightening torque [Nm]
    2.8
  • Differential current [mA]
    thirty
  • Level of security
    IP20
  • Power loss per pole [W]
    4.1
  • Connection type
    With a screw
  • Electrical endurance (number of cycles)
    2000
  • Operating temperature range [°C]
    from -25 to 40
  • Rated impulse voltage [kV]
    4
  • Rated current at 20°C [A]
    63
  • Rated current at 40°C [A]
    63
  • Rated current at 50°C [A]
    63
  • Rated current at 60°C [A]
    56
  • Rated current at 70°C [A]
    40
  • RCD type
    AND
  • Conductor cross-section (wire) [mm²]
    25

Other technical data

  • Number of poles
    2
  • Rated current
    63 A
  • Rated insulation voltage Ui
    500 V
  • Mounting method
    DIN rail
  • Selective protection
    No
  • Short-circuit breaking capacity (Icw)
    6 kA
  • With interlocking device
    No
  • Additional equipment possible
    Yes
  • Width in number of modular spacings
    2
  • Ambient temperature during operating
    -25 ... 40 °C
  • Connectable conductor cross section multi-wired
    1 ... 16 mm²
  • Rated voltage
    230 V
  • Rated fault current
    30 A
  • Rated impulse withstand voltage Uimp
    4 kV
  • Leakage current type
    A
  • Short-time delayed tripping
    No
  • Surge current capacity
    0.25 kA
  • Frequency
    50 Hz
  • Degree of protection (IP)
    IP20
  • Built-in depth
    70 mm
  • Pollution degree
    2
  • Connectable conductor cross section solid-core
    1 ... 25 mm²

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 60 pcs. 1440 pcs.
Weight (kg) 0,003 0,215 13,215 340,160
Width (m) 0,035 0,080 0,315 0,800
Length (m) 0,085 0,040 0,215 1,034
Depth (m) 0,073 0,100 0,360 1,200
