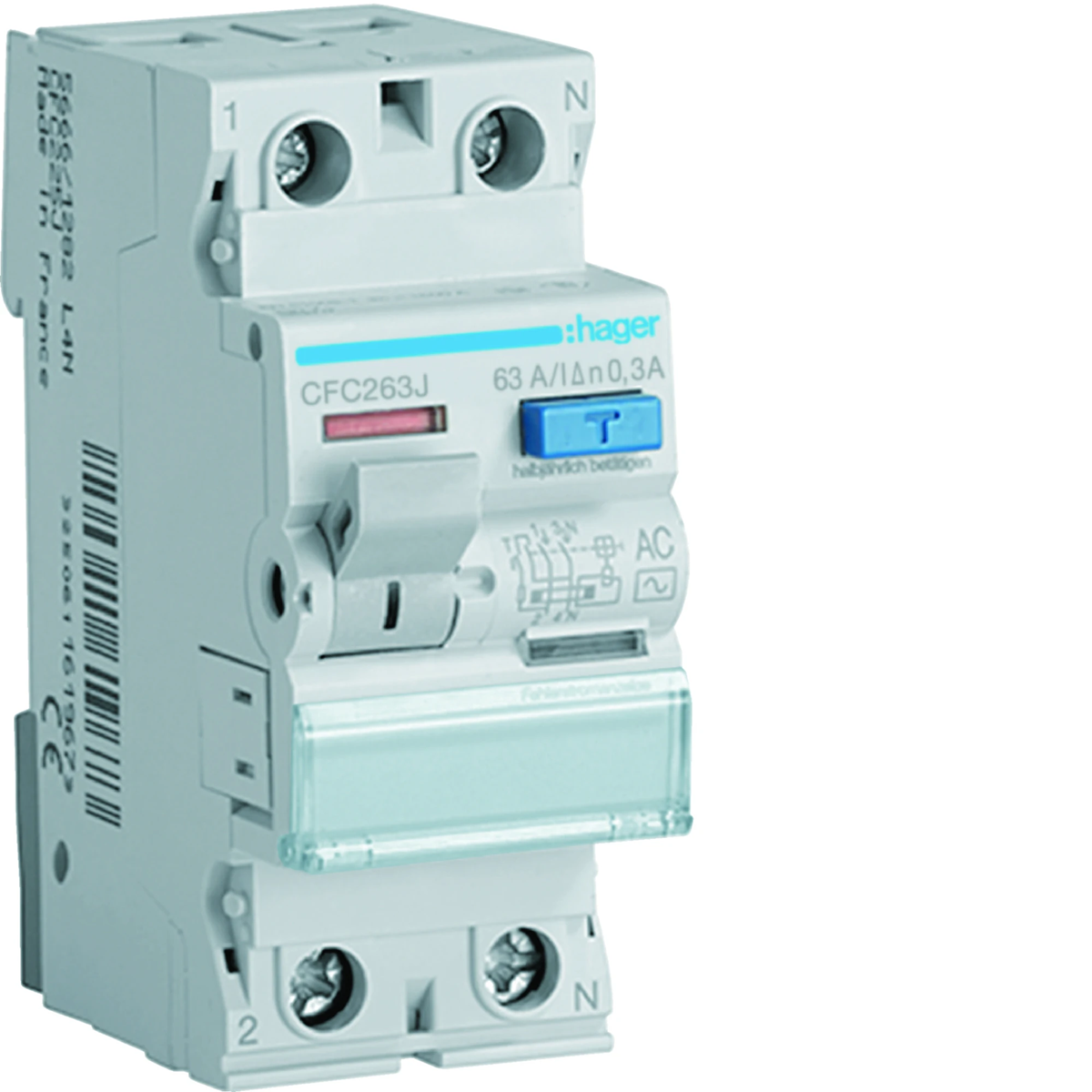

RCCB 2P 63A/300mA RCD Type AC CFC263J
local index:
ARB082HAGE
Catalog No:
CFC263J
EAN code:
3250611619727
Price:
86,95 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
RCD of the RCCB series:
- type AC
- rated making and breaking capacity (Im) : 1500 A,
- optical indication of circuit breaker (circuit breaker opening/closing and circuit breaker tripping due to residual current
Technical data
-
Rated frequency [Hz]50
-
Number of poles2
-
Rated insulation voltage [V]500
-
Rated current [A]63
-
Level of securityIP20
-
Power loss per pole [W]4.6
-
Connection typeWith a screw
-
Electrical endurance (number of cycles)2000
-
Operating temperature range [°C]from -25 to 40
-
Rated impulse voltage [kV]4
-
Rated current at 20°C [A]63
-
Rated current at 40°C [A]63
-
Rated current at 50°C [A]63
-
Rated current at 60°C [A]56
-
Rated current at 70°C [A]40
-
RCD typeAC
-
Conductor cross-section (wire) [mm²]25
-
Depth [mm]70
-
Tightening torque [Nm]2.8
-
Differential current [mA]300
-
FamilyRCCB
-
power loss [W]8.7
-
Width [mm]35
-
Height [mm]83
-
Mechanical durability (number of cycles)4000
-
Rated switching voltage [V]230
-
Number of modules2
-
Rated current at 30°C [A]63
-
Rated current at 45°C [A]63
-
Rated current at 55°C [A]63
-
Rated current at 65°C [A]49
-
storage temperature [°C]from -55 to 70
-
Wire cross-section (cord) [mm²]16
-
PKWIU27.12.23.0
Other technical data
-
Number of poles2
-
Rated current63 A
-
Rated insulation voltage Ui500 V
-
Mounting methodDIN rail
-
Selective protectionNo
-
Short-circuit breaking capacity (Icw)6 kA
-
With interlocking deviceNo
-
Additional equipment possibleYes
-
Width in number of modular spacings2
-
Ambient temperature during operating-25 ... 40 °C
-
Connectable conductor cross section multi-wired1 ... 16 mm²
-
Rated voltage230 V
-
Rated fault current300 A
-
Rated impulse withstand voltage Uimp4 kV
-
Leakage current typeAC
-
Short-time delayed trippingNo
-
Surge current capacity0.25 kA
-
Frequency50 Hz
-
Degree of protection (IP)IP20
-
Built-in depth70 mm
-
Pollution degree2
-
Connectable conductor cross section solid-core1 ... 25 mm²
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
E-mail
-
Tax identification number6460015532
-
GLN5900009931532
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 60 pcs. | 1440 pcs. |
| Weight (kg) | 0,179 | 0,193 | 12,564 | 318,760 |
| Width (m) | 0,035 | 0,080 | 0,316 | 0,800 |
| Length (m) | 0,085 | 0,040 | 0,226 | 1,054 |
| Depth (m) | 0,073 | 0,100 | 0,370 | 1,200 |
