RCCB 2P 40A/300mA Type A Residual Current Circuit Breaker CFA240J

Name: RCCB 2P 40A/300mA Type A Residual Current Circuit Breaker
Brand: HAGER
SKU: ARB079HAGE
Price: 228.66 PLN
Availability: BackOrder

Índice local:

ARB079HAGE

Número de catálogo:

CFA240J

Código EAN:

3250611619659

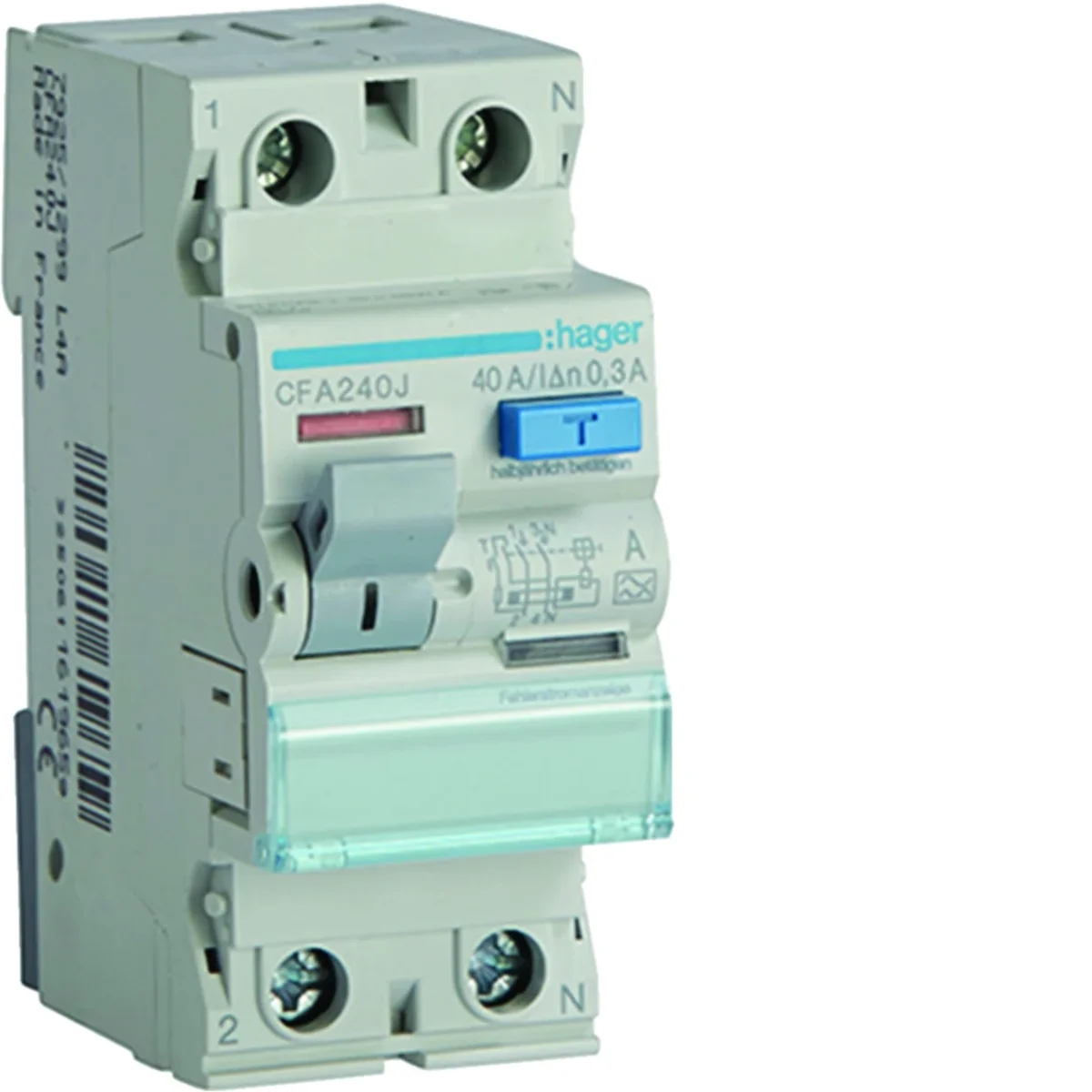

RCCB 2P 40A/300mA Type A Residual Current Circuit Breaker

Haga clic en la foto para ampliar

Fabricante: HAGER

Rated frequency [Hz]: 50

Depth [mm]: 70

Number of poles: 2

Ver descripción completa

Precio:

228,66 zł

gross / uds.

(IVA incluido 23%)

hasta 4 semanas

Por encargo

Cantidad uds.

(múltiple:

)

Añadir a solicitud de presupuesto

Añadir al portapapeles

Imprimir

Pregunta por el producto

Descripción del producto Datos técnicos Detalles del fabricante Empaquetado a granel Archivos para descargar

Descripción del producto

RCCBseries RCCB:

type A
rated making and breaking capacity (Im) : 1500 A,
optical indication of circuit breaker (circuit breaker opening/closing and circuit breaker tripping due to residual current

Datos técnicos

Rated frequency [Hz]

50
Number of poles

2
Rated insulation voltage [V]

500
Rated current [A]

40
Level of security

IP20
Power loss per pole [W]

1.7
Connection type

With a screw
Electrical endurance (number of cycles)

2000
Operating temperature range [°C]

from -25 to 40
Rated impulse voltage [kV]

4
Rated current at 20°C [A]

40
Rated current at 40°C [A]

40
Rated current at 50°C [A]

37
Rated current at 60°C [A]

thirty
Rated current at 70°C [A]

21
RCD type

AND
Conductor cross-section (wire) [mm²]

25

Depth [mm]

70
Tightening torque [Nm]

2.8
Differential current [mA]

300
Family

RCCB
power loss [W]

3.2
Width [mm]

35
Height [mm]

83
Mechanical durability (number of cycles)

4000
Rated switching voltage [V]

230
Number of modules

2
Rated current at 30°C [A]

40
Rated current at 45°C [A]

38
Rated current at 55°C [A]

34
Rated current at 65°C [A]

26
storage temperature [°C]

from -55 to 70
Wire cross-section (cord) [mm²]

16
PKWIU

27.12.23.0

Otros datos técnicos

Number of poles

2
Rated current

40 A
Rated insulation voltage Ui

500 V
Power loss

3.2 W
Leakage current type

A
Short-time delayed tripping

No
Surge current capacity

0.25 kA
With interlocking device

No
Additional equipment possible

Yes
Width in number of modular spacings

2
Ambient temperature during operating

-25 ... 40 °C
Connectable conductor cross section multi-wired

1 ... 16 mm²
RAL-number (similar)

7005

Rated voltage

230 V
Rated fault current

0.3 A
Rated impulse withstand voltage Uimp

4 kV
Mounting method

DIN rail
Selective protection

No
Short-circuit breaking capacity (Icw)

6 kA
Voltage type

AC
Frequency

50 Hz
Degree of protection (IP)

IP20
Built-in depth

70 mm
Pollution degree

2
Connectable conductor cross section solid-core

1 ... 25 mm²
Explosion-proof

No

Detalles del fabricante

Fabricante

Hager Electro S.A.S.
Dirección

FR 67215 Obernai 123 boulevard d’Europe Francja
Email

wsparcie.klienta@hager.com

Empaquetado a granel

una especie de paquete	Karton	Pakiet	Paleta
Cantidad	1 uds.	60 uds.	1440 uds.
Peso (kg)	0,195	12,075	312,800
Ancho (m)	0,080	0,310	0,800
Longitud (m)	0,040	0,210	1,020
Profundidad (m)	0,100	0,360	1,200
