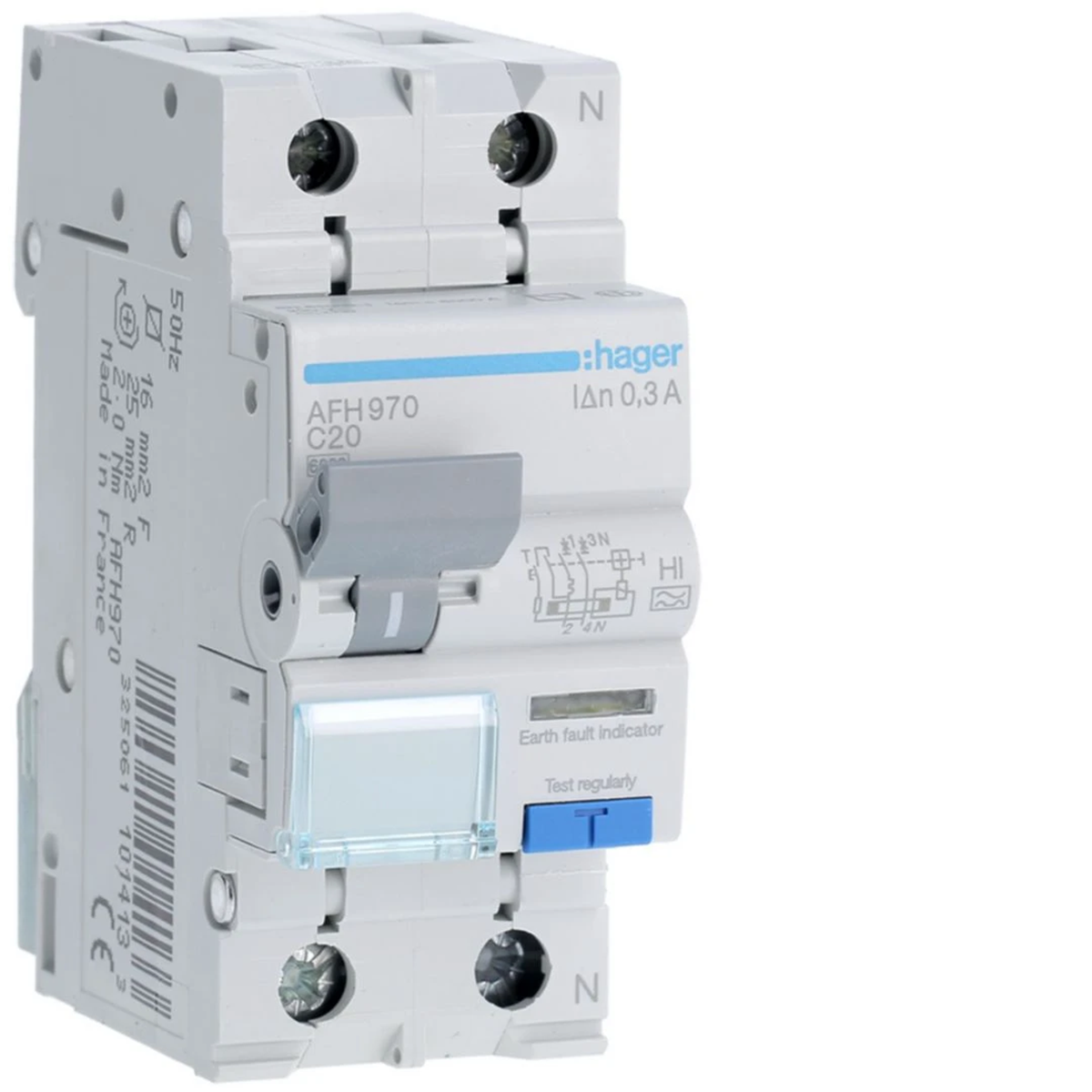

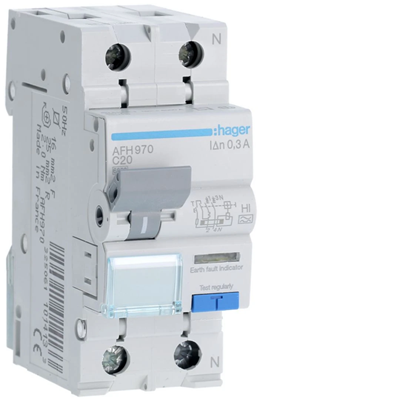

RCBO Short delay residual current circuit breaker with overcurrent element 1P+N 6kA C 20A/300mA Type A-HI AFH970
Indeks lokalny:
ARB074HAGE
Nr katalogowy:
AFH970
Kod EAN:
3250611014133
Cena:
118,50 €
gross / szt.
(w tym VAT 23%)
Dostawa do 3h
Odbiór za 1h
Ilość szt.
(wielokrotność:
1
)
Dodaj do zapytania ofertowego
Dodaj do schowka
Drukuj
Zapytaj o produkt
Opis produktu
RCBO RCBO:
- 1P+N,
- short delay [HI],
- sensitive to sinusoidal alternating and pulsating residual currents with a DC component (A),
- short circuit capacity Icn = 6000 A,
- optical residual current trip indicator,
- optical main contacts position indicator,
- description field with a protective flap.
Dane techniczne
-
Characteristicc
-
Depth [mm]68
-
Tightening torque [Nm]1.3
-
Differential current [mA]300
-
FamilyRCBO
-
power loss [W]5.2
-
Width [mm]35
-
Height [mm]83
-
Mechanical durability (number of cycles)2000
-
Rated switching voltage [V]240
-
Rated short-circuit breaking capacity Icn [kA]6
-
Max/min value of the AC current of the protection activation5/10 In
-
Ultimate short-circuit breaking capacity Icu for 240V [kA]6
-
Rated current at 30°C [A]20
-
Rated current at 45°C [A]19.4
-
Rated current at 55°C [A]19
-
storage temperature [°C]from -25 to 70
-
Rated current correction factor for 2 devices installed side by side1
-
Rated surge voltage [V]4000
-
Wire cross-section (cord) [mm²]1 - 16
-
PKWIU27.12.22.0
-
Rated frequency [Hz]50
-
Number of poles2
-
Rated insulation voltage [V]500
-
Rated current [A]20
-
Level of securityIP20
-
Power loss per pole [W]4
-
Connection typeWith a screw
-
Electrical endurance (number of cycles)2000
-
Operating temperature range [°C]from -25 to 40
-
Short-circuit breaking capacity [kA]6
-
Number of modules2
-
Ultimate short-circuit breaking capacity Icu for 230V [kA]6
-
Rated current at 20°C [A]20.5
-
Rated current at 40°C [A]19.6
-
Rated current at 50°C [A]19.2
-
Rated current at 60°C [A]18.8
-
RCD typeHI
-
Rated current correction factor for 3 devices installed side by side0.95
-
Number of protected poles1
-
Conductor cross-section (wire) [mm²]1 - 25
Pozostałe dane techniczne
-
Number of poles (total)2
-
Rated voltage240 V
-
Rated impulse withstand voltage Uimp4 kV
-
Rated fault current0.3 A
-
Rated short-circuit breaking capacity according to IEC 60947-26 kA
-
Disconnection characteristicUndelayed
-
Voltage typeAC
-
Release characteristicC
-
With interlocking deviceNo
-
Pollution degree2
-
Width in number of modular spacings2
-
Anti-nuisance tripping versionNo
-
Connectable conductor cross section solid-core1 ... 25 mm²
-
Number of protected poles1
-
Rated insulation voltage Ui500 V
-
Rated current20 A
-
Current limiting class3
-
Rated short-circuit breaking capacity Icn according to EN 61009-16 kA
-
Surge current capacity3 kA
-
Frequency50 Hz
-
Concurrently switching neutral conductorYes
-
Over voltage category3
-
Ambient temperature during operating-25 ... 40 °C
-
Built-in depth68 mm
-
Degree of protection (IP)IP20
-
Connectable conductor cross section multi-wired1 ... 16 mm²
Dane producenta
-
ProducentHager Electro S.A.S.
-
AdresFR 67215 Obernai 123 boulevard d’Europe Francja
Opakowania zbiorcze
| Rodzaj opakowania | Karton | Pakiet | Paleta |
| Ilość | 1 szt. | 60 szt. | 1440 szt. |
| Waga (kg) | 0,210 | 13,020 | 312,480 |
| Szerokość (m) | 0,080 | 0,310 | 0,800 |
| Długość (m) | 0,040 | 0,210 | 1,010 |
| Głębokość (m) | 0,100 | 0,360 | 1,200 |
