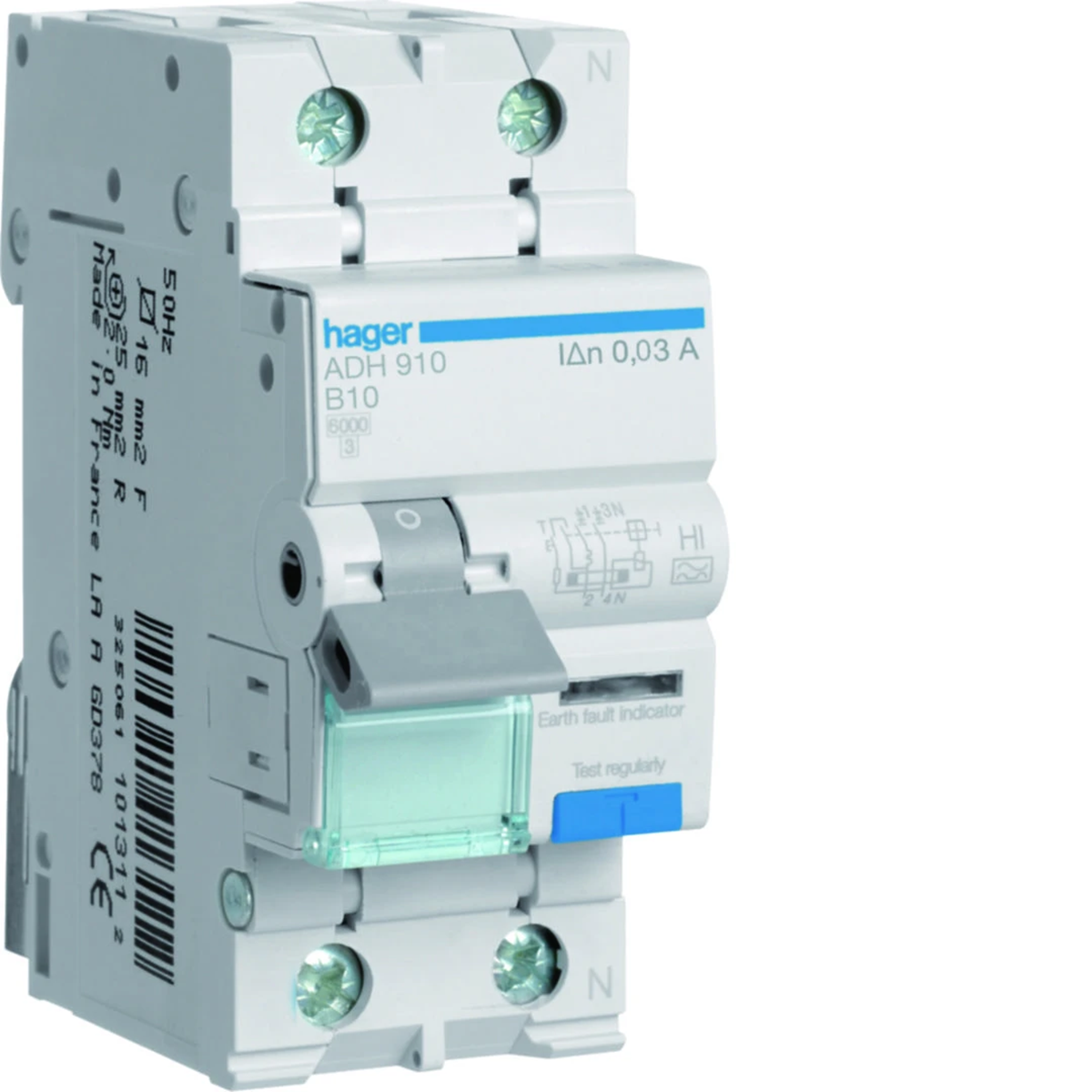

RCBO Short delay residual current circuit breaker with overcurrent element 1P+N 6kA B 10A/30mA type A-HI ADH910
local index:
ARB046HAGE
Catalog No:
ADH910
EAN code:
3250611013037
Price:
112,31 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
RCBO RCBO:
- short delay (HI),
- 2-pole (1P+N),
- used in power supply systems with power electronic devices (e.g. switched-mode power supplies in computers, discharge lamps with electronic igniters), etc.,
- resistant to short-term current surges up to 3 kA, waveform 8/20 μs,
- sensitive to sinusoidal alternating and pulsating residual currents with a DC component (A),
- short-circuit capacity Icn = 6000 A, in accordance with PN-EN61009-1,
- optical residual current trip indicator,
- optical main contact position indicator,
- description field with a protective flap.
Technical data
-
Characteristicb
-
Depth [mm]68
-
Tightening torque [Nm]1.3
-
Differential current [mA]thirty
-
FamilyRCBO
-
power loss [W]3.4
-
Width [mm]35
-
Height [mm]83
-
Mechanical durability (number of cycles)2000
-
Rated switching voltage [V]240
-
Rated short-circuit breaking capacity Icn [kA]6
-
Max/min value of the AC current of the protection activation3/5 In
-
Ultimate short-circuit breaking capacity Icu for 240V [kA]6
-
Rated current at 30°C [A]10
-
Rated current at 45°C [A]9.6
-
Rated current at 55°C [A]9.3
-
storage temperature [°C]from -25 to 70
-
Rated current correction factor for 2 devices installed side by side1
-
Rated surge voltage [V]4000
-
Wire cross-section (cord) [mm²]1 - 16
-
PKWIU27.12.22.0
-
Rated frequency [Hz]50
-
Number of poles2
-
Rated insulation voltage [V]500
-
Rated current [A]10
-
Level of securityIP20
-
Power loss per pole [W]2.8
-
Connection typeWith a screw
-
Electrical endurance (number of cycles)2000
-
Operating temperature range [°C]from -25 to 40
-
Short-circuit breaking capacity [kA]6
-
Number of modules2
-
Ultimate short-circuit breaking capacity Icu for 230V [kA]6
-
Rated current at 20°C [A]10.4
-
Rated current at 40°C [A]9.7
-
Rated current at 50°C [A]9.4
-
Rated current at 60°C [A]9.1
-
RCD typeHI
-
Rated current correction factor for 3 devices installed side by side0.95
-
Number of protected poles1
-
Conductor cross-section (wire) [mm²]1 - 25
Other technical data
-
Number of poles (total)2
-
Rated voltage240 V
-
Rated impulse withstand voltage Uimp4 kV
-
Rated fault current0.03 A
-
Rated short-circuit breaking capacity according to IEC 60947-26 kA
-
Disconnection characteristicUndelayed
-
Voltage typeAC
-
Release characteristicB
-
With interlocking deviceYes
-
Pollution degree2
-
Width in number of modular spacings2
-
Anti-nuisance tripping versionNo
-
Connectable conductor cross section solid-core1 ... 25 mm²
-
Number of protected poles1
-
Rated insulation voltage Ui500 V
-
Rated current10 A
-
Current limiting class3
-
Rated short-circuit breaking capacity Icn according to EN 61009-16 kA
-
Surge current capacity3 kA
-
Frequency50 Hz
-
Concurrently switching neutral conductorYes
-
Over voltage category3
-
Ambient temperature during operating-25 ... 40 °C
-
Built-in depth68 mm
-
Degree of protection (IP)IP20
-
Connectable conductor cross section multi-wired1 ... 16 mm²
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
E-mail
-
Tax identification number6460015532
-
GLN5900009931532
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 60 pcs. | 1440 pcs. |
| Weight (kg) | 0,200 | 0,239 | 14,340 | 342,720 |
| Width (m) | 0,035 | 0,080 | 0,321 | 0,800 |
| Length (m) | 0,094 | 0,041 | 0,216 | 1,014 |
| Depth (m) | 0,070 | 0,098 | 0,371 | 1,200 |
