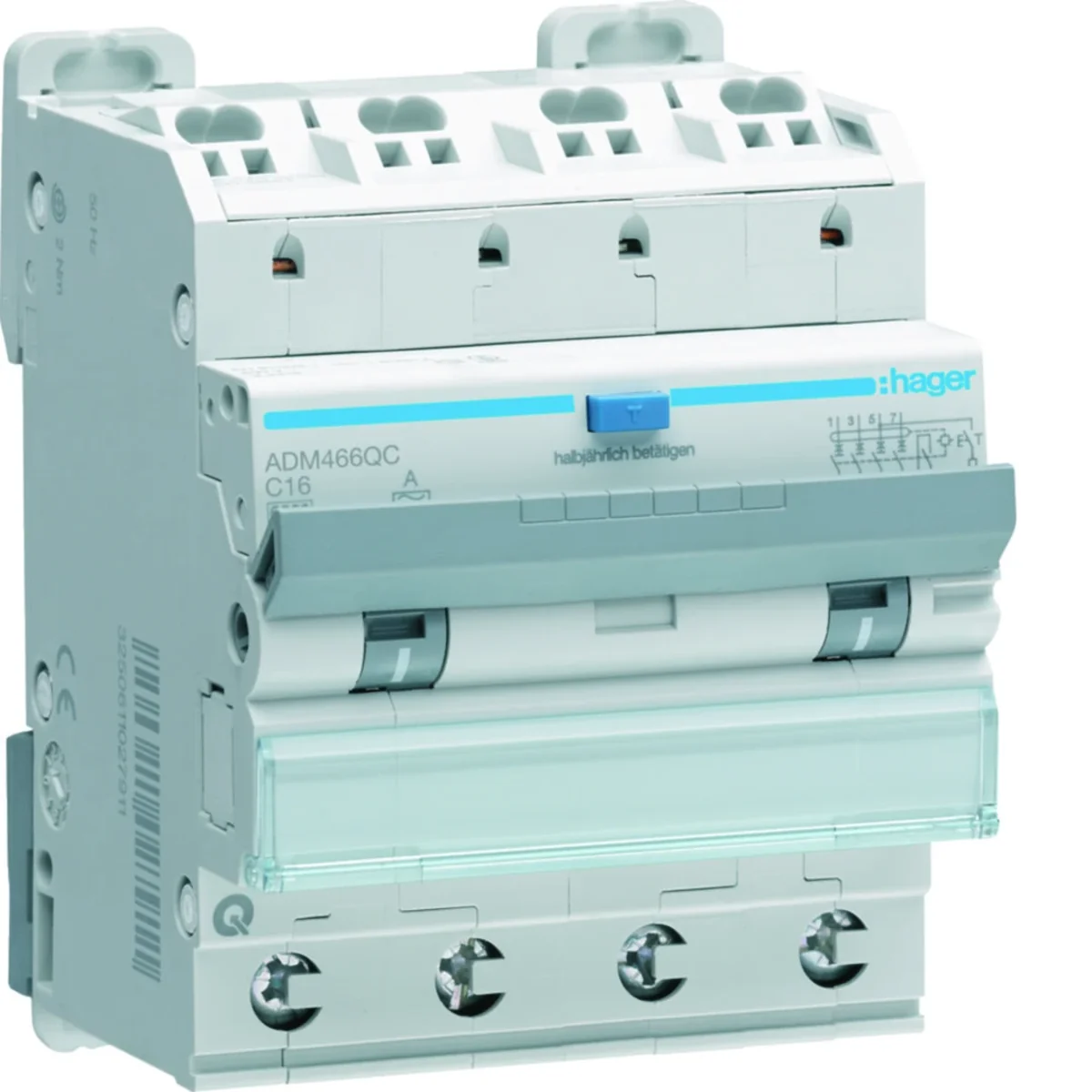

RCBO Residual current circuit breaker with overcurrent element 4P 6kA C 16A/30mA type A QC/QB ADM466QC
Lokaler Index:
ARB109HAGE
Katalognummer:
ADM466QC
EAN-Code:
3250611027997
Hersteller:
HAGER
Family: RCBO
Preis:
1 003,93 zł
gross / stk.
(inklusive MwSt 23%)
Auf Bestellung
Menge stk.
(mehrere:
1
)
Zur Angebotsanfrage hinzufügen
Zur Zwischenablage hinzufügen
Drucken
Fragen Sie nach dem Produkt
Produktbeschreibung
RCBO Residual current circuit breaker with overcurrent element 4P 6kA C 16A/30mA type A QC/QB
Technische Daten
-
FamilyRCBO
Weitere technische Daten
-
Number of poles (total)4
-
Rated voltage400 V
-
Rated impulse withstand voltage Uimp4 kV
-
Rated fault current0.03 A
-
Current limiting class3
-
Rated short-circuit breaking capacity Icn according to EN 61009-16 kA
-
Surge current capacity3 kA
-
Frequency50 Hz
-
Concurrently switching neutral conductorNo
-
Over voltage category3
-
Ambient temperature during operating-25 ... 40 °C
-
Built-in depth70 mm
-
Degree of protection (IP)IP2X
-
Connectable conductor cross section multi-wired1 ... 16 mm²
-
Number of protected poles4
-
Rated insulation voltage Ui500 V
-
Rated current16 A
-
Leakage current typeA
-
Power loss10.9 W
-
Disconnection characteristicUndelayed
-
Voltage typeAC
-
Release characteristicC
-
With interlocking deviceYes
-
Pollution degree2
-
Width in number of modular spacings4
-
Anti-nuisance tripping versionNo
-
Connectable conductor cross section solid-core1 ... 25 mm²
Hersteller-Details
-
HerstellerHager Electro S.A.S.
-
AdresseFR 67215 Obernai 123 boulevard d’Europe Francja
-
E-Mail
Großpackungen
| Eine Art Paket | Karton | Pakiet | Paleta |
| Menge | 1 stk. | 33 stk. | 792 stk. |
| Gewicht (kg) | 0,425 | 14,470 | 370,280 |
| Breite (m) | 0,080 | 0,310 | 0,800 |
| Länge (m) | 0,070 | 0,230 | 1,090 |
| Tiefe (m) | 0,100 | 0,360 | 1,200 |
