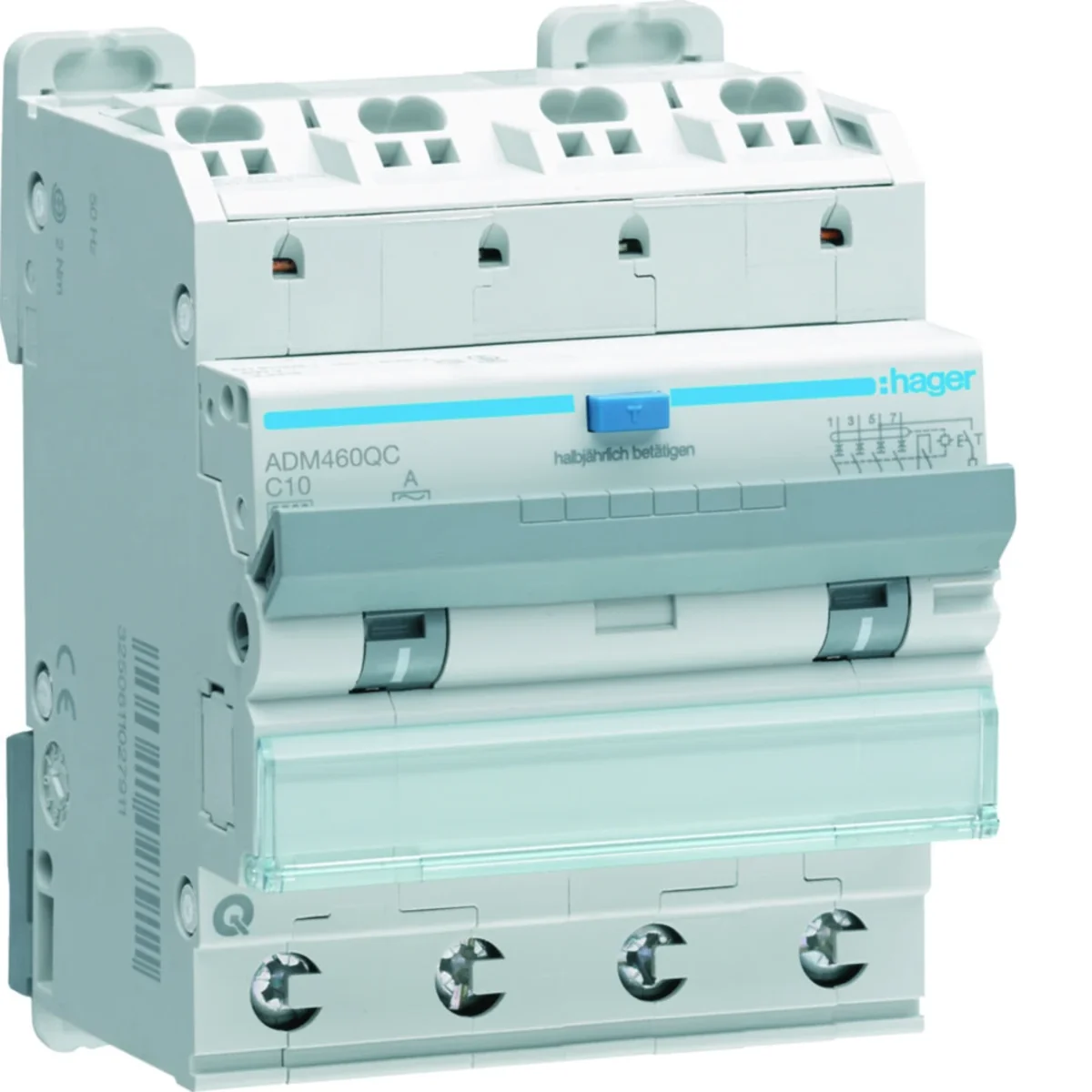

RCBO Residual current circuit breaker with overcurrent element 4P 6kA C 10A/30mA type A QC/QB ADM460QC

Name: RCBO Residual current circuit breaker with overcurrent element 4P 6kA C 10A/30mA type A QC/QB
Brand: HAGER
SKU: ARB083HAGE
Price: 238.79 PLN

local index:

ARB083HAGE

Catalog No:

ADM460QC

EAN code:

3250611027973

RCBO Residual current circuit breaker with overcurrent element 4P 6kA C 10A/30mA type A QC/QB

Click on the photo to enlarge

Manufacturer: HAGER

Family: RCBO

See full description

Price:

238,79 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 2 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging

Product description

RCBO Residual current circuit breaker with overcurrent element 4P 6kA C 10A/30mA type A QC/QB

Technical data

Family

RCBO

Other technical data

Number of poles (total)

4
Rated voltage

400 V
Rated impulse withstand voltage Uimp

4 kV
Rated fault current

0.03 A
Current limiting class

3
Disconnection characteristic

Undelayed
Voltage type

AC
Release characteristic

C
With interlocking device

Yes
Pollution degree

2
Width in number of modular spacings

4
Flush-mounted installation

Yes
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

1 ... 16 mm²

Number of protected poles

4
Rated insulation voltage Ui

500 V
Rated current

10 A
Leakage current type

A
Rated short-circuit breaking capacity Icn according to EN 61009-1

6 kA
Surge current capacity

3 kA
Frequency

50 Hz
Concurrently switching neutral conductor

No
Over voltage category

3
Ambient temperature during operating

-25 ... 40 °C
Built-in depth

70 mm
Anti-nuisance tripping version

No
Connectable conductor cross section solid-core

1 ... 25 mm²

Manufacturer details

Manufacturer

HAGER POLO Sp. z o. o.
Address

43-100 Tychy Fabryczna 10
E-mail

zamowienia@hager.pl
WWW

https://www.hagergroup.pl
Tax identification number

6460015532
GLN

5900009931532

Bulk packaging

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	1 pcs.	33 pcs.	792 pcs.
Weight (kg)	0,414	0,415	14,075	362,800
Width (m)	0,071	0,077	0,315	0,800
Length (m)	0,092	0,079	0,215	1,050
Depth (m)	0,073	0,101	0,360	1,200
