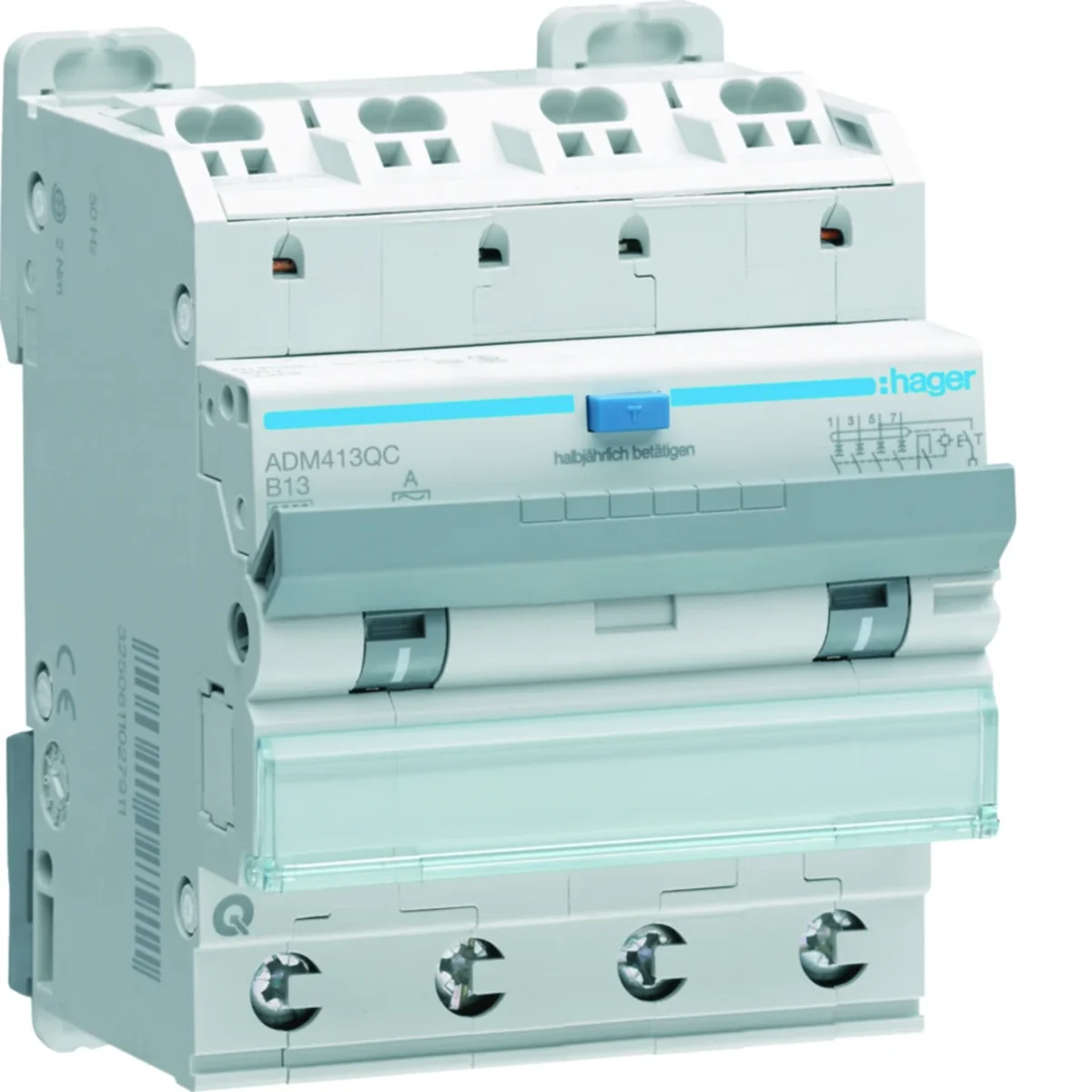

RCBO Residual current circuit breaker with overcurrent element 4P 6kA B 13A/30mA type A QC/QB ADM413QC

local index:
ARB078HAGE
Catalog No:
ADM413QC
EAN code:
3250611027935
Manufacturer: HAGER
Family: RCBO
Price:
233,39 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

RCBO Residual current circuit breaker with overcurrent element 4P 6kA B 13A/30mA type A QC/QB

Technical data

  • Family
    RCBO

Other technical data

  • Number of poles (total)
    4
  • Rated voltage
    400 V
  • Rated impulse withstand voltage Uimp
    4 kV
  • Rated fault current
    0.03 A
  • Current limiting class
    3
  • Disconnection characteristic
    Undelayed
  • Voltage type
    AC
  • Release characteristic
    B
  • With interlocking device
    Yes
  • Pollution degree
    2
  • Width in number of modular spacings
    4
  • Flush-mounted installation
    Yes
  • Degree of protection (IP)
    IP20
  • Connectable conductor cross section multi-wired
    1 ... 16 mm²
  • Number of protected poles
    4
  • Rated insulation voltage Ui
    500 V
  • Rated current
    13 A
  • Leakage current type
    A
  • Rated short-circuit breaking capacity Icn according to EN 61009-1
    6 kA
  • Surge current capacity
    3 kA
  • Frequency
    50 Hz
  • Concurrently switching neutral conductor
    No
  • Over voltage category
    3
  • Ambient temperature during operating
    -25 ... 40 °C
  • Built-in depth
    70 mm
  • Anti-nuisance tripping version
    No
  • Connectable conductor cross section solid-core
    1 ... 25 mm²

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 33 pcs. 792 pcs.
Weight (kg) 0,410 0,422 14,350 367,400
Width (m) 0,071 0,075 0,318 0,800
Length (m) 0,092 0,079 0,234 1,086
Depth (m) 0,073 0,101 0,370 1,200
