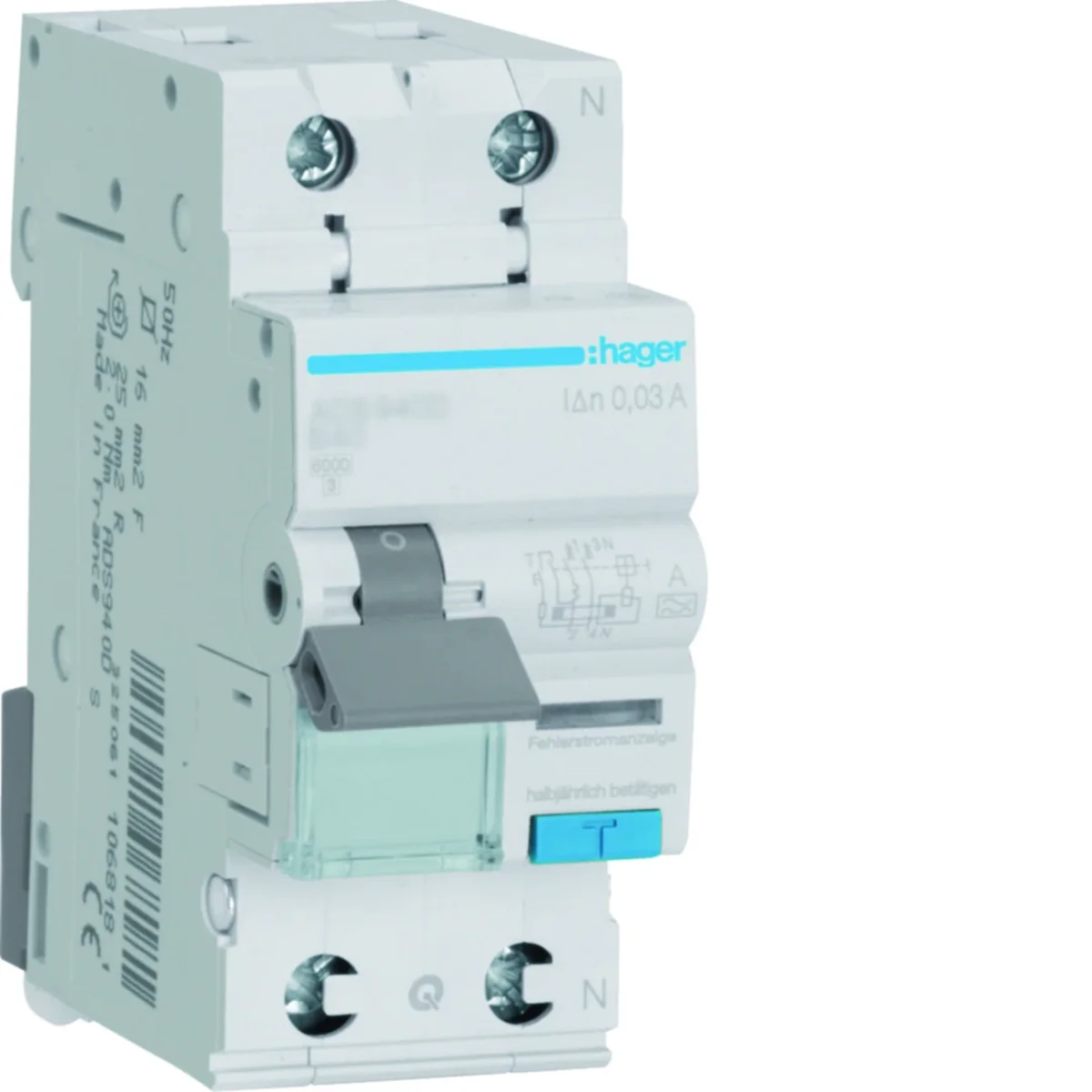

RCBO Residual current circuit breaker with overcurrent element 1P+N 6kA B 25A/30mA type A QC ADS925D
local index:
ARB116HAGE
Catalog No:
ADS925D
EAN code:
3250611068167
Manufacturer:
HAGER
Family: RCBO
Price:
92,31 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
RCBO Residual current circuit breaker with overcurrent element 1P+N 6kA B 25A/30mA type A QC
Technical data
-
FamilyRCBO
Other technical data
-
Number of poles (total)2
-
Rated voltage240 V
-
Rated impulse withstand voltage Uimp4 kV
-
Rated fault current0.03 A
-
Current limiting class3
-
Rated short-circuit breaking capacity Icn according to EN 61009-16 kA
-
Surge current capacity0.25 kA
-
Frequency50 Hz
-
Concurrently switching neutral conductorYes
-
Over voltage category3
-
Ambient temperature during operating-25 ... 40 °C
-
Built-in depth68 mm
-
Anti-nuisance tripping versionNo
-
Connectable conductor cross section solid-core1 ... 25 mm²
-
Number of protected poles1
-
Rated insulation voltage Ui500 V
-
Rated current25 A
-
Leakage current typeA
-
Rated short-circuit breaking capacity according to IEC 60947-26 kA
-
Disconnection characteristicUndelayed
-
Voltage typeAC
-
Release characteristicB
-
With interlocking deviceYes
-
Pollution degree2
-
Width in number of modular spacings2
-
Flush-mounted installationYes
-
Degree of protection (IP)IP2X
-
Connectable conductor cross section multi-wired1 ... 16 mm²
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 60 pcs. | 1440 pcs. |
| Weight (kg) | 0,200 | 0,233 | 14,185 | 363,440 |
| Width (m) | 0,035 | 0,080 | 0,313 | 0,800 |
| Length (m) | 0,096 | 0,040 | 0,212 | 0,998 |
| Depth (m) | 0,075 | 0,099 | 0,360 | 1,200 |
