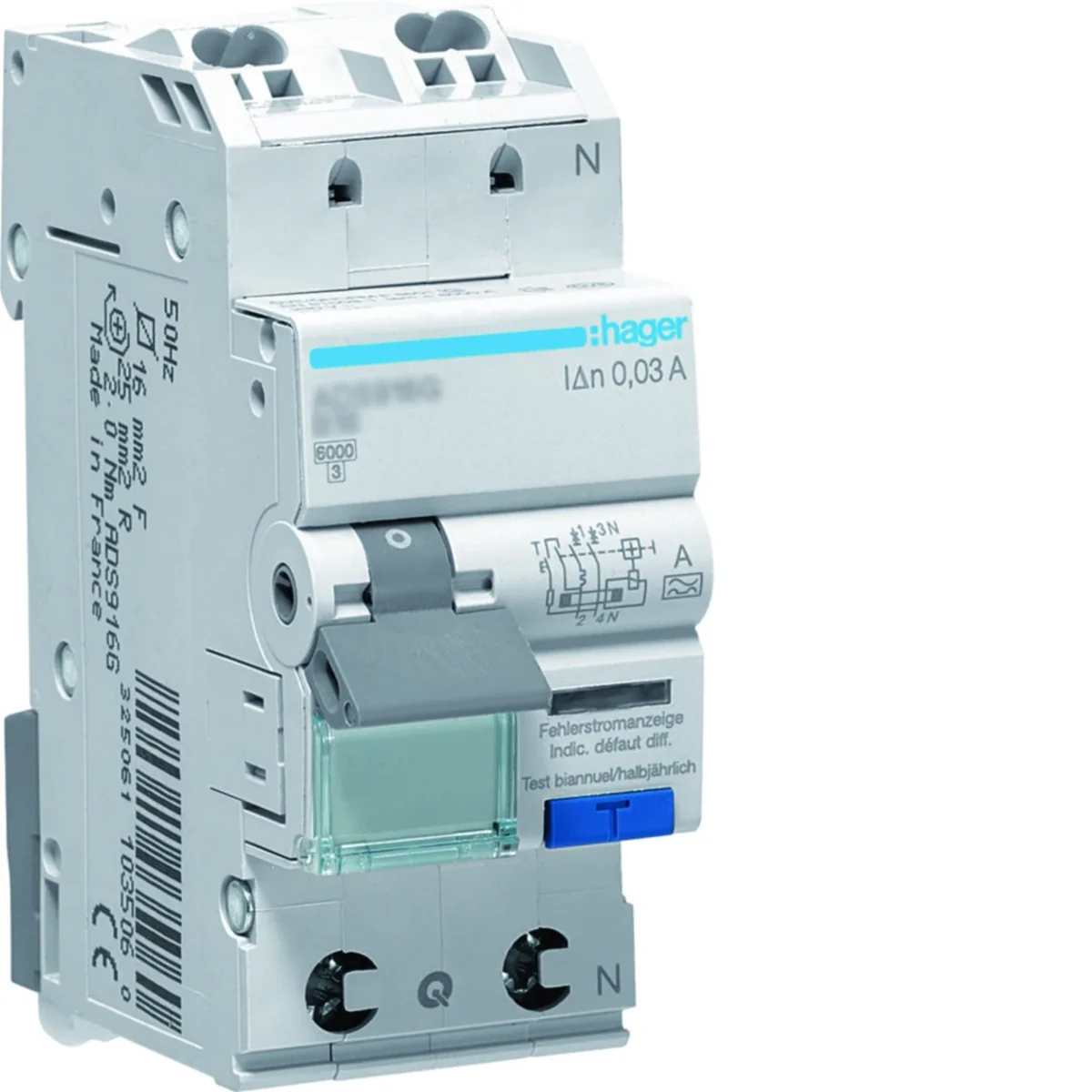

RCBO Residual current circuit breaker with overcurrent element 1P+N 6kA B 13A/30mA type A QC ADS913D

local index:
ARB113HAGE
Catalog No:
ADS913D
EAN code:
3250611068136
Manufacturer: HAGER
Family: RCBO
Price:
83,00 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

RCBO Residual current circuit breaker with overcurrent element 1P+N 6kA B 13A/30mA type A QC

Technical data

  • Family
    RCBO

Other technical data

  • Number of poles (total)
    2
  • Rated voltage
    240 V
  • Rated impulse withstand voltage Uimp
    4 kV
  • Rated fault current
    0.03 A
  • Current limiting class
    3
  • Rated short-circuit breaking capacity Icn according to EN 61009-1
    6 kA
  • Surge current capacity
    0.25 kA
  • Frequency
    50 Hz
  • Concurrently switching neutral conductor
    Yes
  • Over voltage category
    3
  • Ambient temperature during operating
    -25 ... 40 °C
  • Built-in depth
    68 mm
  • Anti-nuisance tripping version
    No
  • Number of protected poles
    1
  • Rated insulation voltage Ui
    500 V
  • Rated current
    13 A
  • Leakage current type
    A
  • Rated short-circuit breaking capacity according to IEC 60947-2
    6 kA
  • Disconnection characteristic
    Undelayed
  • Voltage type
    AC
  • Release characteristic
    B
  • With interlocking device
    Yes
  • Pollution degree
    2
  • Width in number of modular spacings
    2
  • Flush-mounted installation
    Yes
  • Degree of protection (IP)
    IP2X

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 60 pcs. 1440 pcs.
Weight (kg) 0,198 0,215 13,275 343,600
Width (m) 0,035 0,075 0,315 0,800
Length (m) 0,096 0,045 0,215 0,994
Depth (m) 0,075 0,095 0,360 1,200
