RCBO Residual current circuit breaker short delay with overpr. 1P+N 6kA B 16A/30mA Type A-HI ADH916

Name: RCBO Residual current circuit breaker short delay with overpr. 1P+N 6kA B 16A/30mA Type A-HI
Brand: HAGER
SKU: ARB026HAGE
Price: 121.79 PLN

Lokaler Index:

ARB026HAGE

Katalognummer:

ADH916

EAN-Code:

3250611013051

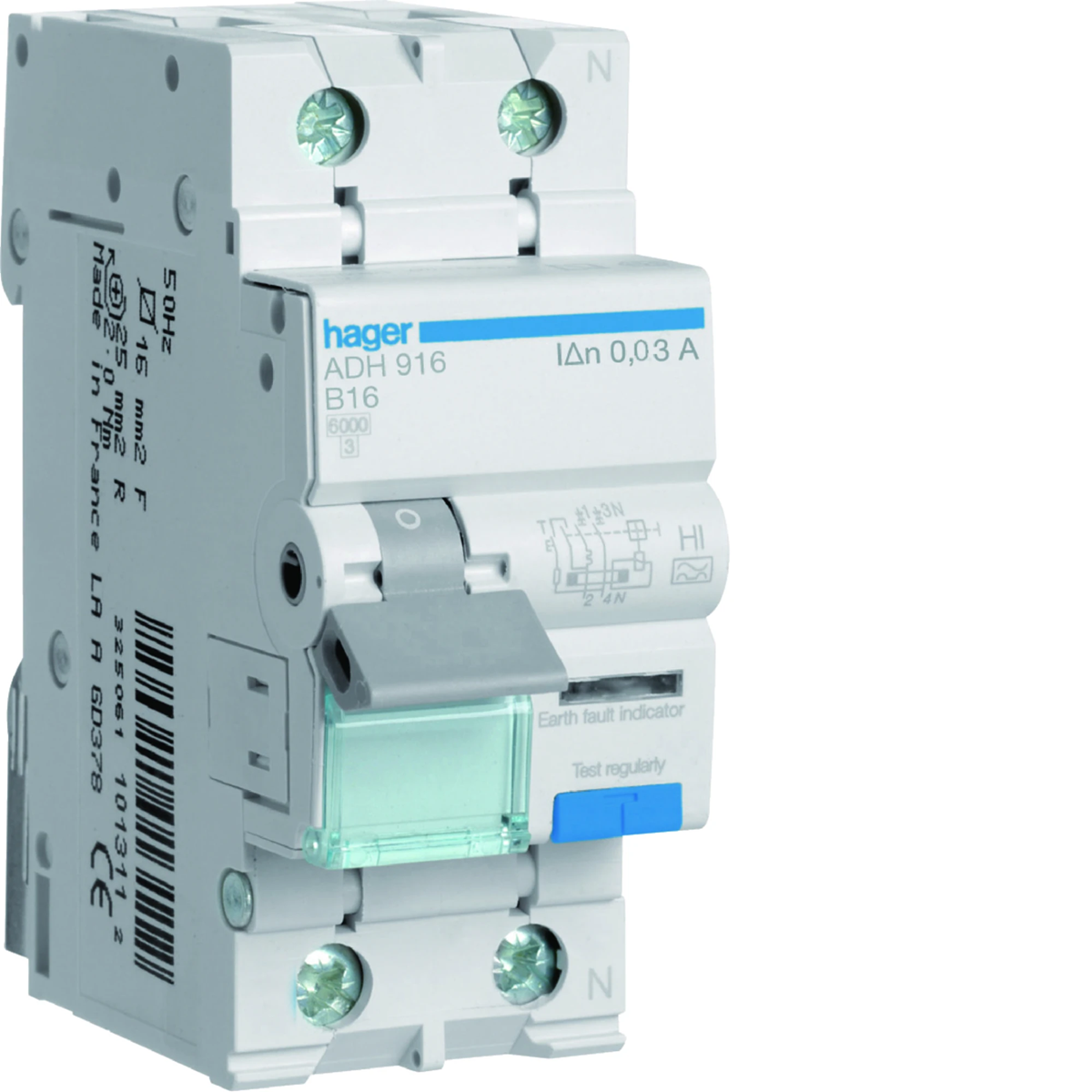

RCBO Residual current circuit breaker short delay with overpr. 1P+N 6kA B 16A/30mA Type A-HI

Klicken Sie auf das Foto, um es zu vergrößern

Hersteller: HAGER

Characteristic: b

Rated frequency [Hz]: 50

Depth [mm]: 68

Siehe vollständige Beschreibung

Preis:

121,79 €

gross / stk.

(inklusive MwSt 23%)

Lieferung in 3h

bis zu 4 Wochen (Arbeitstage)

Abholung in 1 Stunde

Menge stk.

(mehrere:

1

)

Zur Zwischenablage hinzufügen

Drucken

Fragen Sie nach dem Produkt

Produktbeschreibung Technische Daten Hersteller-Details Großpackungen Dateien zum Herunterladen

Produktbeschreibung

RCBO Residual current circuit breaker short delay with overpr. 1P+N 6kA B 16A/30mA Type A-HI

Technische Daten

Characteristic

b
Depth [mm]

68
Tightening torque [Nm]

1.3
Differential current [mA]

thirty
Level of security

IP20
Power loss per pole [W]

3.8
Connection type

With a screw
Electrical endurance (number of cycles)

2000
Operating temperature range [°C]

from -25 to 40
Short-circuit breaking capacity [kA]

6
Number of modules

2
Ultimate short-circuit breaking capacity Icu for 230V [kA]

6
Rated current at 20°C [A]

16.5
Rated current at 40°C [A]

15.6
Rated current at 50°C [A]

15.2
Rated current at 60°C [A]

14.8
RCD type

HI
Rated current correction factor for 3 devices installed side by side

0.95
Number of protected poles

1
Conductor cross-section (wire) [mm²]

1 - 25

Rated frequency [Hz]

50
Number of poles

2
Rated insulation voltage [V]

500
Rated current [A]

16
power loss [W]

5.2
Width [mm]

35
Height [mm]

83
Mechanical durability (number of cycles)

2000
Rated switching voltage [V]

240
Rated short-circuit breaking capacity Icn [kA]

6
Max/min value of the AC current of the protection activation

3/5 In
Ultimate short-circuit breaking capacity Icu for 240V [kA]

6
Rated current at 30°C [A]

16
Rated current at 45°C [A]

15.4
Rated current at 55°C [A]

15
storage temperature [°C]

from -25 to 70
Rated current correction factor for 2 devices installed side by side

1
Rated surge voltage [V]

4000
Wire cross-section (cord) [mm²]

1 - 16
PKWIU

27.12.22.0

Weitere technische Daten

Number of poles (total)

2
Rated voltage

240 V
Rated impulse withstand voltage Uimp

4 kV
Rated fault current

0.03 A
Rated short-circuit breaking capacity according to IEC 60947-2

6 kA
Disconnection characteristic

Undelayed
Voltage type

AC
Release characteristic

B
With interlocking device

Yes
Pollution degree

2
Width in number of modular spacings

2
Anti-nuisance tripping version

No
Connectable conductor cross section solid-core

1 ... 25 mm²

Number of protected poles

1
Rated insulation voltage Ui

500 V
Rated current

16 A
Current limiting class

3
Rated short-circuit breaking capacity Icn according to EN 61009-1

6 kA
Surge current capacity

3 kA
Frequency

50 Hz
Concurrently switching neutral conductor

Yes
Over voltage category

3
Ambient temperature during operating

-25 ... 40 °C
Built-in depth

68 mm
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

1 ... 16 mm²

Hersteller-Details

Hersteller

HAGER POLO Sp. z o. o.
Adresse

43-100 Tychy Fabryczna 10
Steueridentifikationsnummer

6460015532

Großpackungen

Eine Art Paket	Karton	Pakiet	Paleta
Menge	1 stk.	60 stk.	1440 stk.
Gewicht (kg)	0,235	14,475	370,400
Breite (m)	0,080	0,315	0,800
Länge (m)	0,040	0,210	1,014
Tiefe (m)	0,100	0,365	1,200
