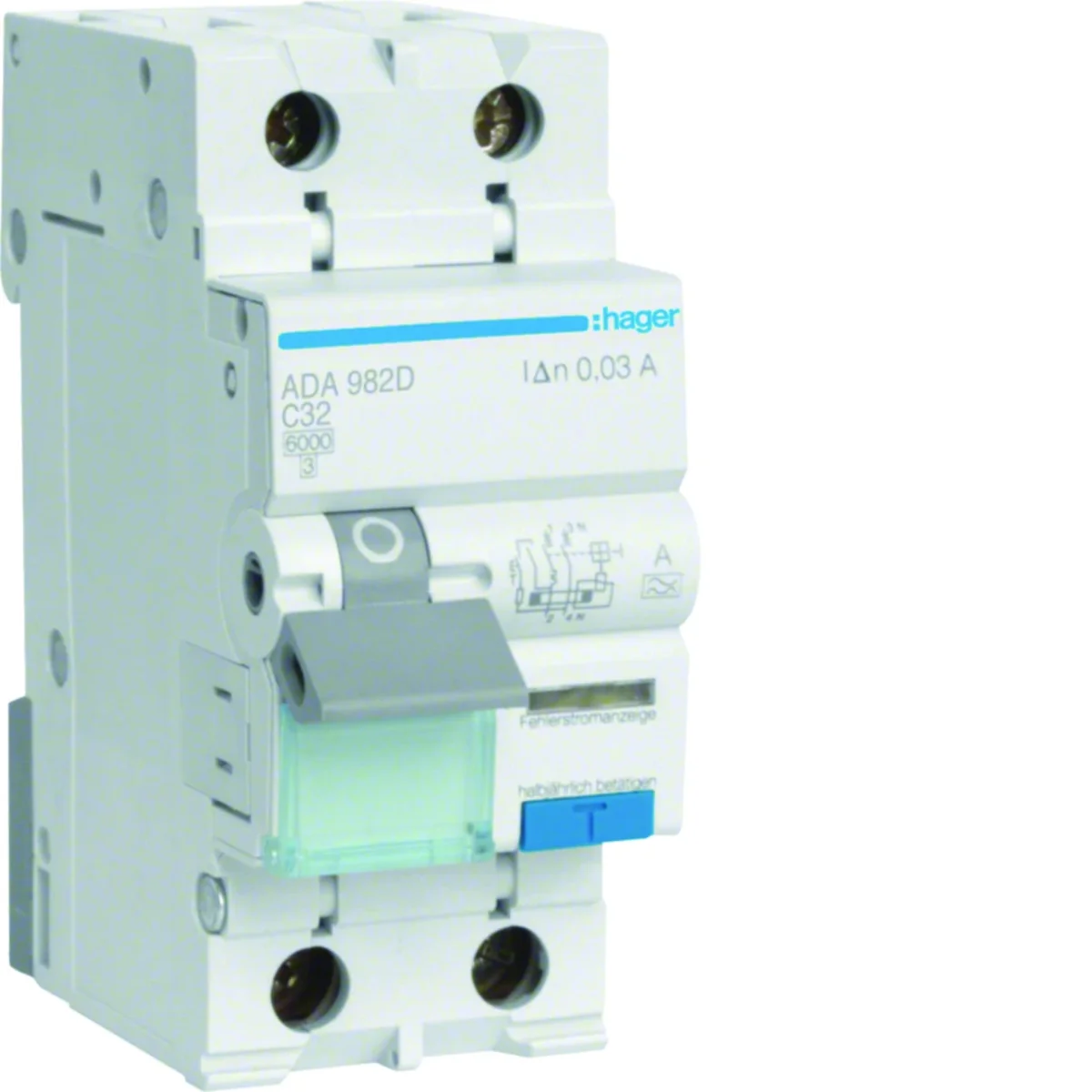

RCBO RCD with overcurrent element 1P+N 6kA C 32A/30mA type A ADA982D

local index:
ARB042HAGE
Catalog No:
ADA982D
EAN code:
3250611010760
Manufacturer: HAGER
Characteristic: c
Rated frequency [Hz]: 50
Depth [mm]: 68
Price:
100,32 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

RCBO RCBO:

  • 2-pole (1P+N),
  • sinusoidal alternating and pulsating DC component (A),
  • short-circuit capacity Icn = 6000 A, in accordance with PN-EN61009-1,
  • optical residual current trip indicator,
  • optical position indicator main contacts,
  • description field with a protective flap.

Technical data

  • Characteristic
    c
  • Depth [mm]
    68
  • Tightening torque [Nm]
    1.3
  • Differential current [mA]
    thirty
  • Family
    RCBO
  • power loss [W]
    8.3
  • Width [mm]
    35
  • Height [mm]
    83
  • Mechanical durability (number of cycles)
    1000
  • Rated switching voltage [V]
    240
  • Rated short-circuit breaking capacity Icn [kA]
    6
  • Max/min value of the AC current of the protection activation
    5/10 In
  • Ultimate short-circuit breaking capacity Icu for 240V [kA]
    6
  • Rated current at 30°C [A]
    32
  • Rated current at 45°C [A]
    30.5
  • Rated current at 55°C [A]
    29.5
  • storage temperature [°C]
    from -25 to 70
  • Rated current correction factor for 2 devices installed side by side
    1
  • Rated surge voltage [V]
    4000
  • Wire cross-section (cord) [mm²]
    1 - 16
  • PKWIU
    27.12.23.0
  • Rated frequency [Hz]
    50
  • Number of poles
    2
  • Rated insulation voltage [V]
    500
  • Rated current [A]
    32
  • Level of security
    IP20
  • Power loss per pole [W]
    5.4
  • Connection type
    With a screw
  • Electrical endurance (number of cycles)
    2000
  • Operating temperature range [°C]
    from -25 to 40
  • Short-circuit breaking capacity [kA]
    6
  • Number of modules
    2
  • Ultimate short-circuit breaking capacity Icu for 230V [kA]
    6
  • Rated current at 20°C [A]
    33.2
  • Rated current at 40°C [A]
    31
  • Rated current at 50°C [A]
    thirty
  • Rated current at 60°C [A]
    29
  • RCD type
    AND
  • Rated current correction factor for 3 devices installed side by side
    0.95
  • Number of protected poles
    1
  • Conductor cross-section (wire) [mm²]
    1 - 25

Other technical data

  • Number of poles (total)
    2
  • Rated voltage
    240 V
  • Rated impulse withstand voltage Uimp
    4 kV
  • Rated fault current
    0.03 A
  • Current limiting class
    3
  • Rated short-circuit breaking capacity Icn according to EN 61009-1
    6 kA
  • Surge current capacity
    0.25 kA
  • Frequency
    50 Hz
  • Concurrently switching neutral conductor
    Yes
  • Over voltage category
    3
  • Ambient temperature during operating
    -25 ... 40 °C
  • Built-in depth
    68 mm
  • Degree of protection (IP)
    IP20
  • Connectable conductor cross section multi-wired
    1 ... 16 mm²
  • Number of protected poles
    1
  • Rated insulation voltage Ui
    500 V
  • Rated current
    32 A
  • Leakage current type
    A
  • Rated short-circuit breaking capacity according to IEC 60947-2
    6 kA
  • Disconnection characteristic
    Undelayed
  • Voltage type
    AC
  • Release characteristic
    C
  • With interlocking device
    Yes
  • Pollution degree
    2
  • Width in number of modular spacings
    2
  • Anti-nuisance tripping version
    No
  • Connectable conductor cross section solid-core
    1 ... 25 mm²

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 60 pcs. 1440 pcs.
Weight (kg) 0,231 0,240 14,940 381,440
Width (m) 0,035 0,082 0,308 0,800
Length (m) 0,094 0,041 0,210 0,990
Depth (m) 0,070 0,099 0,357 1,200
