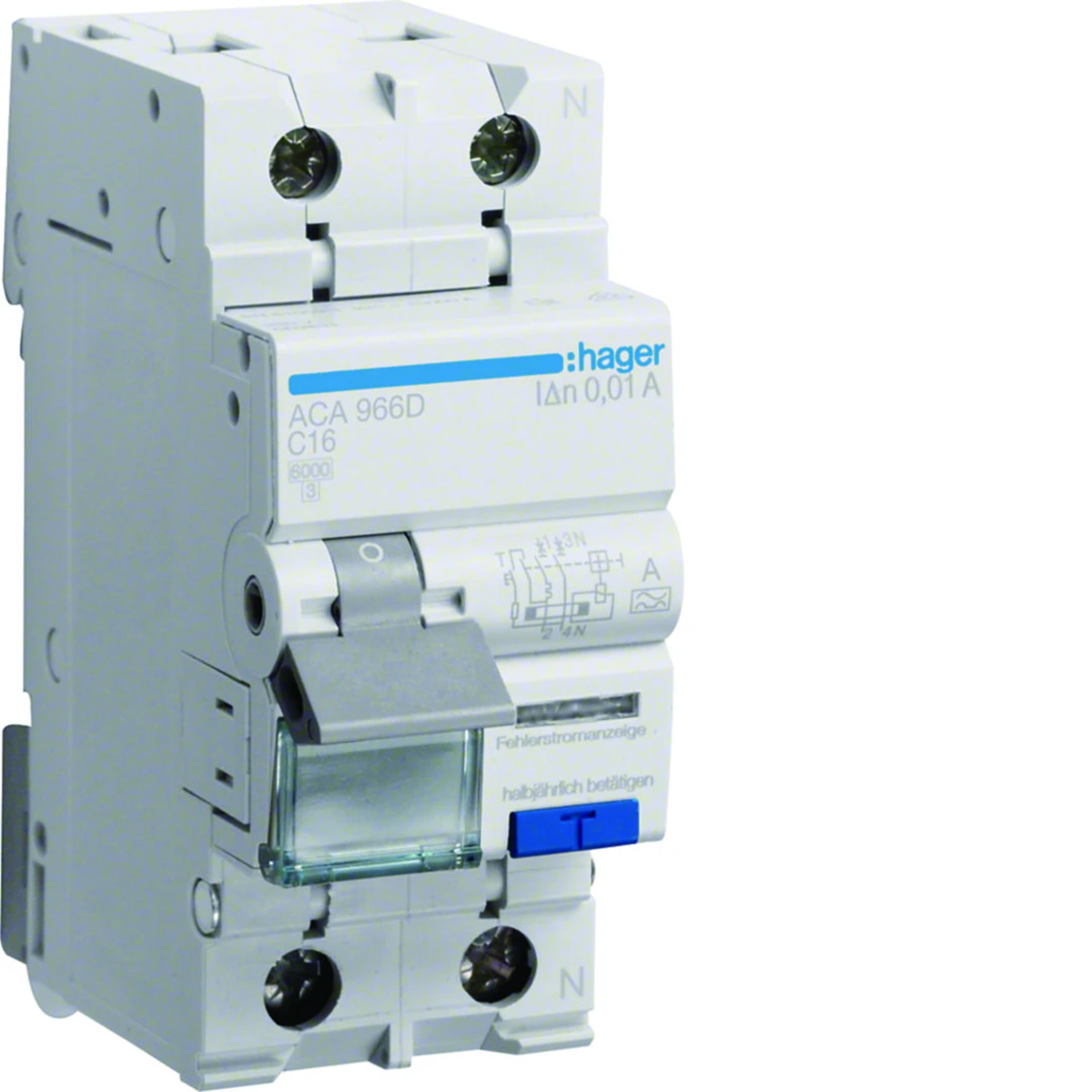

RCBO RCD with overcurrent element 1P+N 6kA C 16A/10mA type A ACA966D
Lokaler Index:
ARB029HAGE
Katalognummer:
ACA966D
EAN-Code:
3250611010692
571
49
zł
gross / stk.
(inklusive MwSt 23%)
Verfügbarkeit
Dostępne 47 stk.
Überprüfen
Odbiór!
Odbierz w godzinę!
Einzelheiten
Dostępność w oddziale
Wählen Sie Ihren Großhändler
Wählen Sie
Menge stk.
(mehrere:
1
)
Zur Angebotsanfrage hinzufügen
Zur Zwischenablage hinzufügen
Drucken
Fragen Sie nach dem Produkt
Produktbeschreibung
RCBO RCBO:
- 2-pole (1P+N),
- sinusoidal alternating and pulsating DC component (A),
- short-circuit capacity Icn = 6000 A, in accordance with PN-EN61009-1,
- optical residual current trip indicator,
- optical position indicator main contacts,
- description field with a protective flap.
Technische Daten
-
Characteristicc
-
Depth [mm]68
-
Tightening torque [Nm]1.3
-
Differential current [mA]10
-
FamilyRCBO
-
Width [mm]35
-
Height [mm]83
-
Mechanical durability (number of cycles)2000
-
Rated switching voltage [V]240
-
Rated short-circuit breaking capacity Icn [kA]6
-
Max/min value of the AC current of the protection activation5/10 In
-
Ultimate short-circuit breaking capacity Icu for 240V [kA]6
-
Rated current at 30°C [A]16
-
Rated current at 45°C [A]15.4
-
Rated current at 55°C [A]15
-
storage temperature [°C]from -25 to 70
-
Rated current correction factor for 2 devices installed side by side1
-
Rated surge voltage [V]4000
-
Wire cross-section (cord) [mm²]1 - 16
-
PKWIU27.12.23.0
-
Rated frequency [Hz]50
-
Number of poles2
-
Rated insulation voltage [V]500
-
Rated current [A]16
-
Level of securityIP20
-
Connection typeWith a screw
-
Electrical endurance (number of cycles)2000
-
Operating temperature range [°C]from -25 to 40
-
Short-circuit breaking capacity [kA]6
-
Number of modules2
-
Ultimate short-circuit breaking capacity Icu for 230V [kA]6
-
Rated current at 20°C [A]16.5
-
Rated current at 40°C [A]15.6
-
Rated current at 50°C [A]15.2
-
Rated current at 60°C [A]14.8
-
RCD typeAND
-
Rated current correction factor for 3 devices installed side by side0.95
-
Number of protected poles1
-
Conductor cross-section (wire) [mm²]1 - 25
Weitere technische Daten
-
Number of poles (total)2
-
Rated voltage240 V
-
Rated impulse withstand voltage Uimp4 kV
-
Rated fault current0.01 A
-
Current limiting class3
-
Rated short-circuit breaking capacity according to IEC 60947-26 kA
-
Disconnection characteristicUndelayed
-
Voltage typeAC
-
Release characteristicC
-
With interlocking deviceYes
-
Pollution degree2
-
Width in number of modular spacings2
-
Anti-nuisance tripping versionNo
-
Connectable conductor cross section solid-core1 ... 25 mm²
-
Number of protected poles1
-
Rated insulation voltage Ui500 V
-
Rated current16 A
-
Leakage current typeA
-
Power loss5.2 W
-
Rated short-circuit breaking capacity Icn according to EN 61009-16 kA
-
Surge current capacity0.25 kA
-
Frequency50 Hz
-
Concurrently switching neutral conductorYes
-
Over voltage category3
-
Ambient temperature during operating-25 ... 40 °C
-
Built-in depth68 mm
-
Degree of protection (IP)IP2X
-
Connectable conductor cross section multi-wired1 ... 16 mm²
Hersteller-Details
-
HerstellerHager Electro S.A.S.
-
AdresseFR 67215 Obernai 123 boulevard d’Europe Francja
-
E-Mail
Großpackungen
| Eine Art Paket | Karton | Pakiet | Paleta |
| Menge | 1 stk. | 60 stk. | 1440 stk. |
| Gewicht (kg) | 0,230 | 14,235 | 364,640 |
| Breite (m) | 0,080 | 0,320 | 0,800 |
| Länge (m) | 0,040 | 0,220 | 1,010 |
| Tiefe (m) | 0,100 | 0,360 | 1,200 |
