RCBO RCBO with overcurrent element 4P 6kA C 25A/30mA type A ADM475C

Name: RCBO RCBO with overcurrent element 4P 6kA C 25A/30mA type A
Brand: HAGER
SKU: ARB063HAGE
Price: 1060.08 PLN
Availability: BackOrder

Lokaler Index:

ARB063HAGE

Katalognummer:

ADM475C

EAN-Code:

3250611020325

RCBO RCBO with overcurrent element 4P 6kA C 25A/30mA type A

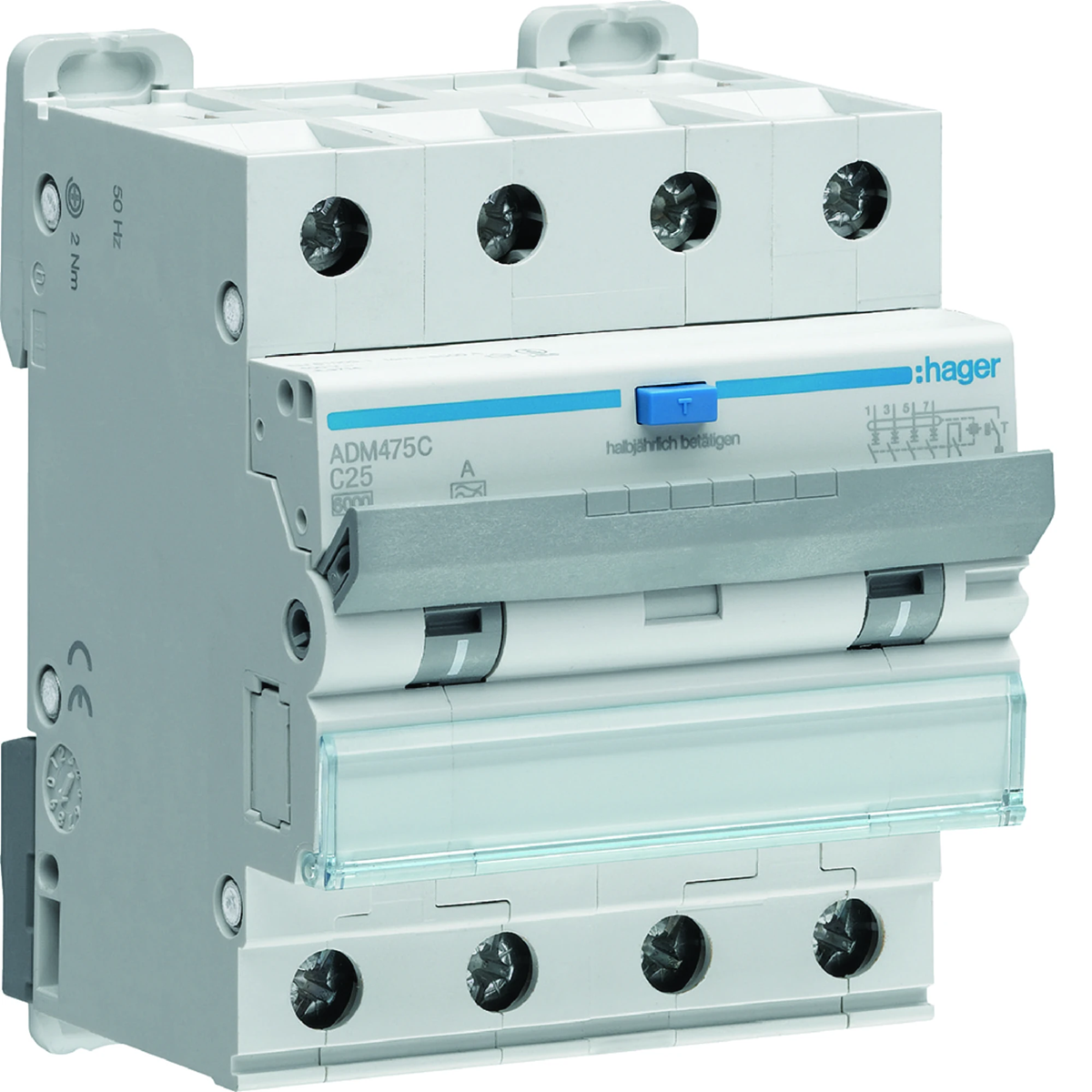

Klicken Sie auf das Foto, um es zu vergrößern

Hersteller: HAGER

Characteristic: c

Rated frequency [Hz]: 50

Depth [mm]: 70

Siehe vollständige Beschreibung

Preis:

1 060,08 zł

gross / stk.

(inklusive MwSt 23%)

bis zu 4 Wochen

Auf Bestellung

Menge stk.

(mehrere:

)

Zur Angebotsanfrage hinzufügen

Zur Zwischenablage hinzufügen

Drucken

Fragen Sie nach dem Produkt

Produktbeschreibung Technische Daten Hersteller-Details Großpackungen Dateien zum Herunterladen

Produktbeschreibung

Residual current circuit breaker with RCBO:

easy installation of several circuit breakers next to each other (in one row),
combined 4-pole residual current circuit breaker with overcurrent module - double Quick-Snap latches located on the top and bottom of the device,
clear view of the on/off position,
Bi-Connect terminals for connecting comb busbars,< /li>
description field with a protective flap,
protective and insulating overlays to protect against making a mistake,
device width: 4 modules (saving space in the switchgear),
energy limit class 3,
Rated frequency [Hz] 50 Hz,
sensitivity 30 mA, type A.

Technische Daten

Characteristic

c
Depth [mm]

70
Tightening torque [Nm]

2
Differential current [mA]

thirty
Family

RCBO
power loss [W]

12.3
Width [mm]

71
Electrical endurance (number of cycles)

2000
Operating temperature range [°C]

from -25 to 40
Rated switching voltage [V]

230/400
Rated short-circuit breaking capacity Icn [kA]

6
Max/min value of the AC current of the protection activation

5/10 In
Input terminal capacitance (wire) [mm²]

1/25
Output terminal capacitance (wire) [mm²]

1/25
Rated current at 30°C [A]

25
Rated current at 45°C [A]

22.8
Rated current at 55°C [A]

21.2
Operating short-circuit breaking current Ics [kA]

6
Supply voltage type

AC
Rated current correction factor for 2 devices installed side by side

0.8
Number of protected poles

4

Rated frequency [Hz]

50
Number of poles

4
Rated insulation voltage [V]

500
Rated current [A]

25
Level of security

IP20
Power loss per pole [W]

3.3
Height [mm]

84
Mechanical durability (number of cycles)

4000
Rated short-circuit breaking capacity [kA]

6
Rated impulse voltage [kV]

4
Number of modules

4
Input terminal capacity (cord) [mm²]

1/16
Output terminal capacity (cord) [mm²]

1/16
Rated current at 20°C [A]

26.4
Rated current at 40°C [A]

23.6
Rated current at 50°C [A]

22
Rated current at 60°C [A]

20.4
storage temperature [°C]

from -55 to 70
RCD type

AND
Rated current correction factor for 3 devices installed side by side

0.8
PKWIU

27.12.22.0

Weitere technische Daten

Number of poles (total)

4
Rated voltage

400 V
Rated impulse withstand voltage Uimp

4 kV
Rated fault current

0.03 A
Current limiting class

3
Rated short-circuit breaking capacity Icn according to EN 61009-1

6 kA
Surge current capacity

3 kA
Frequency

50 Hz
Concurrently switching neutral conductor

Yes
Over voltage category

3
Ambient temperature during operating

-25 ... 40 °C
Built-in depth

70 mm
Degree of protection (IP)

IP2X
Connectable conductor cross section multi-wired

1 ... 16 mm²

Number of protected poles

4
Rated insulation voltage Ui

500 V
Rated current

25 A
Leakage current type

A
Power loss

12.3 W
Disconnection characteristic

Undelayed
Voltage type

AC
Release characteristic

C
With interlocking device

Yes
Pollution degree

2
Width in number of modular spacings

4
Anti-nuisance tripping version

No
Connectable conductor cross section solid-core

1 ... 25 mm²
