RCBO RCBO with overcurrent element 4P 6kA C 16A/30mA Type A ADM466C

Name: RCBO RCBO with overcurrent element 4P 6kA C 16A/30mA Type A
Brand: HAGER
SKU: ARB020HAGE
Price: 258.41 PLN

Lokaler Index:

ARB020HAGE

Katalognummer:

ADM466C

EAN-Code:

3250611020301

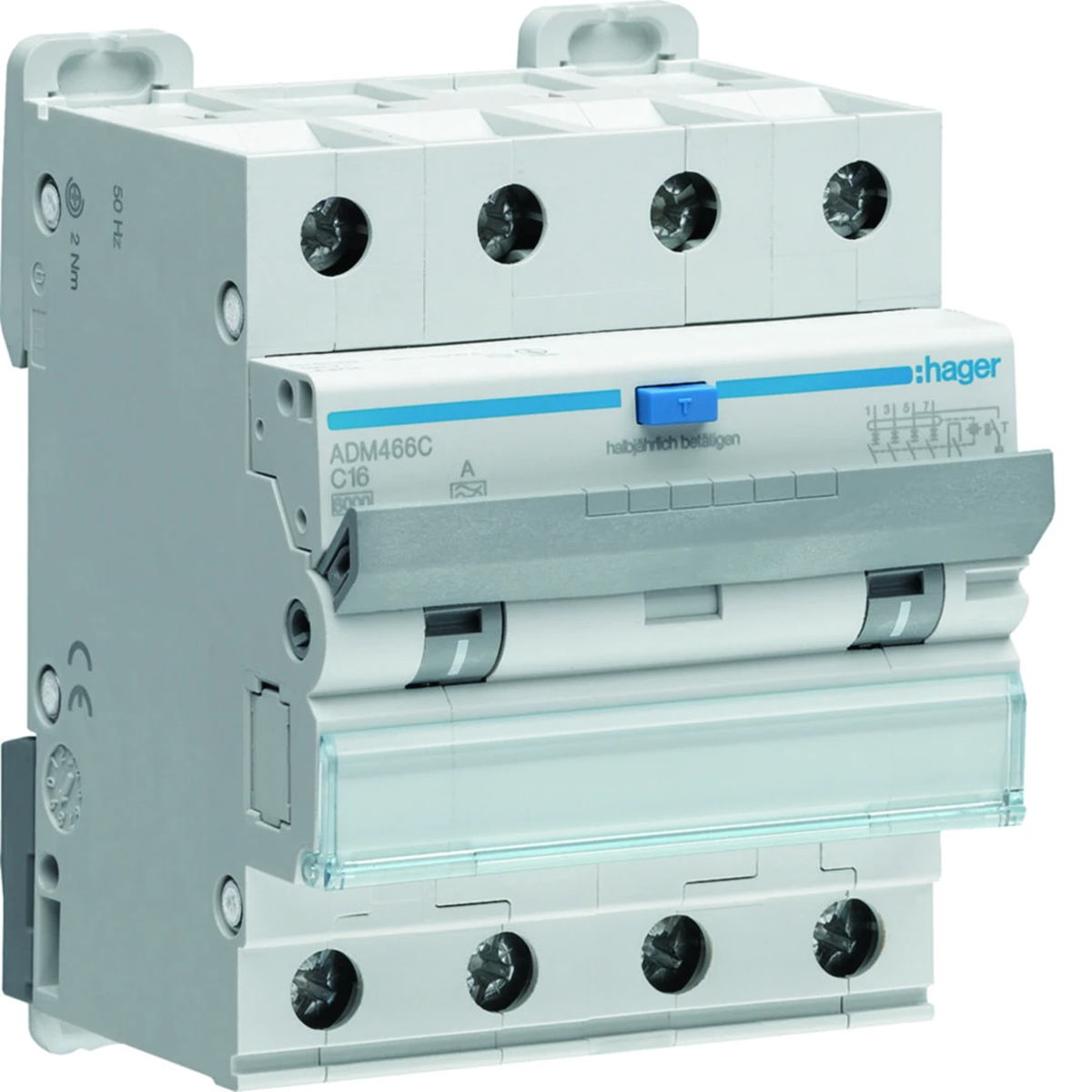

RCBO RCBO with overcurrent element 4P 6kA C 16A/30mA Type A

Klicken Sie auf das Foto, um es zu vergrößern

Hersteller: HAGER

Depth [mm]: 70

Number of poles: 4

Tightening torque [Nm]: 2

Siehe vollständige Beschreibung

Preis:

258,41 €

gross / stk.

(inklusive MwSt 23%)

Lieferung in 3h

bis zu 4 Wochen (Arbeitstage)

Abholung in 1 Stunde

Menge stk.

(mehrere:

)

Zur Angebotsanfrage hinzufügen

Zur Zwischenablage hinzufügen

Drucken

Fragen Sie nach dem Produkt

Produktbeschreibung Technische Daten Hersteller-Details Großpackungen Dateien zum Herunterladen

Produktbeschreibung

Properties:
compatible with existing accessories
easy installation of several circuit breakers side by side (in one row)
combined 4-pole residual current circuit breaker with overcurrent element - double Quick-Snap latches located on the top and bottom of the device
clear view of the on/off position
Bi-Connect terminals for connection of comb busbars
description field with a safety flap
protective and insulating overlays, protecting against making a mistake
device width: 4 modules (saving space in the switchgear)

Technische Daten

Depth [mm]

70
Tightening torque [Nm]

2
Rated current [A]

16
Width [mm]

71
Height [mm]

84
Mechanical durability (number of cycles)

4000
Number of modules

4
PKWIU

27.12.22.0

Number of poles

4
Rated insulation voltage [V]

500
power loss [W]

10.9
Working temperature [°C]

-25 to 40
Electrical endurance (number of cycles)

2000
Rated impulse voltage [kV]

4
AC rated voltage [V]

230/400

Weitere technische Daten

Number of poles (total)

4
Rated voltage

400 V
Rated impulse withstand voltage Uimp

4 kV
Rated fault current

0.03 A
Current limiting class

3
Disconnection characteristic

Undelayed
Voltage type

AC
Release characteristic

C
With interlocking device

Yes
Pollution degree

2
Width in number of modular spacings

4
Anti-nuisance tripping version

No
Connectable conductor cross section solid-core

1 ... 25 mm²

Number of protected poles

4
Rated insulation voltage Ui

500 V
Rated current

16 A
Leakage current type

A
Rated short-circuit breaking capacity Icn according to EN 61009-1

6 kA
Surge current capacity

3 kA
Frequency

50 Hz
Concurrently switching neutral conductor

No
Over voltage category

3
Ambient temperature during operating

-25 ... 40 °C
Built-in depth

70 mm
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

1 ... 16 mm²

Hersteller-Details

Hersteller

Hager Electro S.A.S.
Adresse

FR 67215 Obernai 123 boulevard d’Europe Francja
E-Mail

wsparcie.klienta@hager.com

Großpackungen

Eine Art Paket	Karton	Pakiet	Paleta
Menge	1 stk.	33 stk.	792 stk.
Gewicht (kg)	0,420	14,020	336,600
Breite (m)	0,080	0,310	0,800
Länge (m)	0,070	0,230	1,090
Tiefe (m)	0,100	0,360	1,200
