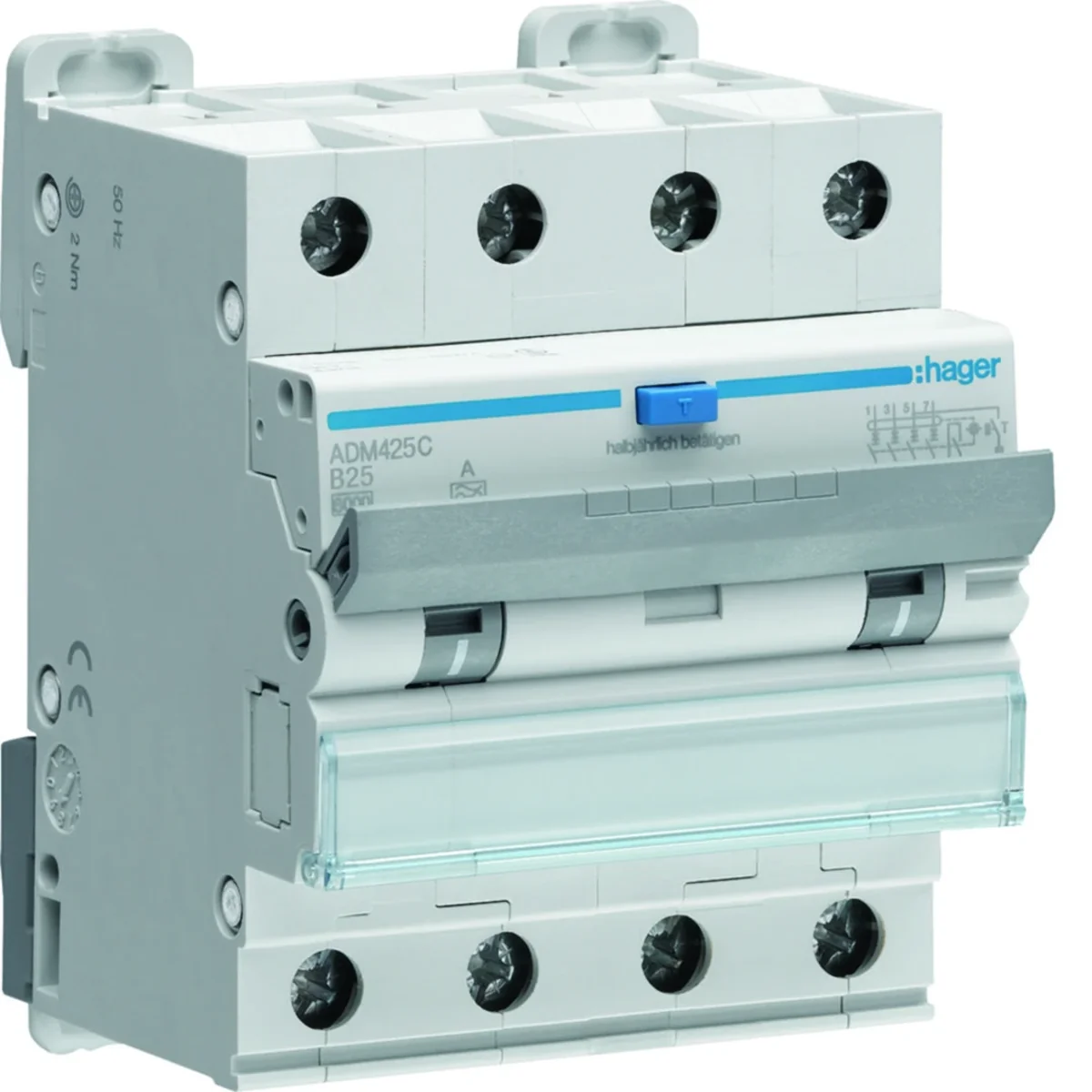

RCBO RCBO with overcurrent element 4P 6kA B 25A/30mA Type A ADM425C

local index:
ARB023HAGE
Catalog No:
ADM425C
EAN code:
3250611020240
Manufacturer: HAGER
Depth [mm]: 70
Number of poles: 4
Tightening torque [Nm]: 2
Price:
246,23 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Properties:
compatible with existing accessories
easy installation of several circuit breakers side by side (in one row)
combined 4-pole residual current circuit breaker with overcurrent element - double Quick-Snap latches located on the top and bottom of the device
clear view of the on/off position
Bi-Connect terminals for connection of comb busbars
description field with a safety flap
protective and insulating overlays, protecting against making a mistake
device width: 4 modules (saving space in the switchgear)

Technical data

  • Depth [mm]
    70
  • Tightening torque [Nm]
    2
  • Rated current [A]
    25
  • Width [mm]
    71
  • Height [mm]
    84
  • Mechanical durability (number of cycles)
    4000
  • Number of modules
    4
  • PKWIU
    27.12.22.0
  • Number of poles
    4
  • Rated insulation voltage [V]
    500
  • power loss [W]
    12.3
  • Working temperature [°C]
    -25 to 40
  • Electrical endurance (number of cycles)
    2000
  • Rated impulse voltage [kV]
    4
  • AC rated voltage [V]
    230/400

Other technical data

  • Number of poles (total)
    4
  • Rated voltage
    400 V
  • Rated impulse withstand voltage Uimp
    4 kV
  • Rated fault current
    0.03 A
  • Current limiting class
    3
  • Disconnection characteristic
    Undelayed
  • Voltage type
    AC
  • Release characteristic
    B
  • With interlocking device
    Yes
  • Pollution degree
    2
  • Width in number of modular spacings
    4
  • Anti-nuisance tripping version
    No
  • Connectable conductor cross section solid-core
    1 ... 25 mm²
  • Number of protected poles
    4
  • Rated insulation voltage Ui
    500 V
  • Rated current
    25 A
  • Leakage current type
    A
  • Rated short-circuit breaking capacity Icn according to EN 61009-1
    6 kA
  • Surge current capacity
    3 kA
  • Frequency
    50 Hz
  • Concurrently switching neutral conductor
    No
  • Over voltage category
    3
  • Ambient temperature during operating
    -25 ... 40 °C
  • Built-in depth
    70 mm
  • Degree of protection (IP)
    IP20
  • Connectable conductor cross section multi-wired
    1 ... 16 mm²

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 33 pcs. 792 pcs.
Weight (kg) 0,421 0,440 14,950 381,800
Width (m) 0,071 0,080 0,315 0,800
Length (m) 0,073 0,075 0,230 1,086
Depth (m) 0,092 0,105 0,365 1,200
