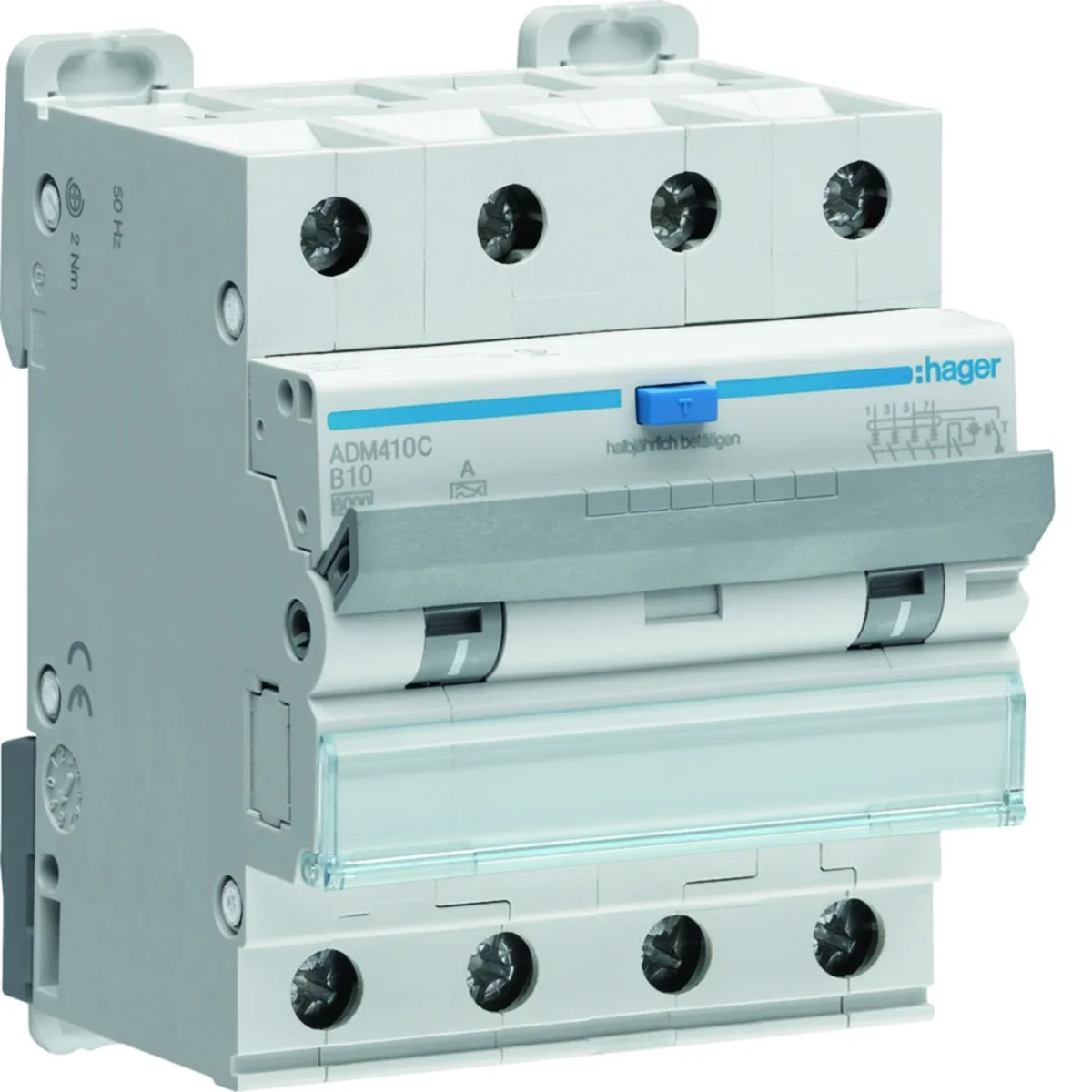

RCBO RCBO with overcurrent element 4P 6kA B 10A/30mA type A ADM410C
local index:
ARB058HAGE
Catalog No:
ADM410C
EAN code:
3250611020202
Price:
246,86 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Residual current circuit breaker with RCBO:
- easy installation of several circuit breakers next to each other (in one row),
- combined 4-pole residual current circuit breaker with overcurrent module - double Quick-Snap latches located on the top and bottom of the device,
- clear view of the on/off position,
- Bi-Connect terminals for connecting comb busbars,< /li>
- description field with a protective flap,
- protective and insulating overlays to protect against making a mistake,
- device width: 4 modules (saving space in the switchgear),
- energy limit class 3,
- Rated frequency [Hz] 50 Hz,
- sensitivity 30 mA, type A.
Technical data
-
Characteristicb
-
Depth [mm]70
-
Tightening torque [Nm]2
-
Differential current [mA]thirty
-
FamilyRCBO
-
power loss [W]9.7
-
Width [mm]71
-
Electrical endurance (number of cycles)2000
-
Operating temperature range [°C]from -25 to 40
-
Rated switching voltage [V]230/400
-
Rated short-circuit breaking capacity Icn [kA]6
-
Max/min value of the AC current of the protection activation3/5 In
-
Input terminal capacitance (wire) [mm²]1/25
-
Output terminal capacitance (wire) [mm²]1/25
-
Rated current at 30°C [A]10
-
Rated current at 45°C [A]9.2
-
Rated current at 55°C [A]8.7
-
Operating short-circuit breaking current Ics [kA]6
-
Supply voltage typeAC
-
Rated current correction factor for 2 devices installed side by side0.8
-
Number of protected poles4
-
Rated frequency [Hz]50
-
Number of poles4
-
Rated insulation voltage [V]500
-
Rated current [A]10
-
Level of securityIP20
-
Power loss per pole [W]2.4
-
Height [mm]84
-
Mechanical durability (number of cycles)4000
-
Rated short-circuit breaking capacity [kA]6
-
Rated impulse voltage [kV]4
-
Number of modules4
-
Input terminal capacity (cord) [mm²]1/16
-
Output terminal capacity (cord) [mm²]1/16
-
Rated current at 20°C [A]10.5
-
Rated current at 40°C [A]9.5
-
Rated current at 50°C [A]9
-
Rated current at 60°C [A]8.4
-
storage temperature [°C]from -55 to 70
-
RCD typeAND
-
Rated current correction factor for 3 devices installed side by side0.8
-
PKWIU27.12.22.0
Other technical data
-
Number of poles (total)4
-
Rated voltage400 V
-
Rated impulse withstand voltage Uimp4 kV
-
Rated fault current0.03 A
-
Current limiting class3
-
Disconnection characteristicUndelayed
-
Voltage typeAC
-
Release characteristicB
-
With interlocking deviceYes
-
Pollution degree2
-
Width in number of modular spacings4
-
Anti-nuisance tripping versionNo
-
Connectable conductor cross section solid-core1 ... 25 mm²
-
Number of protected poles4
-
Rated insulation voltage Ui500 V
-
Rated current10 A
-
Leakage current typeA
-
Rated short-circuit breaking capacity Icn according to EN 61009-16 kA
-
Surge current capacity3 kA
-
Frequency50 Hz
-
Concurrently switching neutral conductorNo
-
Over voltage category3
-
Ambient temperature during operating-25 ... 40 °C
-
Built-in depth70 mm
-
Degree of protection (IP)IP20
-
Connectable conductor cross section multi-wired1 ... 16 mm²
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
E-mail
-
Tax identification number6460015532
-
GLN5900009931532
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 33 pcs. | 792 pcs. |
| Weight (kg) | 0,415 | 0,427 | 14,631 | 335,808 |
| Width (m) | 0,071 | 0,080 | 0,318 | 0,800 |
| Length (m) | 0,073 | 0,074 | 0,234 | 1,086 |
| Depth (m) | 0,092 | 0,102 | 0,370 | 1,200 |
