RCBO RCBO with overcurrent element 1P+N 6kA C 6A/300mA Type A AFA956D

Name: RCBO RCBO with overcurrent element 1P+N 6kA C 6A/300mA Type A
Brand: HAGER
SKU: ARB064HAGE
Price: 680.19 PLN
Availability: OutOfStock

Índice local:

ARB064HAGE

Número de catálogo:

AFA956D

Código EAN:

3250611063865

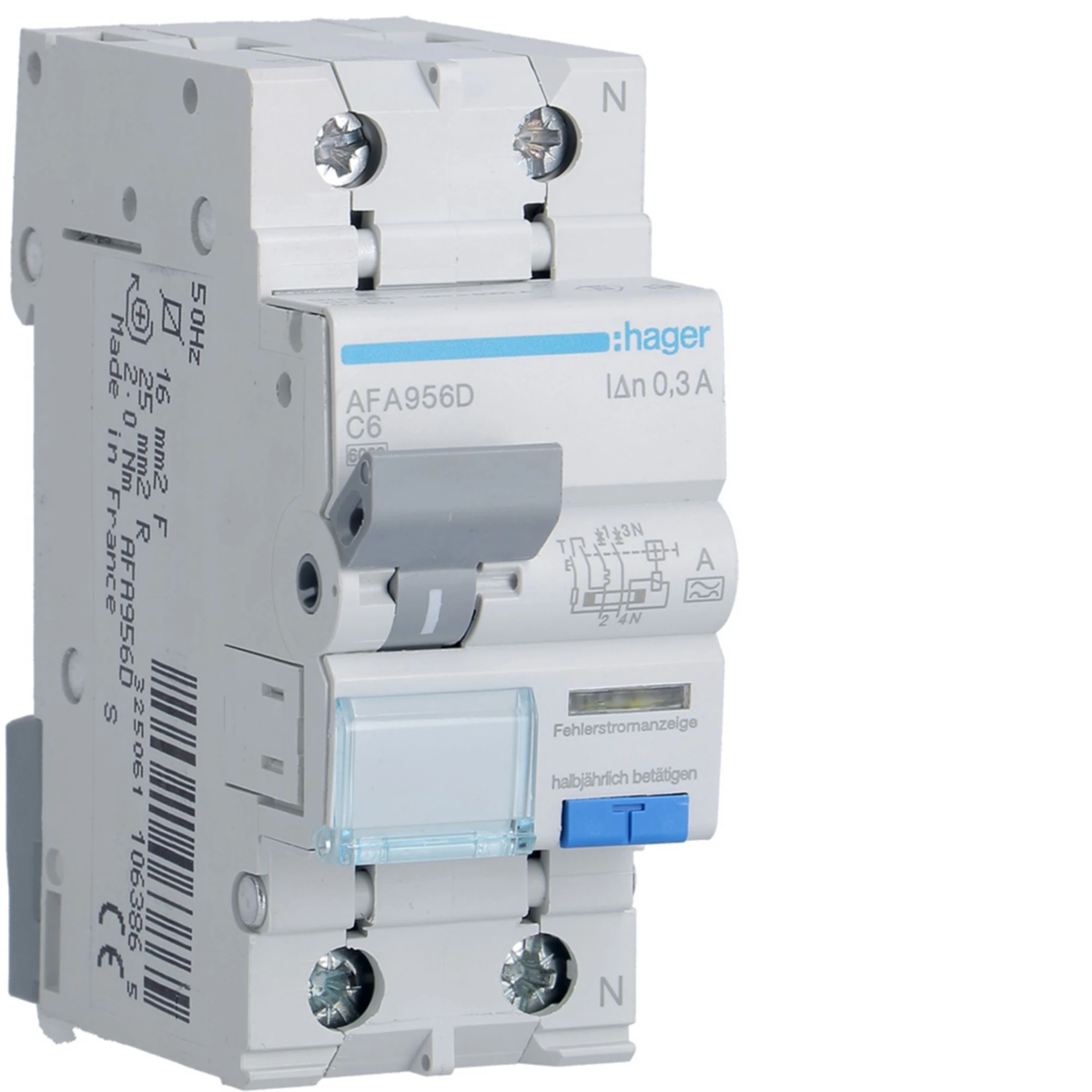

RCBO RCBO with overcurrent element 1P+N 6kA C 6A/300mA Type A

Haga clic en la foto para ampliar

Fabricante: HAGER

Characteristic: c

Rated frequency [Hz]: 50

Depth [mm]: 68

Ver descripción completa

Precio:

680,19 zł

gross / uds.

(IVA incluido 23%)

Fuera de stock

Añadir a solicitud de presupuesto

Imprimir

Pregunta por el producto

Descripción del producto Datos técnicos Detalles del fabricante Archivos para descargar

Descripción del producto

RCBO RCBO:

1P+N,
sensitive to sinusoidal alternating and pulsating DC residual currents ( A),
short circuit capacity Icn = 6000 A,
optical residual current trip indicator,
optical main contacts position indicator,
descriptive field with a protective flap.

Datos técnicos

Characteristic

c
Depth [mm]

68
Tightening torque [Nm]

1.3
Differential current [mA]

300
Family

RCBO
power loss [W]

2.2
Width [mm]

35
Height [mm]

83
Mechanical durability (number of cycles)

2000
Rated switching voltage [V]

240
Rated short-circuit breaking capacity Icn [kA]

6
Max/min value of the AC current of the protection activation

5/10 In
Ultimate short-circuit breaking capacity Icu for 240V [kA]

6
Rated current at 30°C [A]

6
Rated current at 45°C [A]

5.7
Rated current at 55°C [A]

5.5
storage temperature [°C]

from -25 to 70
Rated current correction factor for 2 devices installed side by side

1
Rated surge voltage [V]

4000
Wire cross-section (cord) [mm²]

1 - 16
PKWIU

27.12.22.0

Rated frequency [Hz]

50
Number of poles

2
Rated insulation voltage [V]

500
Rated current [A]

6
Level of security

IP20
Power loss per pole [W]

1.8
Connection type

With a screw
Electrical endurance (number of cycles)

2000
Operating temperature range [°C]

from -25 to 40
Short-circuit breaking capacity [kA]

6
Number of modules

2
Ultimate short-circuit breaking capacity Icu for 230V [kA]

6
Rated current at 20°C [A]

6.2
Rated current at 40°C [A]

5.8
Rated current at 50°C [A]

5.6
Rated current at 60°C [A]

5.4
RCD type

AND
Rated current correction factor for 3 devices installed side by side

0.95
Number of protected poles

1
Conductor cross-section (wire) [mm²]

1 - 25

Otros datos técnicos

Number of poles (total)

2
Rated voltage

240 V
Rated impulse withstand voltage Uimp

4 kV
Rated fault current

0.3 A
Current limiting class

3
Rated short-circuit breaking capacity Icn according to EN 61009-1

6 kA
Surge current capacity

0.25 kA
Frequency

50 Hz
Concurrently switching neutral conductor

Yes
Over voltage category

3
Ambient temperature during operating

-25 ... 40 °C
Built-in depth

68 mm
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

1 ... 16 mm²

Number of protected poles

1
Rated insulation voltage Ui

500 V
Rated current

6 A
Leakage current type

A
Rated short-circuit breaking capacity according to IEC 60947-2

6 kA
Disconnection characteristic

Undelayed
Voltage type

AC
Release characteristic

C
With interlocking device

No
Pollution degree

2
Width in number of modular spacings

2
Anti-nuisance tripping version

No
Connectable conductor cross section solid-core

1 ... 25 mm²

Detalles del fabricante

Fabricante

Hager Electro S.A.S.
Dirección

FR 67215 Obernai 123 boulevard d’Europe Francja
Email

wsparcie.klienta@hager.com

Archivos para descargar

Descargar todos los archivos

PEP_ADA513D_HAGER_HAGE-00645-V01.pdf

DECLARATION_24_1266_12_24.pdf

RoHS-declaration-AFA956D.pdf

ID1_RCBO_N3D_6LE008003Ab.pdf

AFA956D.pdf
