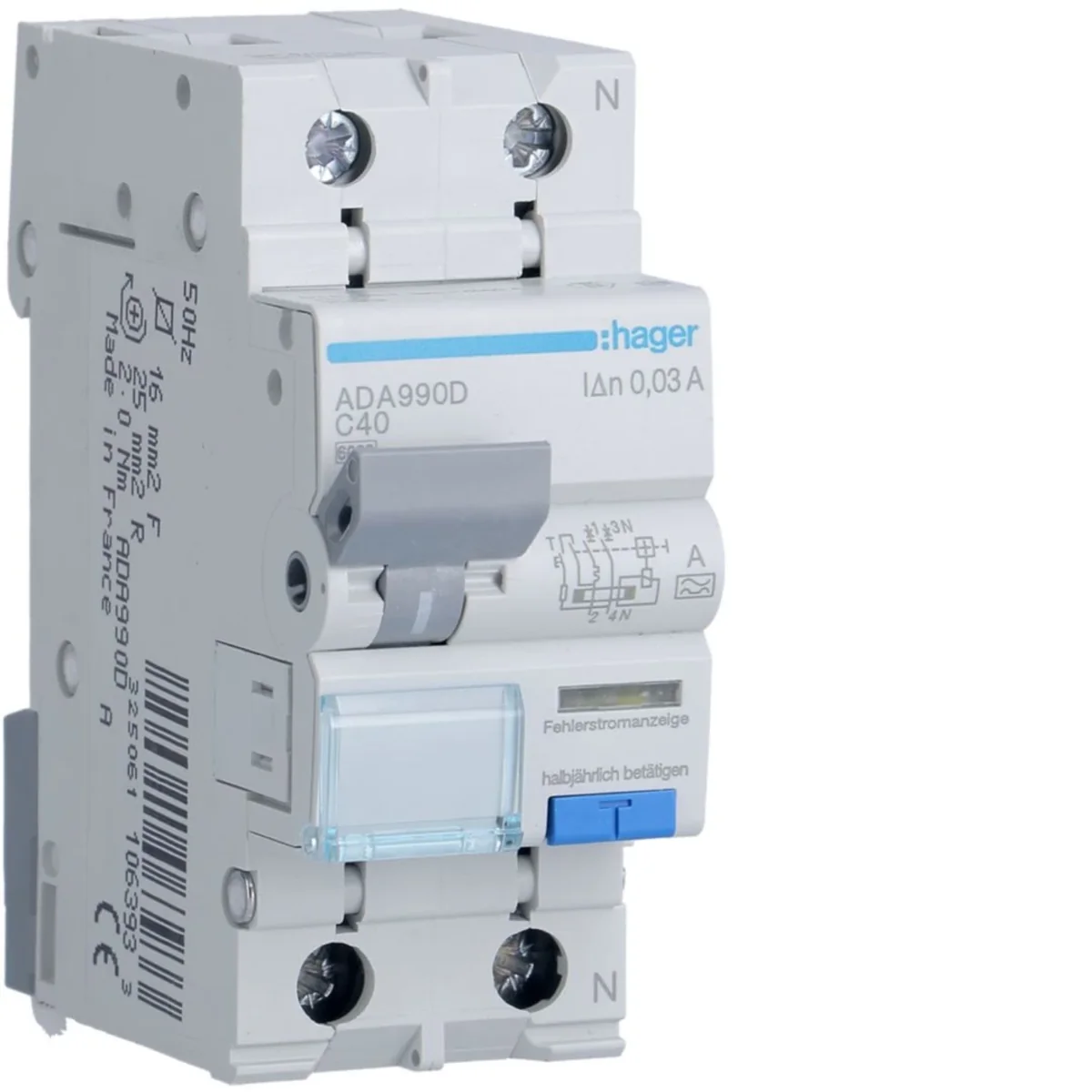

RCBO RCBO with overcurrent element 1P+N 6kA C 40A/30mA type A ADA990D
local index:
ARB043HAGE
Catalog No:
ADA990D
EAN code:
3250611063933
Price:
101,27 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
RCBO RCBO:
- 2-pole (1P+N),
- sinusoidal alternating and pulsating DC component (A),
- short-circuit capacity Icn = 6000 A, in accordance with PN-EN61009-1,
- optical residual current trip indicator,
- optical position indicator main contacts,
- description field with a protective flap.
Technical data
-
Characteristicc
-
Depth [mm]68
-
Tightening torque [Nm]1.3
-
Differential current [mA]thirty
-
FamilyRCBO
-
power loss [W]11.1
-
Width [mm]35
-
Height [mm]83
-
Mechanical durability (number of cycles)1000
-
Rated switching voltage [V]240
-
Rated short-circuit breaking capacity Icn [kA]6
-
Max/min value of the AC current of the protection activation5/10 In
-
Ultimate short-circuit breaking capacity Icu for 240V [kA]6
-
Rated current at 30°C [A]40
-
Rated current at 45°C [A]38.2
-
Rated current at 55°C [A]36.9
-
storage temperature [°C]from -25 to 70
-
Rated current correction factor for 2 devices installed side by side1
-
Rated surge voltage [V]4000
-
Wire cross-section (cord) [mm²]1 - 16
-
PKWIU27.12.22.0
-
Rated frequency [Hz]50
-
Number of poles2
-
Rated insulation voltage [V]500
-
Rated current [A]40
-
Level of securityIP20
-
Power loss per pole [W]6.2
-
Connection typeWith a screw
-
Electrical endurance (number of cycles)2000
-
Operating temperature range [°C]from -25 to 40
-
Short-circuit breaking capacity [kA]6
-
Number of modules2
-
Ultimate short-circuit breaking capacity Icu for 230V [kA]6
-
Rated current at 20°C [A]41.3
-
Rated current at 40°C [A]38.8
-
Rated current at 50°C [A]37.5
-
Rated current at 60°C [A]36.2
-
RCD typeAND
-
Rated current correction factor for 3 devices installed side by side0.95
-
Number of protected poles1
-
Conductor cross-section (wire) [mm²]1 - 25
Other technical data
-
Number of poles (total)2
-
Rated voltage240 V
-
Rated impulse withstand voltage Uimp4 kV
-
Rated fault current0.03 A
-
Current limiting class3
-
Rated short-circuit breaking capacity Icn according to EN 61009-16 kA
-
Surge current capacity0.25 kA
-
Frequency50 Hz
-
Concurrently switching neutral conductorYes
-
Over voltage category3
-
Ambient temperature during operating-25 ... 40 °C
-
Built-in depth68 mm
-
Degree of protection (IP)IP20
-
Connectable conductor cross section multi-wired1 ... 16 mm²
-
Number of protected poles1
-
Rated insulation voltage Ui500 V
-
Rated current40 A
-
Leakage current typeA
-
Rated short-circuit breaking capacity according to IEC 60947-26 kA
-
Disconnection characteristicUndelayed
-
Voltage typeAC
-
Release characteristicC
-
With interlocking deviceNo
-
Pollution degree2
-
Width in number of modular spacings2
-
Anti-nuisance tripping versionNo
-
Connectable conductor cross section solid-core1 ... 25 mm²
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 60 pcs. | 1440 pcs. |
| Weight (kg) | 0,235 | 0,246 | 15,300 | 367,200 |
| Width (m) | 0,035 | 0,080 | 0,318 | 0,800 |
| Length (m) | 0,094 | 0,041 | 0,216 | 1,014 |
| Depth (m) | 0,070 | 0,097 | 0,370 | 1,200 |
