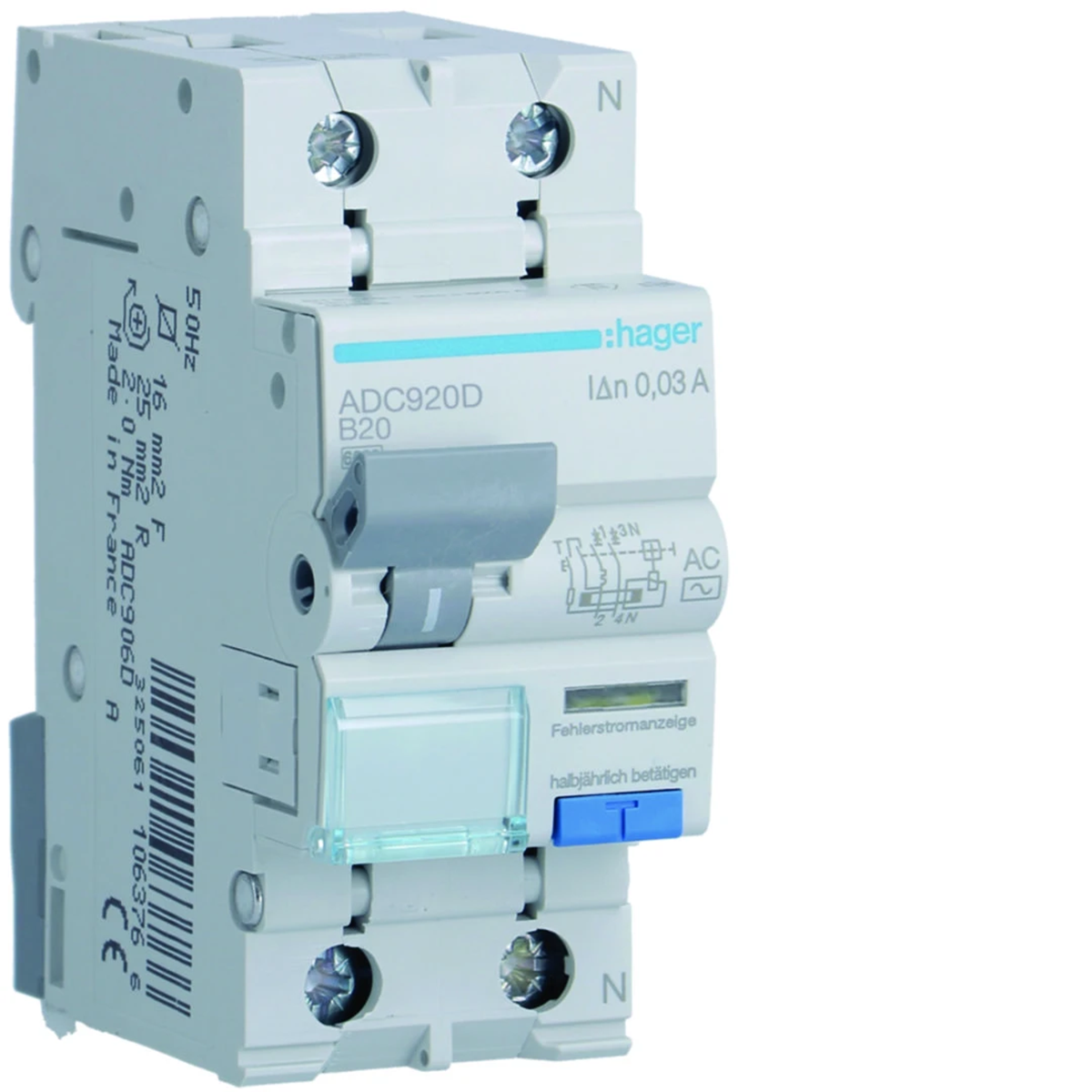

RCBO RCBO with overcurrent element 1P+N 6kA B 20A/30mA Type AC ADC920D
local index:
ARB510HAGE
Catalog No:
ADC920D
EAN code:
3250611063773
Manufacturer:
HAGER
Level of security: IP20
Price:
66,53 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
RCBO RCBO with overcurrent element 1P+N 6kA B 20A/30mA Type AC
Technical data
-
Level of securityIP20
-
PKWIU27.12.22.0
Other technical data
-
Number of poles (total)2
-
Rated voltage240 V
-
Rated impulse withstand voltage Uimp4 kV
-
Rated fault current0.03 A
-
Current limiting class3
-
Rated short-circuit breaking capacity Icn according to EN 61009-16 kA
-
Surge current capacity0.25 kA
-
Frequency50 Hz
-
Concurrently switching neutral conductorYes
-
Over voltage category3
-
Ambient temperature during operating-25 ... 40 °C
-
Built-in depth68 mm
-
Degree of protection (IP)IP20
-
Connectable conductor cross section multi-wired1 ... 16 mm²
-
Number of protected poles1
-
Rated insulation voltage Ui500 V
-
Rated current20 A
-
Leakage current typeAC
-
Rated short-circuit breaking capacity according to IEC 60947-26 kA
-
Disconnection characteristicUndelayed
-
Voltage typeAC
-
Release characteristicB
-
With interlocking deviceNo
-
Pollution degree2
-
Width in number of modular spacings2
-
Anti-nuisance tripping versionNo
-
Connectable conductor cross section solid-core1 ... 25 mm²
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 60 pcs. | 1440 pcs. |
| Weight (kg) | 0,224 | 0,228 | 13,916 | 356,984 |
| Width (m) | 0,035 | 0,080 | 0,318 | 0,800 |
| Length (m) | 0,085 | 0,041 | 0,211 | 0,994 |
| Depth (m) | 0,071 | 0,099 | 0,364 | 1,200 |
