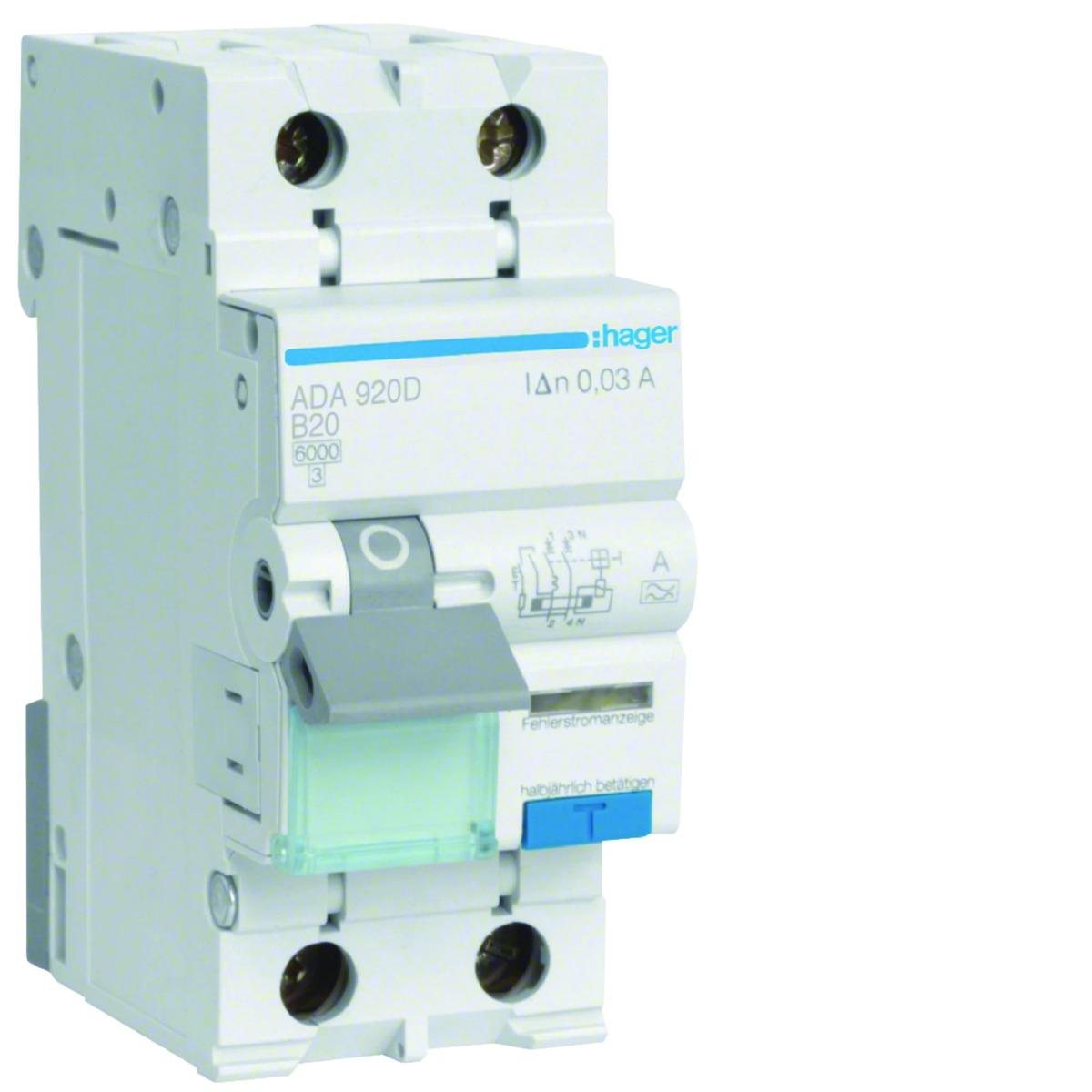

RCBO RCBO with overcurrent element 1P+N 6kA B 20A/30mA type A ADA920D

local index:
ARP004HAGE
Catalog No:
ADA920D
EAN code:
3250611010654
Manufacturer: HAGER
Characteristic: b
Rated frequency [Hz]: 50
Depth [mm]: 68
Price:
90,36 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

RCBO RCBO:

  • 2-pole (1P+N),
  • sinusoidal alternating and pulsating DC component (A),
  • short-circuit capacity Icn = 6000 A, in accordance with PN-EN61009-1,
  • optical residual current trip indicator,
  • optical position indicator main contacts,
  • description field with a protective flap.

Technical data

  • Characteristic
    b
  • Depth [mm]
    68
  • Number of poles
    2
  • Rated voltage [V]
    230
  • Differential current [mA]
    thirty
  • Family
    RCBO
  • Width [mm]
    35
  • Trigger type
    b
  • Height [mm]
    83
  • Mechanical durability (number of cycles)
    2000
  • Rated impulse voltage [kV]
    4
  • Number of modules
    2
  • PKWIU
    27.12.23.0
  • Rated frequency [Hz]
    50
  • Number of modules
    2
  • Tightening torque [Nm]
    2.1
  • Rated insulation voltage [V]
    500
  • Rated current [A]
    20
  • Power dissipation [W]
    6.6
  • Working temperature [°C]
    -25 to 40
  • Height
    83
  • Electrical endurance (number of cycles)
    2000
  • Rated short-circuit breaking capacity [kA]
    6
  • Connection type
    With a screw
  • AC rated voltage [V]
    240

Other technical data

  • Number of poles (total)
    2
  • Rated voltage
    240 V
  • Rated impulse withstand voltage Uimp
    4 kV
  • Rated fault current
    0.03 A
  • Current limiting class
    3
  • Rated short-circuit breaking capacity Icn according to EN 61009-1
    6 kA
  • Surge current capacity
    0.25 kA
  • Frequency
    50 Hz
  • Concurrently switching neutral conductor
    Yes
  • Over voltage category
    3
  • Ambient temperature during operating
    -25 ... 40 °C
  • Built-in depth
    68 mm
  • Degree of protection (IP)
    IP20
  • Connectable conductor cross section multi-wired
    1 ... 16 mm²
  • Number of protected poles
    1
  • Rated insulation voltage Ui
    500 V
  • Rated current
    20 A
  • Leakage current type
    A
  • Rated short-circuit breaking capacity according to IEC 60947-2
    6 kA
  • Disconnection characteristic
    Undelayed
  • Voltage type
    AC
  • Release characteristic
    B
  • With interlocking device
    Yes
  • Pollution degree
    2
  • Width in number of modular spacings
    2
  • Anti-nuisance tripping version
    No
  • Connectable conductor cross section solid-core
    1 ... 25 mm²

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 60 pcs. 1440 pcs.
Weight (kg) 0,217 0,225 14,045 360,080
Width (m) 0,035 0,080 0,310 0,800
Length (m) 0,094 0,041 0,210 0,990
Depth (m) 0,070 0,099 0,360 1,200
